Summary of Contents for AirLive WLAN-64GM

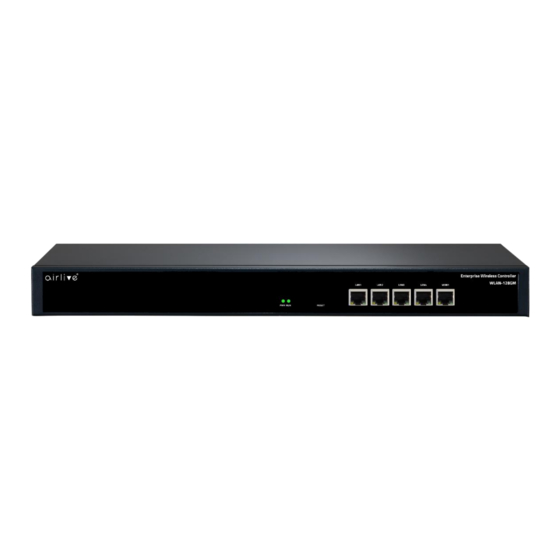

- Page 1 WLAN-64GM Enterprise Wireless Controller & Gateway WLAN-128GM Enterprise Wireless Controller & Gateway Ver. 1.0...
-
Page 2: Chapter 1. Product Introduction
Port Description. Port Description 12V DC 12V DC port for WLAN-64GM only WAN port connecting to Modem or Router LAN 1~4 LAN port connecting to the network equipment. To restore to the factory default setting, press and hold the Reset Button for Reset about 10 seconds, and then release it. - Page 3 Connect the Wireless Controller via the WAN port to an Internet connection via a Modem or Router. To control the Access Points connect them direct to the LAN ports of the controller via a (PoE) Switch. The AirLive TOP-12AC, TOP-18AX and inWall-U618 as well as several outdoor CPE models are support by the Wireless controller.
-
Page 4: Chapter 3. Quick Installation Guide
QIG for WLAN-64GM, WLAN-128GM Chapter 3. Quick Installation Guide WLAN-64GM, WLAN-128GM , Web login Management. This chapter will show you how to configure the basic functions of your Wireless Controller within minutes. TCP/IP Configuration. The default IP address of the Wireless Controller is 192.168.10.1. By default, the Wireless Controller has DHCP turned on and the device will give out IP addresses directly when a computer is connected to the LAN ports. - Page 5 QIG for WLAN-64GM, WLAN-128GM Wizard Wireless The settings which are entered in this field will be used as the default template for all the Access Points which will be connected to the Wireless Controller. Select Enable or Disable the wireless status, Enter your SSID name and wireless encryption.
-
Page 6: Chapter 4. Configure The Wireless Controller
QIG for WLAN-64GM, WLAN-128GM Starting Setup in the Web UI. It is easy to configure and manage the Wireless Controller with a web browser. Input 192.168.10.1 into the browser ( When you changed the default IP address of the Wireless Controller in the Wizard, please use your new IP Address), When the Wireless Controller has been setup using the Wizard enter your own new Username and Password. - Page 7 To search a selected Access Point enter it’s IP or MAC Address in the search field and the device will be displayed. More information For more information on the detailed settings of the AirLive Wireless Controllers please see the Userguide. The Userguide can be downloaded from the AirLive website...
