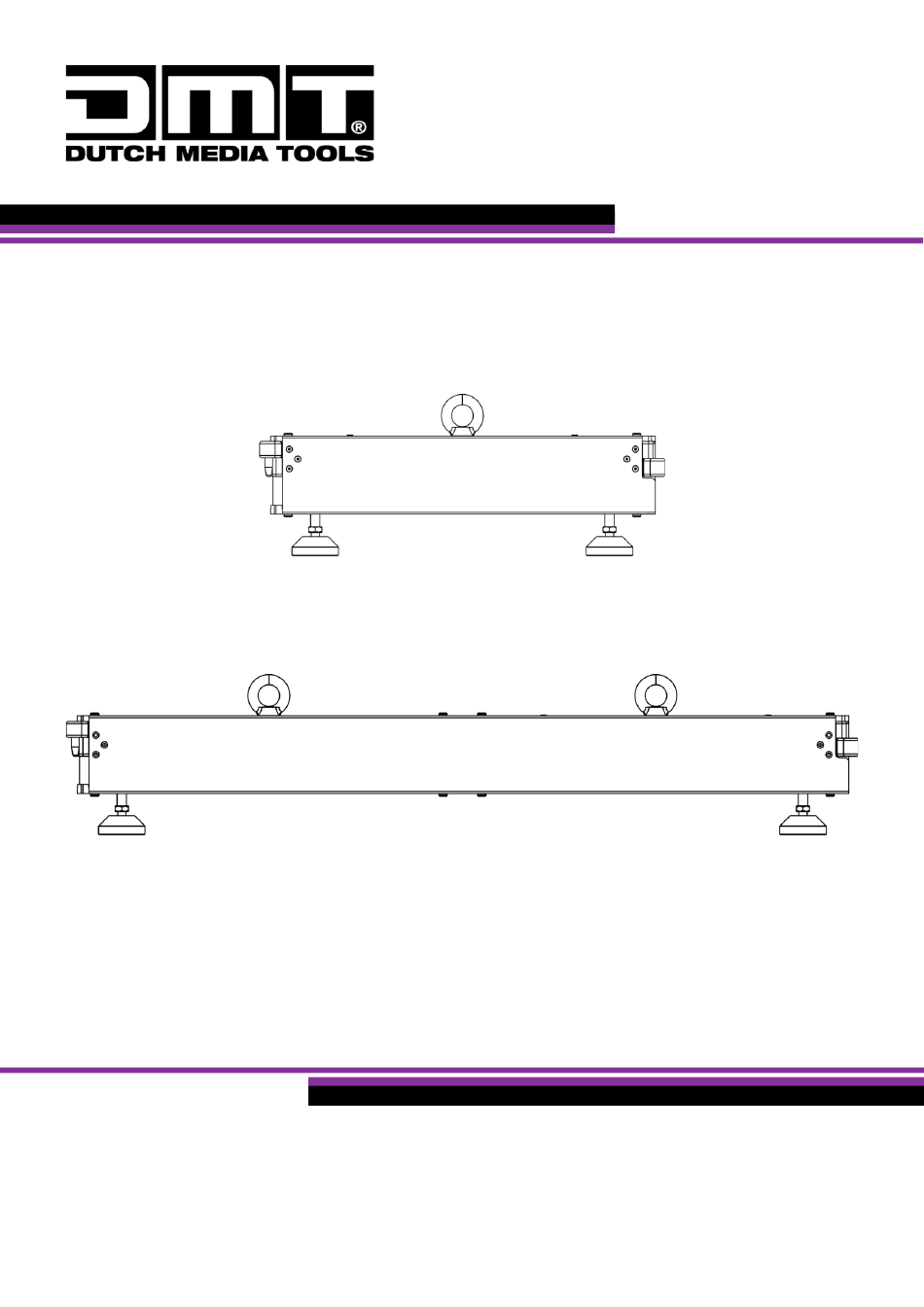

- Page 1 USER MANUAL ENGLISH Alpha Series Single Rigging bar / Double Rigging bar Product code: 101820/101821 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 Alpha Series Single Rigging Bar / Double Rigging Bar Preface Thank you for purchasing this DMT product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
Alpha Series Single Rigging Bar / Double Rigging Bar Table of contents Introduction ................................3 Before Using the Product ..........................3 Intended Use ............................... 3 Text Conventions ..............................3 Symbols and Signal Words ..........................3 Symbols on the Information Label ........................4 Safety .................................. -
Page 4: Introduction
Fig. 01 Intended Use This device is intended for professional use as a rigging bar for the DMT Alpha Series A3.9i LED screens. Any other use, not mentioned under intended use, is regarded as non-intended and incorrect use. Text Conventions... -
Page 5: Symbols On The Information Label
This device shall be used only for the purposes it is designed for. This device is intended for professional use as a rigging bar for the DMT Alpha Series A3.9i. Any incorrect use may lead to hazardous situations and result in injuries and material damage. -
Page 6: Requirements For The User
Alpha Series Single Rigging Bar / Double Rigging Bar Attention Before every use, examine the device visually for any defects ● Follow the inspection schedule established for the site. ● Examine the device for damage, cracks and corrosion. If any fault is found, mark the device clearly and remove it from service. -
Page 7: Description Of The Device
Description of the Device With the DMT Single or Double Rigging Bar you can securely hang a maximum of 18 DMT Alpha Series A3.9i vertically. You can either install the rigging bar in a hanging installation (LED screen below the rigging bar) or standing installation (LED screen on top of the rigging bar). -
Page 8: Back View
Opening for pin (for connecting multiple rigging bars) 2x adjustable foot 2x / 4x locking mechanism (for attaching an Alpha series 3.9i LED screen, standing installation) see 4.6 Working of the Locking Mechanism on page 15. 2x M12 rigging eye Ø 28 mm... -
Page 9: Product Specifications
Alpha Series Single Rigging Bar / Double Rigging Bar Product Specifications Model: Alpha Series - Single Rigging Bar Alpha Series - Double Rigging Bar (101820) (101821) Physical: Dimensions: 497 x 70 x 100 mm (L x W x H) 997 x 70 x 100 mm (L x W x H) -
Page 10: Dimensions
Alpha Series Single Rigging Bar / Double Rigging Bar Dimensions 101820 Fig. 06 101821 Fig. 07 101820 + 101821 Fig. 08 Product code: 101820 / 101821... -
Page 11: Installation
Alpha Series Single Rigging Bar / Double Rigging Bar Installation Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. Installation must be carried out only by instructed or skilled persons. Follow all applicable European, national and local safety regulations concerning rigging and trussing. -
Page 12: Mounting Options
Alpha Series Single Rigging Bar / Double Rigging Bar Mounting Options CAUTION Restrict the access under the work area during rigging and/or derigging. You can mount the device in 3 different ways: Overhead mounting (LED screen below the rigging bar) ... -
Page 13: Lateral Mounting
Alpha Series Single Rigging Bar / Double Rigging Bar Lateral mounting You can connect the rigging bar laterally to a truss. You can use single tubes from the P-truss series (example: product code PP50025B). To mount the device to a P-truss you need the following items: ●... -
Page 14: Connecting Multiple Devices
You can create a curved setup with multiple devices. For more information see the manual of the Alpha series 3.9i LED screen (101810) The Alpha series 3.9i LED screen can be placed in a curved setup at -5˚, 5˚, and 10˚ angle, as shown in Fig. 21 and 22. -
Page 15: Working Load Limit
WARNING Do not hang more LED screens than the maximum allowed number. The device shall be used only with the Alpha Series A3.9i LED screens. The WLL (Working Load Limit) for the Single Rigging Bar (101820) is 200 kg. The WLL (Working Load Limit) for the Double Rigging Bar (101821) is 400 kg. -
Page 16: Working Of The Locking Mechanism
Each Alpha series 3.9i LED screen has 4 locking mechanisms: 2 on the top section and 2 on the left side. The locking mechanism (03) allows you to easily connect a rigging bar to a LED screen, a LED screen to a rigging bar or connect a LED screen to another LED screen. - Page 17 Alpha Series Single Rigging Bar / Double Rigging Bar Fig. 28 Product code: 101820 / 101821...
-
Page 18: Installation Of A Led Screen To The Device
Installation of a LED Screen to the Device Minimum two persons are necessary for the installation of a LED screen to the device. You can install the Alpha series 3.9i LED screen to the device in 2 different ways: ●... - Page 19 Alpha Series Single Rigging Bar / Double Rigging Bar To attach a LED screen to the device, follow the steps below: Put a LED screen below the device and let the magnetic strip on top of the LED screen snap to the bottom of the device, as shown in Fig.
- Page 20 Alpha Series Single Rigging Bar / Double Rigging Bar Make sure that the pins are firmly locked in the fast-lock opening (06) on the bottom of the device, as shown in Fig. 34. Turn the lever (C) clockwise to tighten it to the device, as shown in Fig. 35 and 36.
-
Page 21: Standing Installation
Alpha Series Single Rigging Bar / Double Rigging Bar Standing Installation 101820 101821 Fig. 37 Fig. 38 To install a LED screen on top of the device, follow the steps below: Remove the rigging eye(s) (04) on top of the device, as shown in Fig. 39. - Page 22 Alpha Series Single Rigging Bar / Double Rigging Bar Turn the lever (C) counterclockwise. Push the left spring-loaded fast-lock (D) of the rigging bar upwards and turn it by 90˚ clockwise or counterclockwise, as shown in Fig. 42 and 43.
-
Page 23: Height Adjustment
Alpha Series Single Rigging Bar / Double Rigging Bar Make sure that the LED screen is leveled, as shown in Fig. 47. To level your setup, see 4.8. Height Adjustment, Fig. 48 and 49 on page 22. Fig. 46 Fig. 47 Height Adjustment You can adjust the distance between the surface and the rigging bar with the 2 adjustable feet (02). -
Page 24: Inspection And Maintenance
Alpha Series Single Rigging Bar / Double Rigging Bar Inspection and Maintenance Attention Inspection and maintenance may be carried out only by instructed or skilled persons. Service shall be carried out only by skilled persons. Inspection Attention Before every use, examine the device visually for any defects Regular and periodic inspections shall be carried out throughout the period of service of the device. -
Page 25: Deinstallation, Transportation And Storage
Alpha Series Single Rigging Bar / Double Rigging Bar Deinstallation, Transportation and Storage Instructions for Deinstallation WARNING Incorrect deinstallation can cause serious injuries and damage of property. ● Restrict the access under the working area during deinstallation. ● Always observe the national and site-specific regulations during deinstallation of the device. - Page 26 Alpha Series Single Rigging Bar / Double Rigging Bar Product code: 101820 / 101821...
- Page 27 Alpha Series Single Rigging Bar / Double Rigging Bar Product code: 101820 / 101821...
- Page 28 ©2022 DMT...
