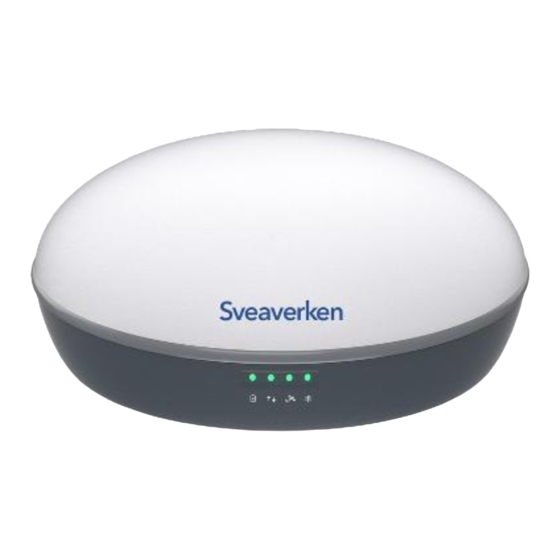

Svea GNSS Receiver User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Svea and is the answer not in the manual?

Questions and answers

Stan Mcbain
May 15, 2025

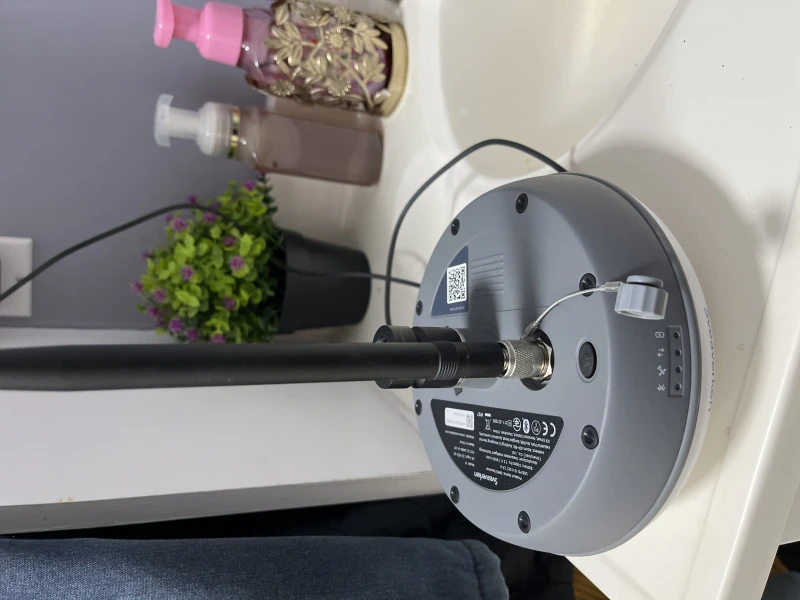

Does not charge, works well if plugged in to electricity, no light comes on when plugged in to charge the battery

User image 682537dc02d6e
0
1 comments:
Mr. Anderson
May 21, 2025

If the Sveaverken Svea does not charge and shows no light when plugged in, the issue could be with the power connection through the Type-C interface or the external power supply. It may also indicate a faulty cable, connector, or that the battery is completely unresponsive.

This answer is automatically generated

0

Summary of Contents for Sveaverken Svea

  • Page 1 Svea GNSS Receiver User Manual...

  • Page 3: Copyright Notice

    Svea GNSS Receiver User Manual Copyright Notice: Sveaverken reserves the copyright for this manual and all contents herein. No part of this manual may be reproduced, extracted, reused, and/or reprinted in any form or by any means without the prior written permission of Sveaverken.

  • Page 4: Safety Instructions

    Safety Instructions Before using this product, make sure that you have read and understood all the operation instructions and precautions in the Svea GNSS Receiver User Manual. Operation Environment: 1. Keep away from people, animals, electrical wires, tall buildings, airports, signal towers, and other obstacles, to avoid interference to GNSS signals and ensure the positioning accuracy.
  • Page 5 Svea GNSS Receiver User Manual 4. Use the regulated power supplies accepted by Sveaverkan, and strictly follow the rated voltages, to prevent damaging the radio, the field controller, and the receiver. 5. During charging, keep away from fire sources such as flammables and explosives, to avoid fire and other serious consequences.
  • Page 6 Svea GNSS Receiver User Manual Contents ©2022 Sveaverken. All rights reserved.

  • Page 7: About This Document

    Svea GNSS Receiver User Manual 1 About This Document 1.1 Introduction SVEA V1 GNSS receiver integrates high-precision GNSS motherboard, data link, Bluetooth and other modules, with delicate and simple structure, small and lightweight. V1 high precision receiver fully supports BDS, GPS, GLONASS, Galileo...
  • Page 8 Svea GNSS Receiver User Manual Name Description Press and hold for 1 to 3 seconds until the indicator turns solid green, and release the button to turn on the receiver. Press and hold for 5 seconds to Power button turn off the receiver.
  • Page 9 Svea GNSS Receiver User Manual Description Green: battery level of 60%-100%; Power Indicator blue: battery level of 30%-60%; (red, blue, and Red: low battery (<30%); green) Charging: flashes red during charging, and turns solid green after charging is complete. Off: The base station does not transmit differential data, or does not start static collection.
  • Page 10 Svea GNSS Receiver User Manual Description Off: no satellite tracking; Solid green: fixed solution; Satellite Flashes green: positioning but not in Indicator the fixed solution status; (red and Flashes red: satellite tracking but not green) positioning; Flashes green and red alternatively: GNSS board exception.
  • Page 11 Svea GNSS Receiver User Manual Caution Burn Hazard Coverings on the surface of the receiver or the external radio may affect heat dissipation. Reduce or remove such coverings. Maintain good ventilation. Danger Lightning Strikes Usage of the antenna and the pole in thunderstorms.
  • Page 12 Svea GNSS Receiver User Manual 2 Operation Instructions 2.1 Overview This manual describes the main workflow for the first time use of the product. 2.2 Workflow Setup → Establishing the Connection → Set the base station. 2.2.1 Setup 2.2.1.1 Setting up the External Radio...
  • Page 13 Svea GNSS Receiver User Manual Name Purpose Radio antenna External radio antenna. Tripod Mount the radio antenna on it. Receiver Receive satellite signals. Radio External radio. Power the receiver and the external radio. You are recommended to Battery purchase it separately due to transportation restrictions.
  • Page 14 Svea GNSS Receiver User Manual 2.2.1.2 Setting up the Inner Radio Mount the receiver on the tripod and fix the tripod on the ground. Note: The inner radio covers a range of 5 - 10 km and has high environmental requirements for the operation area.
  • Page 15 Svea GNSS Receiver User Manual 2.2.2 Working Mode Setting 2.2.2.1 Establishing the Connection Choose Communication. The options are Bluetooth connection and demo mode. Select Bluetooth, and tap the device name beginning with "GNSS" from Bluetooth Devices. Connected is displayed after the connection is established.
  • Page 16 Svea GNSS Receiver User Manual External Radio mode: Go to "Add" -> select "External Radio", enter the name, select "Diff Data" of the reference station to be connected, whether to check "Fixed Position" base station. 10 ©2022 Sveaverken. All rights reserved.
  • Page 17 Svea GNSS Receiver User Manual 2.3 Status Bar 1. Receiver status. It can be one of the following: Unknown: The receiver is not connected. Ex Radio: The receiver is set to the base station mode and uses the external radio for data transmission.
  • Page 18 Svea GNSS Receiver User Manual 3 Appendix 3.1 Specifications GNSS Receiver GPS: L1, L1C/A, L2C, L2P, L5 BDS-2: B1I, B2I, B3I BDS-3: B1I, B3I, B1C, B2a, B2b GLONASS: G1, G2, G3* Galileo: E1, E5a, E5b, E6C*, Signal tracking AltBOC* QZSS: L1, L2C, L5, L1C*, L1-SALF...
  • Page 19 Svea GNSS Receiver User Manual GNSS Receiver Channels Single-point positioning (RMS): horizontal 1.5 m, vertical 3 m; Static differential (RMS): horizontal ± (2.5+1*10-6*D) mm, vertical ± (5.0+1*10-6*D) GNSS positioning D refers to baseline length, accuracy unit: km. RTK (RMS): horizontal ± (8+1*10-6*D) mm, vertical ±...
  • Page 20 Svea GNSS Receiver User Manual GNSS Receiver Power 0.5 W/1 W consumption Modulation type GMSK or 4FSK Built-in Radio 410 ~470 Frequency MHz/902~928MHz TRIMATLK, TRIMMARK3, Protocol TT450S.TRANSEOT Battery capacity 6500 mAh Battery Static measurement: 10 h Battery life dynamic measurement: 15 h USB PD: 12 V /2.5 A;...
  • Page 21 Svea GNSS Receiver User Manual Operating -30 ℃ - +60 ℃ temperature Ambient Storage -40 ℃ - +70 ℃ Environment temperature Humidity ©2022 Sveaverken. All rights reserved. 15...
  • Page 22 Intelligent Technology (Shenzhen) Co., Ltd. (SVEA), as a leading machinery and smart driving system manufacturer, provides the following warranty for each Svea GNSS receiver: 1. Warranty period: A warranty period of 1 year is granted to each user (including lifetime free software upgrade).
