INSTALLATION INSTRUCTIONS
Thin Dry
Hand Dryer
FAN7418 - White
FAN7419 - Black
FAN7420 - Brushed
TECHNICAL SPECIFICATIONS
Supply: 220 – 240V AC
Total Power: 1000 W
Air Speed: 100 m/s
Dry Time: 10-12 sec
Housing: Stainless Steel 304
Auto Shut Off: 60 sec
Sound Level: 74 dB(A)
Safety: Class I
IP Rating: IP23
IK Rating: IK08
Dimensions (A x B x C): 174 x 256 x 102 mm
Net Weight: 2.5 kg
PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING
THE INSTALLATION
IMPORTANT
!
This product is suitable for use only with a supply voltage of 230-240V AC, 50Hz.
All electrical work must be carried out in accordance with local and national electrical codes
as applicable.
We strongly recommend that this device is installed by a registered electrician.
Always switch power off prior to installation. A means of mains power isolation must be installed
in the circuit for the purpose of safe access for any internal cleaning, recalibration, or maintenance.
This device is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety. Young children
should be supervised to ensure that they do not play with the appliance.
Any changes or modifications made or attempted to this product, without the prior written approval of
the manufacturer, will void any and all stated warranties.

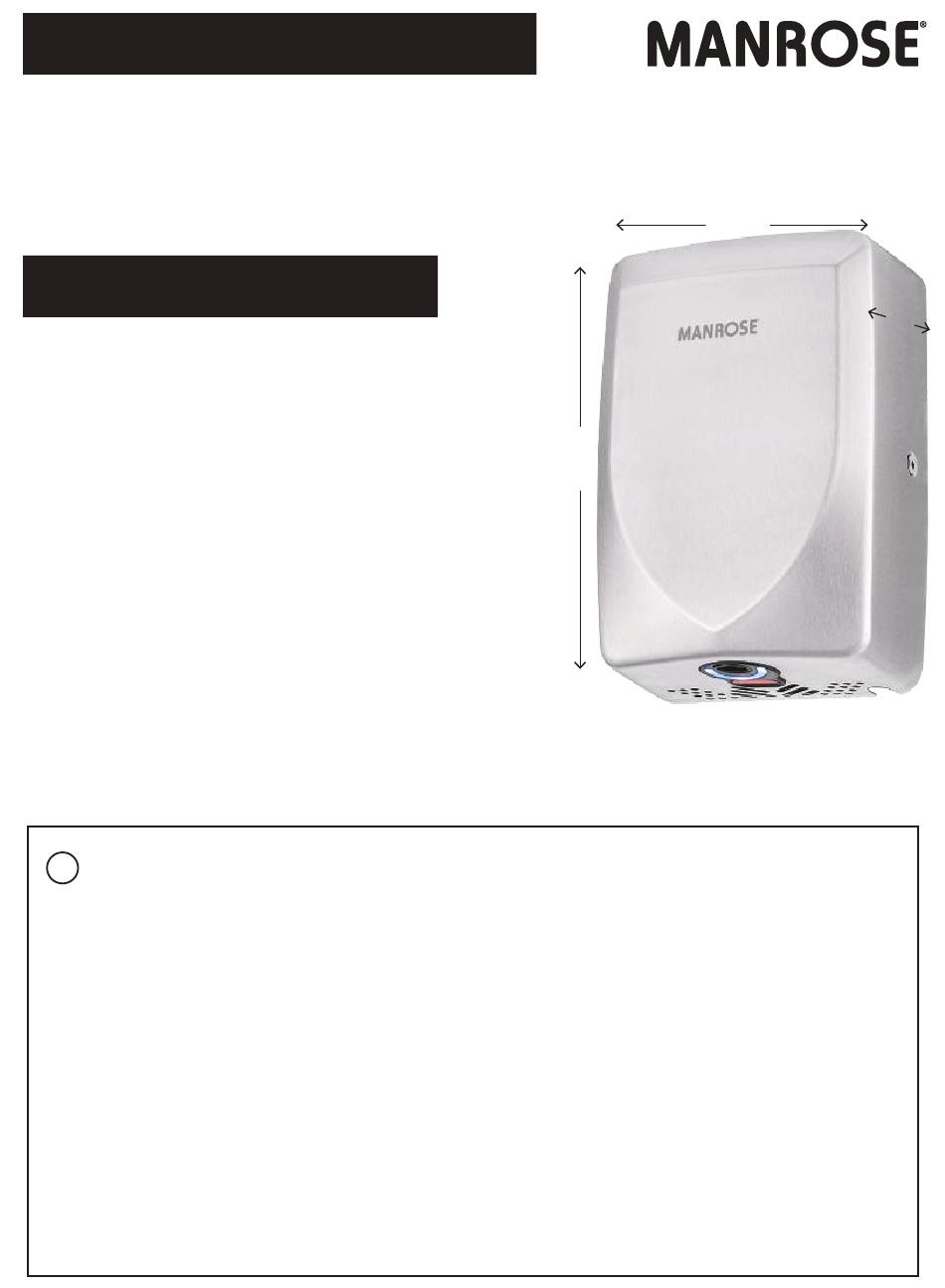

A
B
C
Advertisement
Summary of Contents for Manrose Thin Dry FAN7418
- Page 1 INSTALLATION INSTRUCTIONS Thin Dry Hand Dryer FAN7418 - White FAN7419 - Black FAN7420 - Brushed TECHNICAL SPECIFICATIONS Supply: 220 – 240V AC Total Power: 1000 W Air Speed: 100 m/s Dry Time: 10-12 sec Housing: Stainless Steel 304 Auto Shut Off: 60 sec Sound Level: 74 dB(A) Safety: Class I IP Rating: IP23...
- Page 2 BEFORE INSTALLATION See mounting template for complete reference to mounting heights and power knockout locations. Minimum Length: 300mm 220-240V: 6A It is recommended to avoid installation of dryer near high reflective objects (mirror, stainless steel washbasins, etc.) in order to avoid errant function of the presence sensor.
- Page 3 Fix base to the wall. Connect supply and ground wires to terminal block where indicated. Before replacing cover, there is a customised option to run the dryer heater on (1000 W) or heater off (600 W). The switch is clearly marked. Re-attach the cover to the base of the unit using the hex key provided.
- Page 4 MAINTENANCE Periodic cleaning of this unit is required to maintain optimum performance and reduce unnecessary wear on parts. Depending on usage, a regular maintenance programme with a frequency between 3-6 months is highly recommended. Detach the cover from the dryer and remove any dust or lint. Remove and discard the existing filter (the HEPA filter cannot be cleaned and reused).
