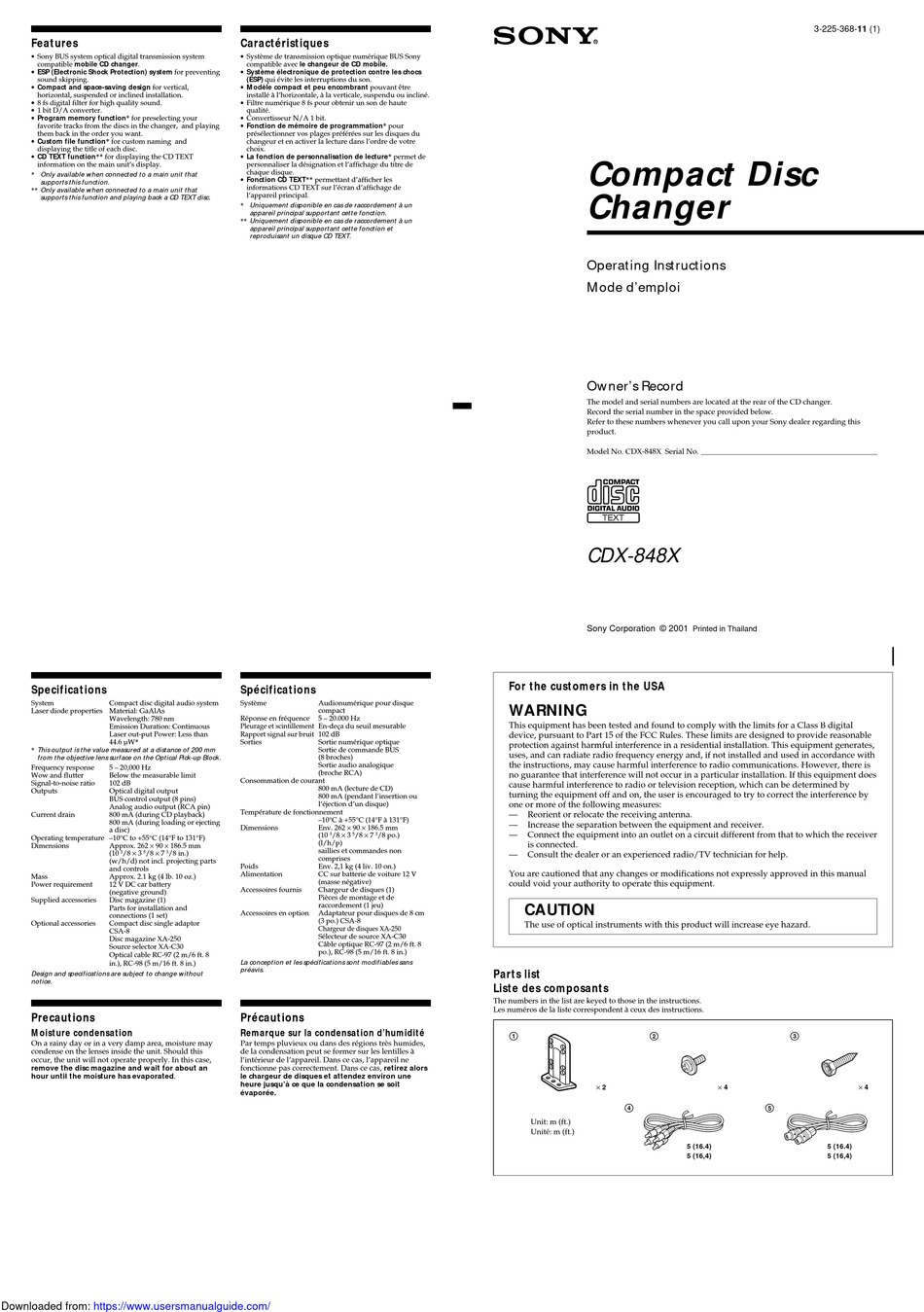

Sony CDX-848X Operating Instructions

Feat ures
• Sony BUS system optical digital transmission system
compatible mobile CD changer .
• ESP (Electronic Shock Protection) system for preventing
sound skipping.
• Compact and space-saving design for vertical,
horizontal, suspended or inclined installation.
• 8 fs digital filter for high quality sound.
• 1 bit D/A converter.
• Program memory function * for preselecting your
favorite tracks from the discs in the changer, and playing
them back in the order you want.
• Custom file function * for custom naming and
displaying the title of each disc.
• CD TEXT function ** for displaying the CD TEXT
information on the main unit's display.
* Only available w hen connect ed t o a main unit t hat
support s t his f unct ion.
** Only available w hen connect ed t o a main unit t hat
support s t his f unct ion and playing back a CD TEXT disc.
Specificat ions
System Compact disc digital audio system
Laser diode properties Material: GaAlAs
Wavelength: 780 nm
Emission Duration: Continuous
Laser out-put Power: Less than
44.6 µW*
* This out put is t he value measured at a dist ance of 200 mm
f rom t he object ive lens surf ace on t he Opt ical Pick-up Block.
Frequency response 5 – 20,000 Hz
Wow and flutter Below the measurable limit
Signal-to-noise ratio 102 dB
Outputs Optical digital output
BUS control output (8 pins)
Analog audio output (RCA pin)
Current drain 800 mA (during CD playback)
800 mA (during loading or ejecting
a disc)
Operating temperature –10°C to +55°C (14°F to 131°F)
Approx. 262 × 90 × 186.5 mm
Dimensions
/8 × 3 /8 × 7
(10 3 5 3 /8 in.)
(w/h/d) not incl. projecting parts
and controls
Mass Approx. 2.1 kg (4 lb. 10 oz.)
Power requirement 12 V DC car battery
(negative ground)
Supplied accessories Disc Magazine (1)
Parts for installation and
Connections (1 set)
Optional accessories Compact disc single adaptor
CSA-8
Disc magazine XA-250
Source selector XA-C30
Optical cable RC-97 (2 m/6 ft. 8
in.), RC-98 (5 m/16 ft. 8 in.)
Design and specif icat ions are subject t o change w it hout
not ice.
Precaut ions
M oist ure condensat ion
On a rainy day or in a very damp area, moisture may
condense on the lenses inside the unit. Should this
occur, the unit will not operate properly. In this case,
remove the disc magazine and w ait for about an
hour until the moisture has evaporated .
Downloaded from: https://www.usersmanualguide.com/
Caract érist iques
• Système de transmission optique numérique BUS Sony
compatible avec le changeur de CD mobile.
• Système électronique de protection contre les chocs
(ESP) qui évite les interruptions du son.
• M odèle compact et peu encombrant pouvant être
installé à l'horizontale, à la verticale, suspendu ou incliné.
• Filtre numérique 8 fs pour obtenir un son de haute
qualité.
• Convertisseur N/A 1 bit.
• Fonction de mémoire de programmation * pour
présélectionner vos plages préférées sur les disques du
changeur et en activer la lecture dans l'ordre de votre
choix.
• La fonction de personnalisation de lecture * permet de
personnaliser la désignation et l'affichage du titre de
chaque disque.
• Fonction CD TEXT ** permettant d'afficher les
informations CD TEXT sur l'écran d'affichage de
l'appareil principal.
* Uniquement disponible en cas de raccordement à un
appareil principal support ant cet t e f onct ion.
** Uniquement disponible en cas de raccordement à un
appareil principal support ant cet t e f onct ion et
reproduisant un disque CD TEXT.
Spécificat ions
Système Audionumérique pour disque
compact
Réponse en fréquence 5 – 20.000 Hz
Pleurage et scintillement En-deça du seuil mesurable
Rapport signal sur bruit 102 dB
Sorties Sortie numérique optique
Sortie de commande BUS
(8 broches)
Sortie audio analogique
(broche RCA)
Consommation de courant
800 mA (lecture de CD)
800 mA (pendant l'insertion ou
l'éjection d'un disque)
Température de fonctionnement
–10°C à +55°C (14°F à 131°F)
Env. 262 × 90 × 186.5 mm
Dimensions
/8 × 3 /8 × 7
(10 3 5 3 /8 po.)
(l/h/p)
saillies et commandes non
comprises
Poids Env. 2,1 kg (4 liv. 10 on.)
Alimentation CC sur batterie de voiture 12 V
(masse négative)
Accessoires fournis Chargeur de disques (1)
Pièces de montage et de
raccordement (1 jeu)
Accessoires en option Adaptateur pour disques de 8 cm
(3 po.) CSA-8
Chargeur de disques XA-250
Sélecteur de source XA-C30
Câble optique RC-97 (2 m/6 ft. 8
po.), RC-98 (5 m/16 ft. 8 in.)
La concept ion et les spécif icat ions sont modif iables sans
préavis.
Précaut ions
Rem arque sur la condensat ion d'hum idit é
Par temps pluvieux ou dans des régions très humides,
de la condensation peut se former sur les lentilles à
l'intérieur de l'appareil. Dans ce cas, l'appareil ne
fonctionne pas correctement. Dans ce cas, retirez alors
le chargeur de disques et attendez environ une
heure jusqu'à ce que la condensation se soit
évaporée.
Compact Disc
Changer
Operat ing Inst ruct ions
M ode d'emploi
Ow ner's Record
The model and serial numbers are located at the rear of the CD changer.
Record the serial number in the space provided below.
Refer to these numbers whenever you call upon your Sony dealer regarding this
product.
Model No. CDX-848X Serial No.
CDX-848X
Sony Corporation © 2001
For t he cust om ers in t he USA
WARNING
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
— Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that any changes or modifications not expressly approved in this manual
could void your authority to operate this equipment.
CAUTION
The use of optical instruments with this product will increase eye hazard.
Part s list
List e des com posant s
The numbers in the list are keyed to those in the instructions.
Les numéros de la liste correspondent à ceux des instructions.
1 2
× 2
4
Unit: m (ft.)
Unité: m (ft.)
3-225-368-11 (1)
Printed in Thailand
3
× 4 × 4
5
5 (16.4) 5 (16.4)
5 (16,4) 5 (16,4)
