Gazelle G9710 User Manual

Pocket thermography camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G9710 and is the answer not in the manual?

Questions and answers

Summary of Contents for Gazelle G9710

  • Page 2 Pocket Thermography Camera User Manual Legal Information About this Manual The Manual includes instructions for using and managing the Product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons.
  • Page 3 Pocket Thermography Camera User Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 4 Pocket Thermography Camera User Manual to 5350 MHz frequency range, this device is restricted to indoor use in: Austria (AT), Belgium (BE), Bulgaria (BG), Croatia (HR), Cyprus (CY), the Czech Republic (CZ), Denmark (DK), Estonia (EE), Finland (FI), France (FR), Germany (DE), Greece (EL), Hungary (HU), Iceland (IS), Ireland (IE), Italy (IT), Latvia (LV), Liechtenstein (LI), Lithuania (LT), Luxembourg (LU), Malta (MT), Netherlands (NL), Northern Ireland (UK(NI)), Norway (NO), Poland (PL), Portugal (PT), Romania (RO), Slovakia...
  • Page 5 Pocket Thermography Camera User Manual According to the Batteries and Accumulators (Placing on the Market) Regulations 2008 and the Waste Batteries and Accumulators Regulations 2009: This product contains a battery that cannot be disposed of as unsorted municipal waste in the United Kingdom.
  • Page 6 Pocket Thermography Camera User Manual B 급 기기 : 이 기기는 가정용 (B 급 ) 전자파적합기기로써 주로 가정에서 사용하는 것을 목적으로 하며 , 모든 지역에서 사용할 수 있습니다 .
  • Page 7 Pocket Thermography Camera User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Danger Indicates a hazardous situation which, if not avoided, will or could result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, Caution could result in equipment damage, data loss, performance...
  • Page 8 Pocket Thermography Camera User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. Laws and Regulations ● Use of the product must be in strict compliance with the local electrical safety regulations. Transportation ●...
  • Page 9 Pocket Thermography Camera User Manual ● In the first use, charge the device for more than 2.5 hours in the power-off status. ● The lithium battery voltage is 3.85 V, and the battery capacity is 2100 mAh. ● The battery is certified by UL2054. Maintenance ●...
  • Page 10 Pocket Thermography Camera User Manual COMPLIANCE NOTICE: The thermal series products might be subject to export controls in various countries or regions, including without limitation, the United States, European Union, United Kingdom and/or other member countries of the Wassenaar Arrangement. Please consult your professional legal or compliance expert or local government authorities for any necessary export license requirements if you intend to transfer, export, re-export the thermal series products between different countries.

  • Page 11: Table Of Contents

    Pocket Thermography Camera User Manual Contents Chapter 1 Overview ........................1 1.1 Device Description......................... 1 1.2 Main Function ........................1 1.3 Appearance ..........................2 Chapter 2 Preparation ....................... 4 2.1 Charge Device ........................4 2.2 Power On/Off ........................4 2.2.1 Set Auto Power-off Duration ..................4 2.3 Operation Method ........................
  • Page 12 Pocket Thermography Camera User Manual Chapter 6 Connect Bluetooth ....................19 Chapter 7 Set LED Light ......................20 Chapter 8 Cast Screen ......................21 Chapter 9 Set Macro Mode ...................... 22 Chapter 10 Thermal View APP Connection ................23 10.1 Connect via Wi-Fi ....................... 23 10.2 Connect via Hotspot ......................

  • Page 13: Chapter 1 Overview

    Pocket Thermography Camera User Manual Chapter 1 Overview 1.1 Device Description The handheld thermography camera is a device with both optical images and thermal images. It can do thermography, video recording, snapshot capturing, alarm, and it can connect to Wi-Fi, hotspot and Bluetooth.

  • Page 14: Appearance

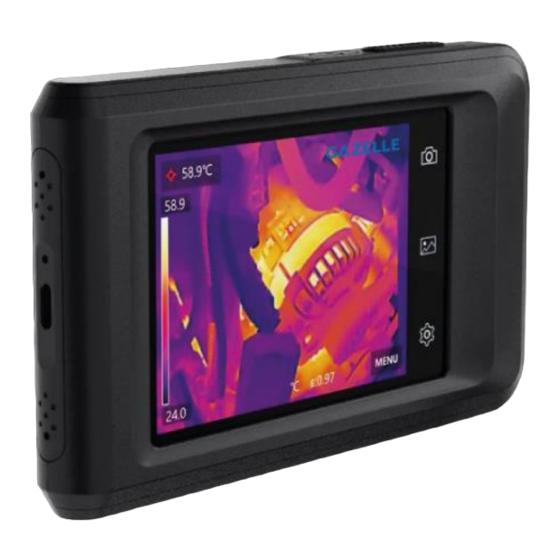

    Pocket Thermography Camera User Manual 1.3 Appearance Figure 1-1 Appearance Table 1-1 Button and Interface Description Description Function Home Key Tap to return to the live view interface. File Key Tap to enter albums. Settings Key Tap to enter settings interface. 4 &...
  • Page 15 Pocket Thermography Camera User Manual Description Function Thermal Lens View the thermal image. Optical Lens View the optical image. Power Key Hold to power on/off the device. ⚫ Press in live view mode: capture snapshots/stop recording. Capture Key ⚫ Press in menu mode: return to the live view interface. ⚫...

  • Page 16: Chapter 2 Preparation

    Pocket Thermography Camera User Manual Chapter 2 Preparation 2.1 Charge Device Plug in the cable, and connect the device to the power supply to charge the battery. 2.2 Power On/Off Power On Hold for over three seconds to turn on the device. You can observe the target when the interface of the device is stable.
  • Page 17 Pocket Thermography Camera User Manual ① Home ② File ③ Settings ④ Menu Figure 2-1 Main Menu ⑤ Wi-Fi ⑥ Bluetooth ⑦ Hotspot ⑧ Screen Cast ⑨ Flashlight ⑪ ⑩ Auto-Rotate Dark/Bright Mode Figure 2-2 Swipe-Down Menu...

  • Page 18: Chapter 3 Display Settings

    Pocket Thermography Camera User Manual Chapter 3 Display Settings 3.1 Set Screen Brightness You can drag the brightness adjustment slider in the swipe-down menu. Figure 3-1 Adjust Brightness via Swipe-Down Menu 3.2 Set Display Mode You can set the thermal/optical view of the device. Thermal, Fusion, PIP, Optical, and Blending are selectable.
  • Page 19 Pocket Thermography Camera User Manual Note When selecting the fusion mode, you need to set the parallax correction in the live view interface according to the distance to the target, so as to better overlap the thermal and optical images. Figure 3-3 Adjust Parallax Correction In PIP (Picture in Picture) mode, the device displays thermal view inside the optical view.

  • Page 20: Set Palettes

    Pocket Thermography Camera User Manual Note When selecting the blending mode, you can adjust the Optical-Thermal Ratio from 0 to 100 in the live view interface. The higher the value is, the clearer the thermal images are. Figure 3-3 Adjust Optical-Thermal Ratio 3.

  • Page 21: Adjust Digital Zoom

    Pocket Thermography Camera User Manual Rain The hot part in the image are colored, and the else is blue. 3. Press Back to exit the setting interface. 3.4 Adjust Digital Zoom Steps 1. Tap the live view interface to call the digital zoom frame. 2.

  • Page 22: Chapter 4 Temperature Measurement

    Pocket Thermography Camera User Manual Chapter 4 Temperature Measurement The thermography (temperature measurement) function provides the real-time temperature of the scene and display it on the left of your screen. The thermography function is turned on by default. 4.1 Set Thermography Parameters You can set thermography parameters to improve the accuracy of temperature measurement.

  • Page 23: Set Level & Span

    Pocket Thermography Camera User Manual 4.2 Set Level & Span You can adjust the temperature range with the Level & Span function. Set a temperature section and the palette only works for targets within the temperature section. The Level & Span can be manually or automatically adjusted to achieve a good thermal effect for better temperature difference analysis.

  • Page 24: Set Temperature Alarm

    Pocket Thermography Camera User Manual 4.4 Set Temperature Alarm When the temperature of targets triggers the set alarm rule, the device will perform configured actions, such as making audible warning and flash alarm, and sending notification to the client software. Steps 1.

  • Page 25: Chapter 5 Picture And Video

    Pocket Thermography Camera User Manual Chapter 5 Picture and Video Insert memory card into the device, then you can record videos, capture snapshots, and mark and save important data. Note ● Device does not support capturing or recording when the menu is shown. ●...

  • Page 26: Manage Albums

    Pocket Thermography Camera User Manual Steps 1. In the live view interface, hold the capture key to start recording. The recording icon and count down number display in the interface. Figure 5-1 Record Video 2. When you finish, press the capture key to stop recording. The recording video will be saved automatically.

  • Page 27: View Recorded Files

    Pocket Thermography Camera User Manual Task Operations 4. Tap to delete the old name, and enter the new name for the album by touching the screen. 5. Tap to finish. 1. Press to enter Albums. 2. Select the album you want to use as the default saving album. 3.

  • Page 28: Manage Files

    Pocket Thermography Camera User Manual Figure 5-2 View a File Note ● Files are arranged in chronological order, with the most recent at the top. If you fails to find the most recently taken snapshots or videos, please check the time and date settings of your device. See Set Date and Time for instructions.
  • Page 29 Pocket Thermography Camera User Manual Task Operations Note You can also delete a single file in this way. to enter Albums. 1. Press 2. Tap to select the album storing the file to be moved. 3. In the album, tap to view the file to be moved. Move a File 4.

  • Page 30: Export Files

    Pocket Thermography Camera User Manual 5.6 Export Files Connect the device to your PC with supplied cable, you can export the recorded videos and captured snapshots. Steps 1. Open the cover of cable interface. 2. Connect the device to your PC with cable and open the detected disk. 3.

  • Page 31: Chapter 6 Connect Bluetooth

    Pocket Thermography Camera User Manual Chapter 6 Connect Bluetooth You can record and hear the sound contained in the videos via bluetooth headsets after pairing the device with bluetooth headsets successfully. Steps 1. Select from the main menu. 2. Go to Local Settings → Connect → Bluetooth. 3.

  • Page 32: Chapter 7 Set Led Light

    Pocket Thermography Camera User Manual Chapter 7 Set LED Light Tap the flashlight button on the swipe-down menu to enable the LED light.

  • Page 33: Chapter 8 Cast Screen

    Pocket Thermography Camera User Manual Chapter 8 Cast Screen You can connect the device to your PC via a type-C cable, and cast the real-time live view of the device to your PC through the client. Then you can synchronously view the live view and parameters such as the maximum temperature, the distance, and the emissivity on your PC.

  • Page 34: Chapter 9 Set Macro Mode

    Pocket Thermography Camera User Manual Chapter 9 Set Macro Mode In the macro mode, you can focus extremely close on a very small object, and the object appears much larger in the view (and in the final image) compared to the standard lens. Before You Start ⚫...

  • Page 35: Chapter 10 Thermal View App Connection

    Pocket Thermography Camera User Manual Chapter 10 Thermal View APP Connection The device supports both Wi-Fi connection and WLAN hot spot. Connect the device to Thermal View client software, and you can control the device via mobile client. 10.1 Connect via Wi-Fi Before You Start Download and install client software on your phone.

  • Page 36: Connect Via Hotspot

    Pocket Thermography Camera User Manual 10.2 Connect via Hotspot Before You Start Download and install client software on your phone. Steps 1. Select from the main menu. 2. Go to Local Settings → Connect → Hotspot. 3. Tap to enable the hotspot function. The hotspot name is the last 9 digits of the device serial No.

  • Page 37: Chapter 11 Maintenance

    Pocket Thermography Camera User Manual Chapter 11 Maintenance 11.1 View Device Information Go to Local Settings → Device Information to view the device information. 11.2 Set Date and Time Steps 1. Go to Local Settings → Device Settings → Time and Date. 2.

  • Page 38: Chapter 12 Appendix

    Pocket Thermography Camera User Manual Chapter 12 Appendix 12.1 Common Material Emissivity Reference Material Emissivity Human Skin 0.98 Printed Circuit Board 0.91 Concrete 0.95 Ceramic 0.92 Rubber 0.95 Paint 0.93 Wood 0.85 Pitch 0.96 Brick 0.95 Sand 0.90 Soil 0.92 Cloth 0.98 Hard Paperboard...
