The new „HS Cleaner 2"
 cleaning
 marking
 polishing
Referral:
To ensure putting into operation, operation and mainentance of the Cleaner a
Faultless and sure it is recommended to make to the service staff accessible and to
read through before use this operator´s manual well.
Follow the safety instructions!
Operator`s manual
working instructions
HS Cleaner
Werner Krauter GmbH
Siemensstraße 2-5
D-73037 Göppingen
&

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2 and is the answer not in the manual?

Questions and answers

Summary of Contents for HS Cleaner 2

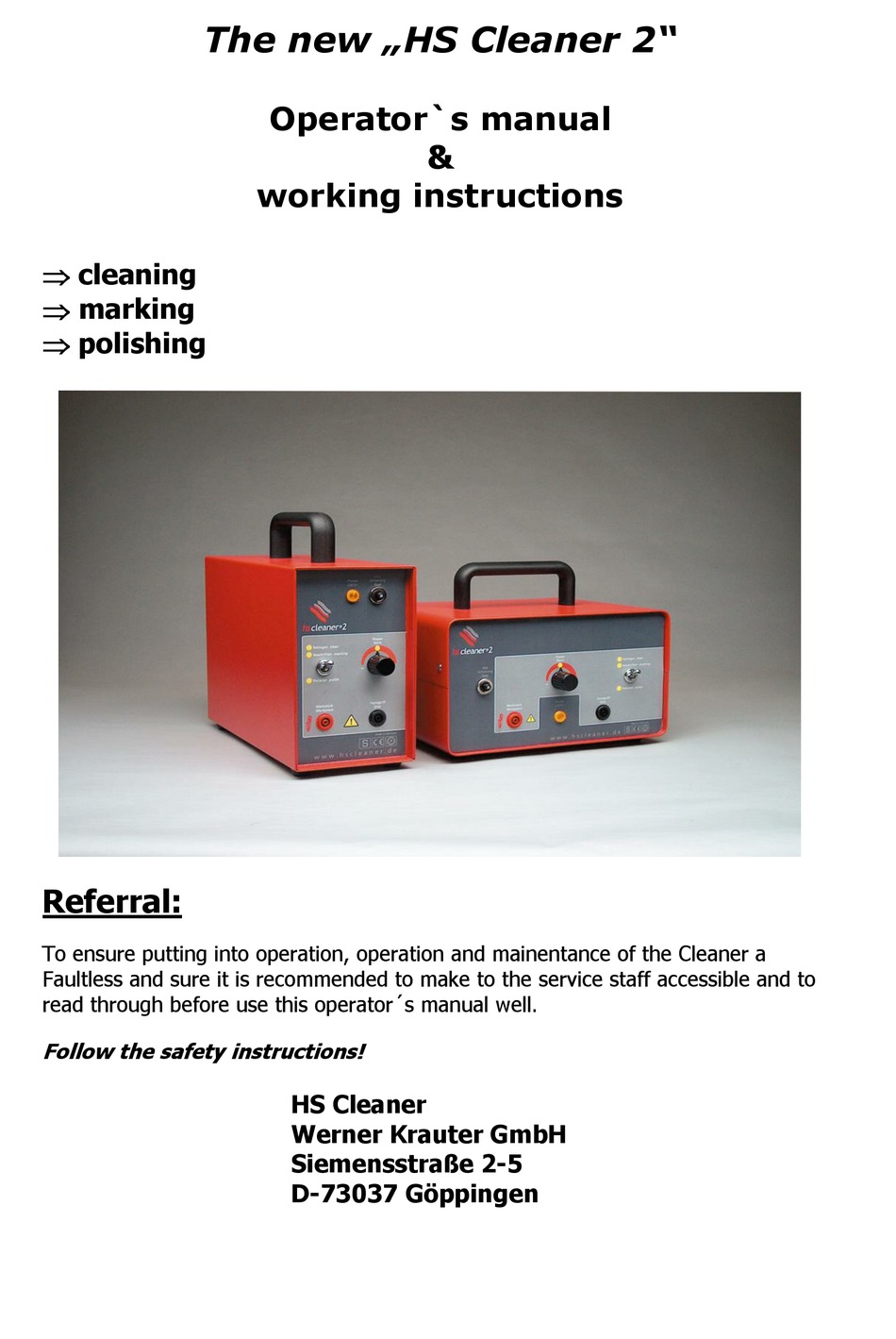

  • Page 1 The new „HS Cleaner 2“ Operator`s manual & working instructions  cleaning  marking  polishing Referral: To ensure putting into operation, operation and mainentance of the Cleaner a Faultless and sure it is recommended to make to the service staff accessible and to read through before use this operator´s manual well.

  • Page 2: Table Of Contents

    6.4 brush cleaning 7. Safety data Page 7 8. Maintenance Page 7 9. General Page 7 10. Accessoires-/spare parts Page 7 11. safety data sheet Cleanox 2 Page 7 EC-conformity instruction Seite 8 Anlage: Safety data sheet Cleanox 2 Page 9...

  • Page 3: Hs Cleaner

    The device may exclusively to the cleaning of very alloyed steels as well as metal surfaces mark electrically more leadingly used be. 2. Sicherheitshinweise: Wearing protective clothing, acid-resistant protective gloves and safety goggles when work with the device. Working only in rooms ventilated well.

  • Page 4: Transport Instrutions

    Putting over stamps and fastening with rubber ring yellow, in front of moistened Keflar long time felt on both sides. Dipping stamps into the wide neck container filled with "Cleanox 2".  Putting performance regulators on "norm" and switch on "cleaning".

  • Page 5: Marking Dark / Bright

    10-14 V alternating current 2-3 sec. or rather. 2-3 x overline high grade steel (V2A etc.) 9-14 V alternating current 2-3 sec. or rather. 2-3 x overline high alloy steel 12 V alternating current time of signing has to be reduced...

  • Page 6: Polishing

     „Put switch on DC „polishing“.  Clean badly soiled welded seems before polishing with “cleanox 2”.  yellow to middle tempering tarnishes on sharpened and polished metals can be polished and cleaned in one operation with superpolish (-not contained into...

  • Page 7: Brush Cleaning

    7. Safety data: Cleanox 2 is "corrosive" and with that it has no obligation duties. It is suitable for the remove of easy and strong oxide films. Further information see under 11. Safety data Cleanox 2. 8. Maintenance: The device is maintenance-free.

  • Page 8: Ec-Conformity Instruction

    EC- guideline over electromagnetic compatibility 96/336/EWG Applied norms: EN 55011, EN 61000 6 – 2, EN 61000 3 – 2, EN 61000 3 – 3 Im Falle von unbefugten Veränderungen, unsachgemäßen Reparaturen oder Umbauten, die nicht ausdrücklich vom Hersteller autorisiert sind, verliert diese Erklärung ihre Gültigkeit.
  • Page 9 24.01.2018 Substance/preparation- and company name. Details on the product name: Cleanox 2 supplier: HS-Cleaner Werner Krauter GmbH, Siemensstraße 2–5, D-73037 Göppingen telephone: 07161 / 9383-123, Telefax 07161 / 9383-1355 emergency information: see above composition/details on components. Chemical characterisation: Watery preparation from weak acidic components and auxiliary materials.
  • Page 10 CLEANOX 2 Safety data sheet According to 91/155/EWG Page 2 of 4 reworked: 24.01.2018 Fire-fighting measures Suitable deleting means.: the product is not flammable For safety reasons Unsuitable deleting means: full jet of water Endangering specially by the substance, its waste products of combustion or arising...
  • Page 11 CLEANOX 2 Safety data sheet According to 91/155/EWG Page 3 of 4 reworked: 24.01.2018 Exposure controls and personal protection Technical protection measures: See point 7 Personal protection equipment: General protection and hygiene explanations: Avoid direct eye contact, do not eat, drink or smoke during the work Before the breaks and after finishing work wash your hands.
  • Page 12 CLEANOX 2 Safety data sheet According to 91/155/EWG Page 4 of 4 reworked: 24.01.2018 Details on toxicologie Irritancies to skin and eyes. Details on ecology Water endangering class: 1(self-classification) Not letting condensed extract reach the sewage system, waters and soil.
