Passive Reference 8" Mini Subwoofer Kit
Thank you for purchasing the Passive Dayton Audio Reference 8" mini subwoofer kit. The
enclosure for this speaker kit was precision cut using CNC machinery for a tight fit to
make it easy to finish. With a little time and patience, your finished product will provide
years of enjoyment. Please follow these instructions for the best possible results.
Suggested tools and consumables:
Drill
Screwdriver
Wood clamps (you can never have too many of these)
Sanding block and/or electric finishing sander
Wood glue
Package contents:
First, empty the contents of the package and review parts to ensure everything has been
included and is in good condition. If any parts are missing or damaged, please contact our
customer service department at 1-800-338-0531.

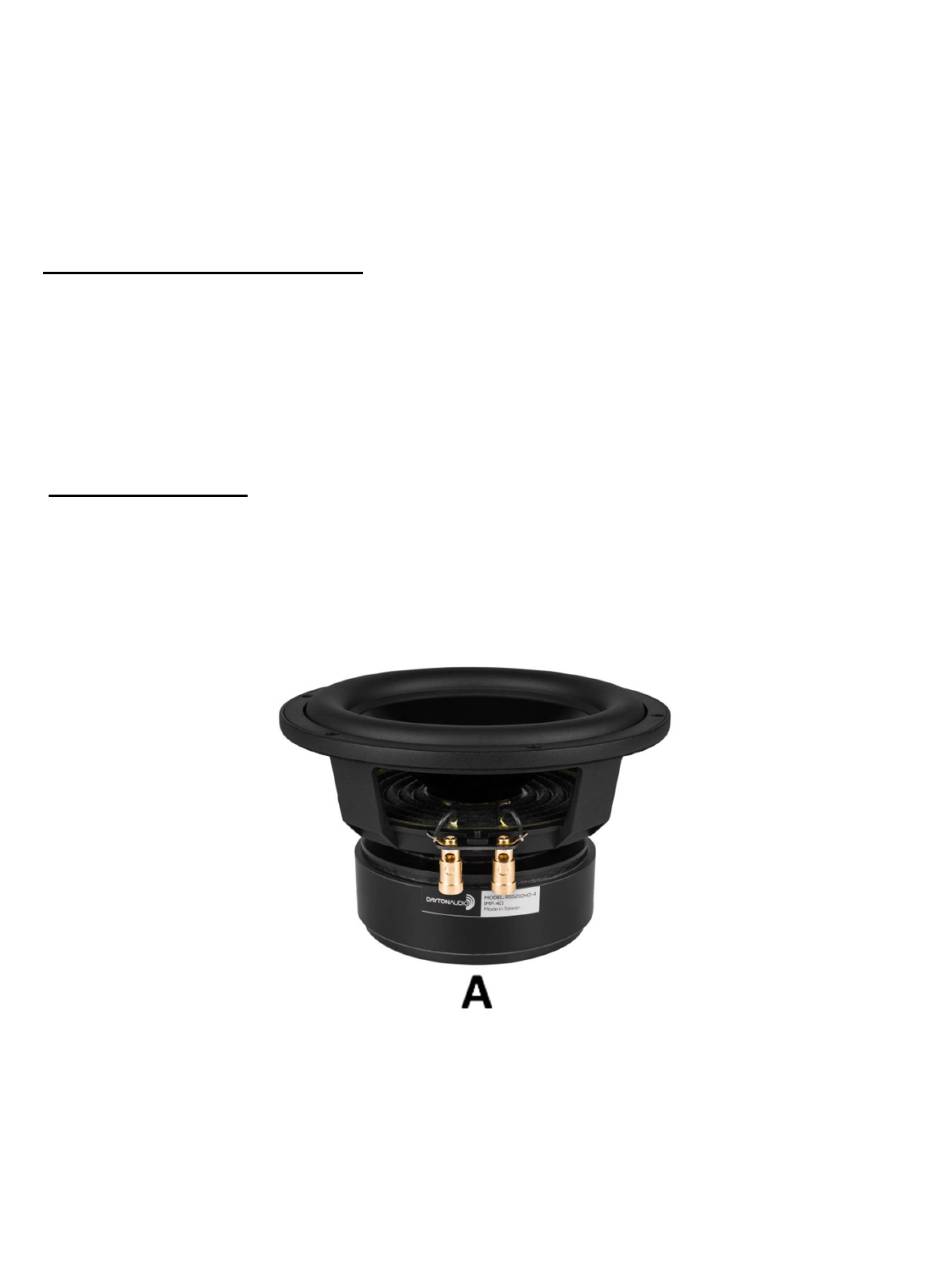

A) Dayton Audio RSS210HO-4 8" Reference Series HO Subwoofer 4 Ohm
Rag or paper towels
Solder
Wire stripper/crimper
#8 Wood Screws
Polyurethane glue (Gorilla Glue)
Driver:
Advertisement
Related Manuals for DaytonAudio Reference Series
Summary of Contents for DaytonAudio Reference Series
- Page 1 First, empty the contents of the package and review parts to ensure everything has been included and is in good condition. If any parts are missing or damaged, please contact our customer service department at 1-800-338-0531. Driver: A) Dayton Audio RSS210HO-4 8" Reference Series HO Subwoofer 4 Ohm...
-
Page 2: Enclosure Components
Enclosure Components: B) Baffle C) 2 x Side Panel D) Back Panel E) 2 x Top/Bottom Panel F) Brace Enclosure Assembly: First, before gluing anything, do a dry fit of the enclosure to familiarize yourself with the parts and assembly. This will also give you a chance to ensure that all pieces have been cut properly. - Page 3 Apply a small bead of glue to the inside of all joining surfaces of the Back Panel (B) and one Top/Bottom panel (E). Then set in place applying enough pressure to ensure glue is spread through each joint (some glue squeeze-out can be expected). Apply a small bead of glue to the inside of all joining surfaces of one Side Panel (F) and the back and top/bottom panel assembly.
- Page 4 Apply a small bead of glue to the inside of all joining surfaces of the other Side Panel (F) and the enclosure assembly. Then set in place applying enough pressure to ensure glue is spread through each joint (some glue squeeze-out can be expected). Apply a small bead of glue to the inside of all joining surfaces of the other Top/Bottom Panel (E) and the enclosure assembly.
- Page 5 Make sure that all edges are flush and securely apply clamps from side to side, top to bottom, and front to back. Apply ample pressure to ensure glue is spread evenly through each joint (some glue squeeze-out can be expected). Visually inspect all seams to make sure they are all closed tightly, you may need to relocate clamps (or add more clamps) to get a perfect fit.
-
Page 6: Final Assembly
Connect the speaker wires to the appropriate terminals on the Dayton Audio RSS210HO-4 8" Reference Series HO Subwoofer (A). Carefully set the driver into the cutout and secure using the fastener of your choice.
