Summary of Contents for Multitek MB-AMP 4

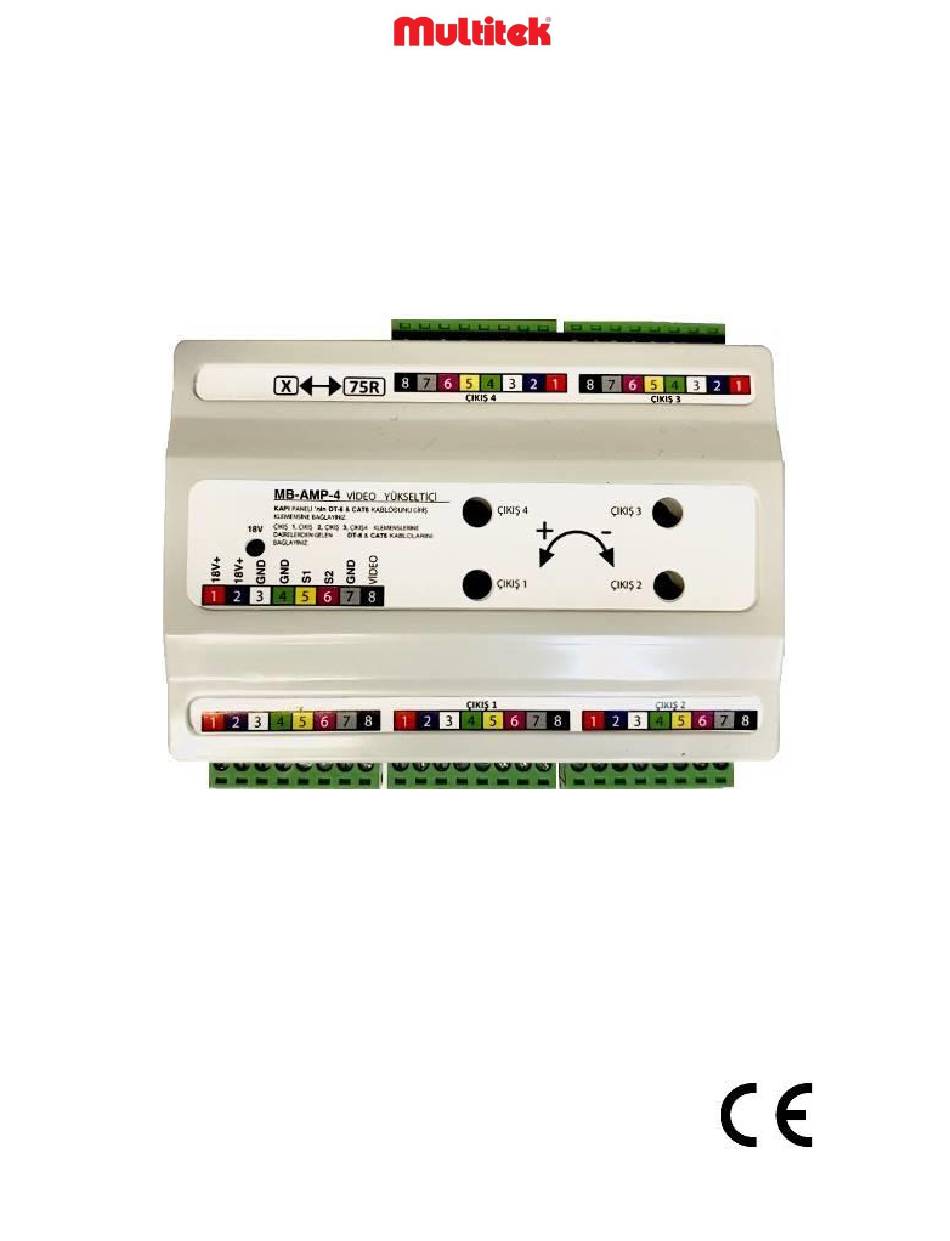

- Page 1 MB-AMP 4 VIDEO AMPLIFIER USER MANUAL It obeys the rules of AEEE regulations.
- Page 2 MB-AMP 4 VIDEO AMPLIFIER USER MANUAL Thank you for choosing access MB-AMP 4. This user manual was prepared for using the device more efficiently. MB-AMP 4 HAS WARRANTY FOR 2 YEARS AGAINST MANUFACTURING DEFECTS. Multitek has rights to change the features of the device given in this document prior given any information.
- Page 3 SAFETY WARNINGS For your own and the device safety, you should obey the security warnings; 1. Read the user manual carefully. 2. Read the safety warnings carefully. 3. Remarks about Transport, Shipment and Preservation • During transport and shipment keep the product with its case. The case will protect the product against the physical damages.
- Page 4 1. DESCRIPTION • Supports 75R adjustable isolated video outputs. Each output gain can be adjusted as separately. 2. FEATURES Name MB-AMP 4 Voltage 18-24V DC Current 0,7A (max), 0,2A (standby) Frequency 240Mhz -40dBc Working Temperature -5C⁰, +55C⁰ Humidity %90 non-condensed 3.
- Page 5 5. CONNECTION DIAGRAM DATE:09.05.2017 REVISION DATE:11.11.2020 REVISION NO:02 DOCUMENT NO: MLŞ14-78 PAGE NO:05/05...
