- Page 2 K- SENSORS User Manual K-Sensors User Manual K-Grip K-Bubble K-Push K-Pull K-Force Plates K-Deltas K-Move K-Deltas XL © 2022 KINVENT Biomecanique E2022C_EN...
-
Page 3: K-Physio App
K- SENSORS User Manual K-Physio app Kinvent Physio is the only app you will need for all your Kinvent Sensors. All tutorials for the invent Physio app are available online at: Kinvent.link/quickstart © 2022 KINVENT Biomecanique E2022C_EN... - Page 4 K- SENSORS User Manual This manual concerns K-SENSORS products. The information content of this manual belongs to KINVENT, and is provided only for the purpose of operating K-SENSORS and software. This manual is subject to modifications. The latest version is available on www.k-invent.com...
-
Page 5: Graphic Symbol
Class II Electrical Equipment An ISO 15223 symbol Indicating upper & lower temperature limits for operation, transport, and storage Nonionizing radiation Do not dispose of the units in normal household waste. Dispose products in accordance with local regulations © 2022 KINVENT Biomecanique E2022C_EN... -
Page 6: Table Of Contents
User qualification On the floor Description Get started Benefits Technical Features K-Deltas XL Accessories User qualification Get Started Description Benefits K-Force Plates Technical Features User qualification Installation Description On the floor Benefits Get started Technical Features © 2022 KINVENT Biomecanique E2022C_EN... - Page 7 K- SENSORS User Manual Troubleshooting Sensor difficulties Connectivity difficulties Legal information Warranty Terms European Union Other countries Service policy Warning Declaration of Conformity FCC information Canada Japan Switzerland United Kingdom Contact Information © 2022 KINVENT Biomecanique E2022C_EN...
-
Page 8: Introduction
The product line of K-SENSORS is the complete tool designed for assessing, monitoring and exercising balance, strength, and joint motion. It consists of 7 sensors, all of them equipped with high precision measuring systems and with the KINVENT's excellence in interface development, mechanics and electronics. -
Page 9: About Us
Minimum Requirements: diagonal About us KINVENT is specialized in the design and manufacturing of biomechanics equipment. Our strength is that we can conceive and implement solutions to any challenge in sports biomechanics and physical rehabilitation. Our products include ready-to-use force plates, inertial wireless sensors, simulators and various custom-made applications. -
Page 10: Replaceable Parts
- Do not service the battery while in use with a patient. - Never disassemble or modify the system using any accessories not specifically approved by KINVENT Biomécanique, LLC, this will void the warranty as well as reduce immunity to electromagnetic interference, or increase electromagnetic emissions, and result in improper operation. -
Page 11: Interface
Green >70% charge Yellow >30% charge Red <30% Sensor Connected Charging End of charge Sensor has low LED is Blinking BLUE battery (<10%) LED Slow ORANGE blink LED is Steady WHITE LED blinks three times RED © 2022 KINVENT Biomecanique E2022C_EN... -
Page 12: K-Grip

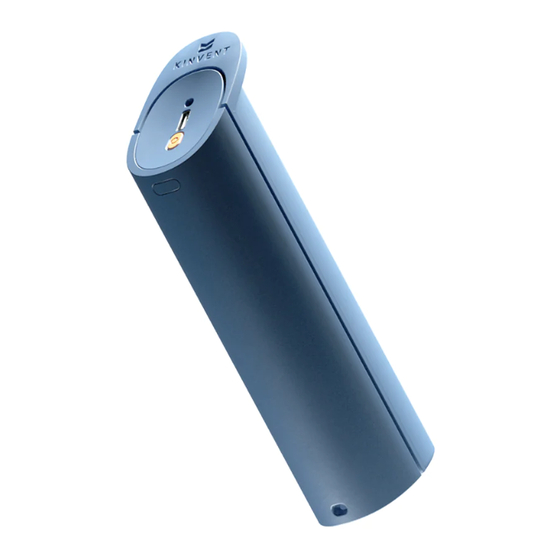

Benefits K-Grip is equipped with electronic force transducers and gives you real-time biofeedback on your tablet or smartphone through the Kinvent Physio app. Therefore, you can set strength objectives for your patient and motivate him through the process of rehabilitation. You will, then, follow-up your patient's progress through the Kinvent Physio interactive database. -
Page 13: Get Started
You can charge your K-Grip sensor through the USB A to USB C cable provided or with any USB-C charging cable. The sensor is supplied with the appropriate IEC 60601 medical USB power supply. -
Page 14: K-Push
Benefits K-Push is equipped with electronic force transducers and gives real-time acoustic and optic Biofeedback on your Smartphone or Tablet through the Kinvent Physio app. Through its Target oriented exercises, you can set objectives to your patient and encourage him to surpass himself. The app saves your participant's results. You can then follow-up his progress on Maximal Force, Endurance, and muscular Symmetry on the app's database. -
Page 15: Accessories
LED turns Blue. While your sensor is connecting, do not load the sensor, do not step on the sensor, do not move the sensor, and do not apply force on the sensor. © 2022 KINVENT Biomecanique E2022C_EN... -
Page 16: K-Force Plates
K Plates are equipped with electronic force transducers and give real-time acoustic and optic biofeedback on your Smartphone or Tablet through the Kinvent Physio app. Each platform has 4 independent sensors on the corners, allowing measurement of the center of pressure. Each foot comes with a mounting thread so that the sensor can be fixed on a surface. -
Page 17: Installation
Once the sensor is switched on, go to the homepage, and select Plates sensor and an activity. Warning: While your sensor is connecting, do not load the sensor, do not step on the sensor, do not move the sensor, do not apply force on the sensor. © 2022 KINVENT Biomecanique E2022C_EN... -
Page 18: K-Bubble
Radiated output Power Max. 10 mW Wireless transmission 2.4GHz band (Bluetooth Low Energy Frequency 5.1) Accuracy < 1.5% Eco features Self-activated “sleep” mode after 10 minutes. Units Selectable in application KgF, N, lbs Acquisition frequency 125Hz © 2022 KINVENT Biomecanique E2022C_EN... -
Page 19: Accessories
Although the sensor is working in absolute terms and is thus unaffected by the external/internal pressure difference the inflatable accessory will behave differently if over- or under- inflated. In order to change accessories the above process will have to be repeated. © 2022 KINVENT Biomecanique E2022C_EN... -
Page 20: K-Move
Static Accuracy 2° Dynamic accuracy (head., pitch, 7°, 2°,2° roll) Power Supply Li-Po Battery 160mAh Battery 12h of autonomy, 1.5h for charging Wireless transmission 2.4GHz band (Bluetooth Low Energy 5.1) frequency Data rate 400 Hz © 2022 KINVENT Biomecanique E2022C_EN... -
Page 21: Get Started
When you click on START your patient can start moving. The range of motion is measured in degrees. Ensure the patient is not using compensation movement. To assess a joint’s amplitude of a movement not available in the list, create your own assessment. © 2022 KINVENT Biomecanique E2022C_EN... -
Page 22: K-Pull
300 Kg / 661 lbs Battery 12h of autonomy, 2h charging Power supply Li-Po battery 280 mAh Wireless transmission 2.4GHz band (Bluetooth Low Energy 5.1) frequency Accuracy < 0.1% , C3 Class Acquisition frequency 1000Hz © 2022 KINVENT Biomecanique E2022C_EN... -
Page 23: Get Started
The strap and carabiner are rated for 600 daN /611 kg / 1347 lbs of maximum force while the elastics should not exceed an extension of 2.5 times their length. © 2022 KINVENT Biomecanique E2022C_EN... -
Page 24: K-Deltas
K-Deltas are equipped with electronic force transducers and give real-time acoustic and optic biofeedback on your Smartphone or Tablet through the Kinvent Physio app. Accessories K-Deltas can be used with the following accessories Deltas Frame is an accessory for the K-Force Deltas that allows it to stabilize the platforms and to obtain a larger surface at equal height to perform jumps in complete safety. -
Page 25: Installation
Once the sensor is switched on, go to the homepage, and select K-Deltas sensor and an activity. Warning: While your sensor is connecting, do not load the sensor, do not step on the sensor, do not move the sensor, do not apply force on the sensor. © 2022 KINVENT Biomecanique E2022C_EN... -
Page 26: K-Deltas Xl
Benefits K-Deltas XL are equipped with electronic force transducers and give real-time acoustic and optic biofeedback on your Smartphone or Tablet through the Kinvent Physio app. Technical Features Minimum requirements Android 5.0+ or iOS 10.0+, Bluetooth... -
Page 27: Installation
Once the sensor is switched on, go to the homepage, and select K-Deltas sensor and an activity. Warning: While your sensor is connecting, do not load the sensor, do not step on the sensor, do not move the sensor, do not apply force on the sensor. © 2022 KINVENT Biomecanique E2022C_EN... -
Page 28: Troubleshooting
K- SENSORS User Manual Troubleshooting If any difficulties occur while using the system check if the symptoms appear in the following list. For further assistance please visit KINVENT's website or use the Kinvent Physio app assistance menu: “support”. Sensor difficulties... -
Page 29: Connectivity Difficulties
2. Check if other sensors are in the near area and either allow them to turn off or manually power them off. 3. In case of K Plates/ K- Deltas please verify that both a left and right sensor is present and powered on. © 2022 KINVENT Biomecanique E2022C_EN... -
Page 30: Legal Information
A valid proof of purchase in the form of a bill of sale or receipt must be provided to obtain warranty services. KINVENT excludes all liability for any data loss, loss of profit or any other loss or damage suffered by the end customer. -
Page 31: Warning
Class II medical devices per Rule 10 of the Canadian Medical Devices Regulations KINVENT Sensors also meet the following Technical Standards, to which Conformity is declared: IEC 60601-1 IEC 60601-1-2 KINVENT Sensors are designed and manufactured in a facility certified to the following international standards: ISO 9001:2015 ISO 13485:2016 FCC information K-Sensors is a product using certain radio-frequencies during functioning. -
Page 32: Canada
(MIC) of Japan pursuant to the Radio Act of Japan. Certificate number 020-200037, 201-190838/00 Switzerland For the Swiss market, our product range is registered with swissmedic and our authorised representative for Switzerland (CH-REP) is Freyr Life Sciences GmbH. © 2022 KINVENT Biomecanique E2022C_EN... -
Page 33: United Kingdom
For the UK market, our product range is registered with the MHRA and our authorised representative for the UK (UKRP) is I3CGLOBAL(UK) (Office 54, No.58 Peregrine Road, Hainault, IG63SZ, England). Contact Information For any information or Assistance, please contact: www.k-invent.com support@k-invent.com Rond-Point Benjamin Franklin 34000 Montpellier, FRANCE © 2022 KINVENT Biomecanique E2022C_EN... - Page 34 K- SENSORS User Manual MEASURE . MOVE . PROGRESS © 2022 KINVENT Biomecanique E2022C_EN...
