Summary of Contents for Outwater Fulterer OI-777

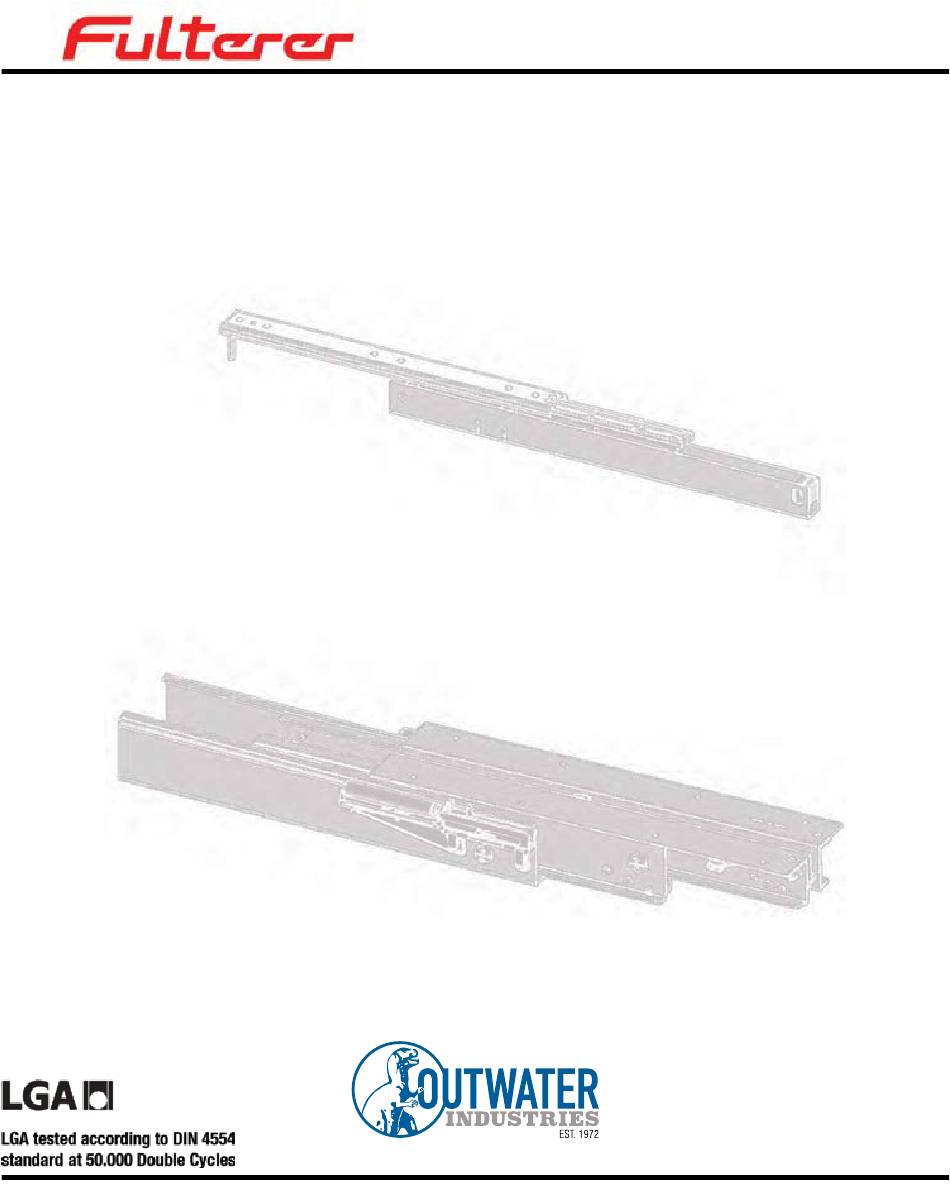

- Page 1 MOUNTING INSTRUCTIONS OI-777: Progressive-Action Pantry Pull-Out, Bottom Mount 450 lbs. Capacity with Matching Top Guide 1.800.631.8375 | www.outwater.com #127 04/26/11 H.S.
- Page 2 IMPORTANT: It is essential, due to the high weight capacity of 450 lb, that on the back mounting points M6 thru bolts (DIN 931 or 7985A) and tee nuts are used (or 1/4”-20). HOLE LOCATIONS Outwater Industries, Inc. assumes no liability for improper installation. Page 2...
- Page 3 + The Top Guide mounts as per drawing 2, 2a MOUNTING + The U-Profile of the Top Guide mounts on the pull-out as per drawing 3, 2a and the hole locations 3b. HOLE LOCATIONS Outwater Industries, Inc. assumes no liability for improper installation. Page 3...
- Page 4 Tighten the adapter set screws at the same time adjusting the side to side position (Illustration B). + Adjust the height position on the OI-777 as per (Illustration B). Outwater Industries, Inc. assumes no liability for improper installation. Page 4...
- Page 5 IMPORTANT: + Do not lubricate any part of the slide at any time! OPTIONS + Easy-close damping-system. Part# OI-777-EZ Outwater Industries, Inc. assumes no liability for improper installation. Page 5...
- Page 6 Assemble parts as illustrated 1, 2, 3, 4, 5. Please note that depending on the load the follower X has to be adjusted. Outwater Industries, Inc. assumes no liability for improper installation. Page 6...
- Page 7 EASY-CLOSE FOR OI-777 MOUNTING INSTRUCTIONS adjustment range up/down 1.5mm length 400 - 650 nach / to + length 700 - 1100 nach / to - load cap. nach / to + Outwater Industries, Inc. assumes no liability for improper installation. Page 7...
