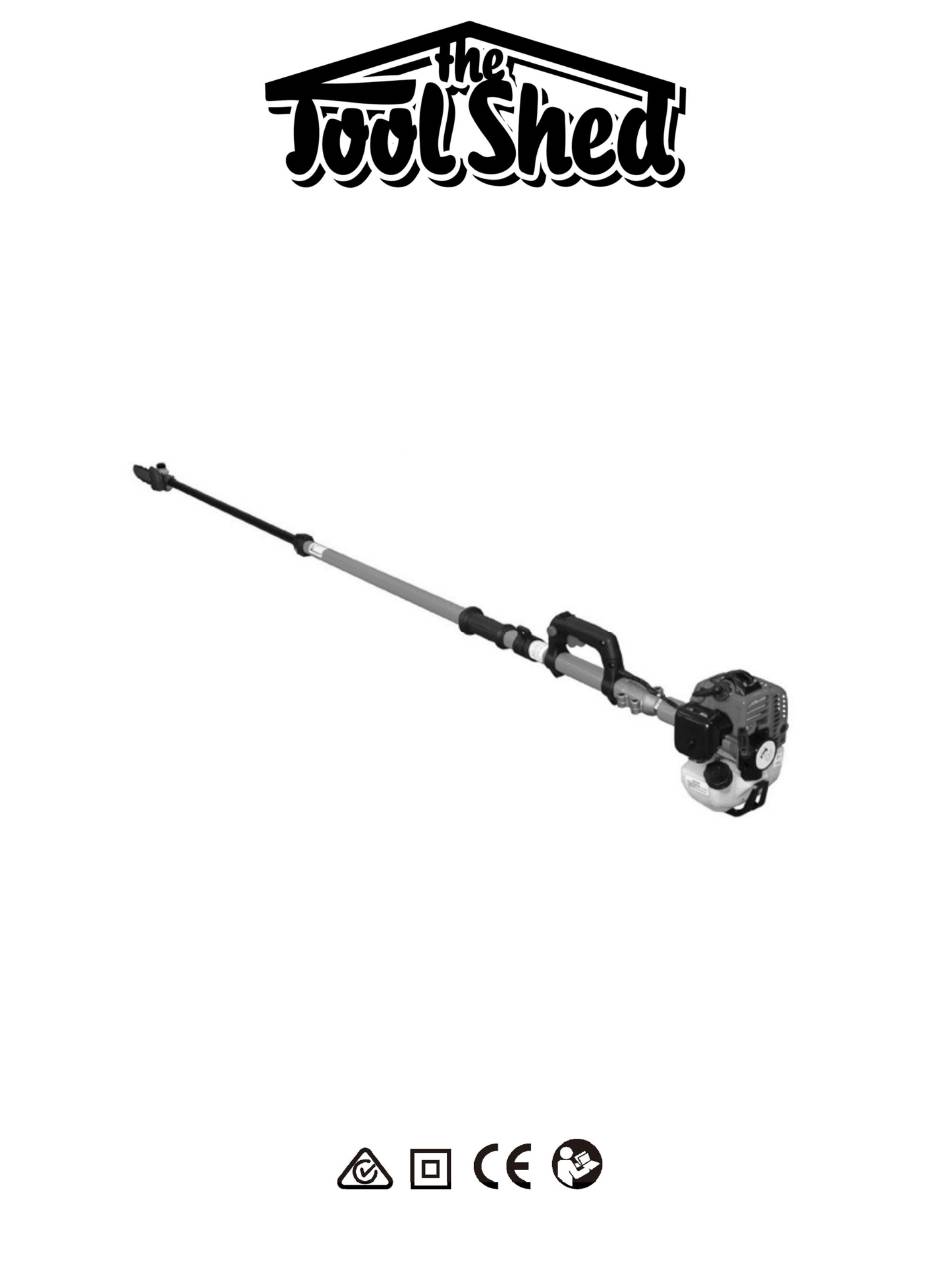

- Page 1 4M PETROL POLE SAW TSBRC450 www.thetoolshed.co.nz...
-
Page 2: Product Details
PRODUCT DETAILS PRODUCT 4M Petrol Pole Saw MODEL NO. TSBRC450 ISTRIBUTED BY NOTE: This manual is only for your reference. Due to the continuous improvement of the ToolShed products, changes may be made at any time without obligation or notice. -
Page 3: Table Of Contents
OPERATION MANUAL C O N T E N T S: Product Details ............................2 Specifications ............................4 Included Accessories ..........................5 Service ..............................5 Safety Information ..........................6 Assembly ..............................8 Operation .............................. 10 Maintenance ............................11 Troubleshooting ........................... 12 Parts Breakdown .......................... -
Page 4: Specifications
OPERATION MANUAL SPECIFICATIONS Engine Air cooling single cylinder CC Rating 25.5 Rotating Speed 0-7500 r/min Maximum Torque 1N.M Fuel Consumption 380g/kwh Total Displacement 25.4cm3 Fuel Mixture 25-1 Size 4.0m (long) max extension (2.5 min extension) Weight 8.6kg (no fuel) Item Branch Saw Blade Length 280mm... -
Page 5: Included Accessories
OPERATION MANUAL ACCESSORIES SUPPLIED WITH YOUR TOOLSHED EXTENSION POLE SAW PART QTY PICTURE PART QTY PICTURE Main Black engine extension & pole shaft orange and plastic drive locking shaft section section Oil/Fuel Chainsaw mixing head bottle shoulder strap Face Chain visor sharpener Allen... -
Page 6: Safety Information
OPERATION MANUAL IMPORTANT INFORMATION GENERAL SAFETY GUIDELINES WARNING READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS. Failure to follow instructions and warnings could lead to serious injury, electric shock, or fire. Save ALL warnings and instructions for future reference. WORK AREA SAFETY Ensure that your work area is kept well-lit and clean. - Page 7 OPERATION MANUAL ADDITIONAL SAFETY FOR PETROL POLE SAW PROTECTIVE CLOTHING A hard hat is recommended and googles will protect your eyes against flying splinters and chips. Because a power saw is noisy, you should wear hearing protection. Leather gloves, hard-toe shoes, and timber chaps would help protect limbs that might come into contact with the chain.
-
Page 8: Assembly
OPERATION MANUAL ASSEMBLY The carry handle and orange driveshaft section of the pole is supplied pre-attached to the engine and gearbox mountings. The black extension part of the driveshaft slides inside the end of the orange driveshaft section as shown. Ensure the correct end of the black extension shaft is inserted into the orange driveshaft. To ensure the black driveshaft pole is correctly positioned, attach the chainsaw head to the other end of the black extension driveshaft, ensuring the locating screw, screws into the hole at the end of the pole. - Page 9 OPERATION MANUAL CONNECTING THE CHAINSAW HEAD 1. Insert the end of the long drive shaft into the end of the branch cutter (ensuring the locking screw locates into the locating hole to ensure the correct cutting position). Tighten the screw securely. Fill up the chain oil reservoir with chainsaw oil. 2.
-
Page 10: Operation
OPERATION MANUAL OPERATION STARTING THE ENGINE 1. Ensure the fuel mixture is 25:1, fill up the tank and securely close the lid. 2. Lay the machine flat on the floor for starting. 3. Check there are no objects obstructing the head of the machine. 4. -
Page 11: Maintenance
OPERATION MANUAL MAINTENANCE Daily Checks: Check all screws for looseness Check for oil and fuel leakages Check After Every 10 Hours: Clean the air filter Clean the fuel filter (if fitted) Check After Every 50 Hours: Check the tension of the nuts on the cylinder head Decoke the cylinder head and the exhaust Replace spark plug Replace air and fuel filters... -
Page 12: Troubleshooting
OPERATION MANUAL TROUBLESHOOTING Engine fails to start Check fuel is in the tank Check fuel is visible in the fuel pipe Check spark plug is not saturated with fuel or clogged with carbon Check spark plug lead is well connected to the spark plug Check operation of choke (engine may require more choke or less choke) Engine may be flooded (Remove spark plug, turn engine over several... -
Page 13: Parts Breakdown
OPERATION MANUAL PARTS BREAKDOWN www.thetoolshed.co.nz... -
Page 14: Parts List
OPERATION MANUAL PARTS LIST Part Part Part Engine Cover Washer Engine Holder Shaft Cover Bearing Bearing Shaft 2 Oil Pipe Stop Ring Pipe Wheel Cover Linker Oil Wheel Link Bearing Spring Screw Gear Ring Stopper Sleeve Oil Container Stop Ring Holder Washer Link...
