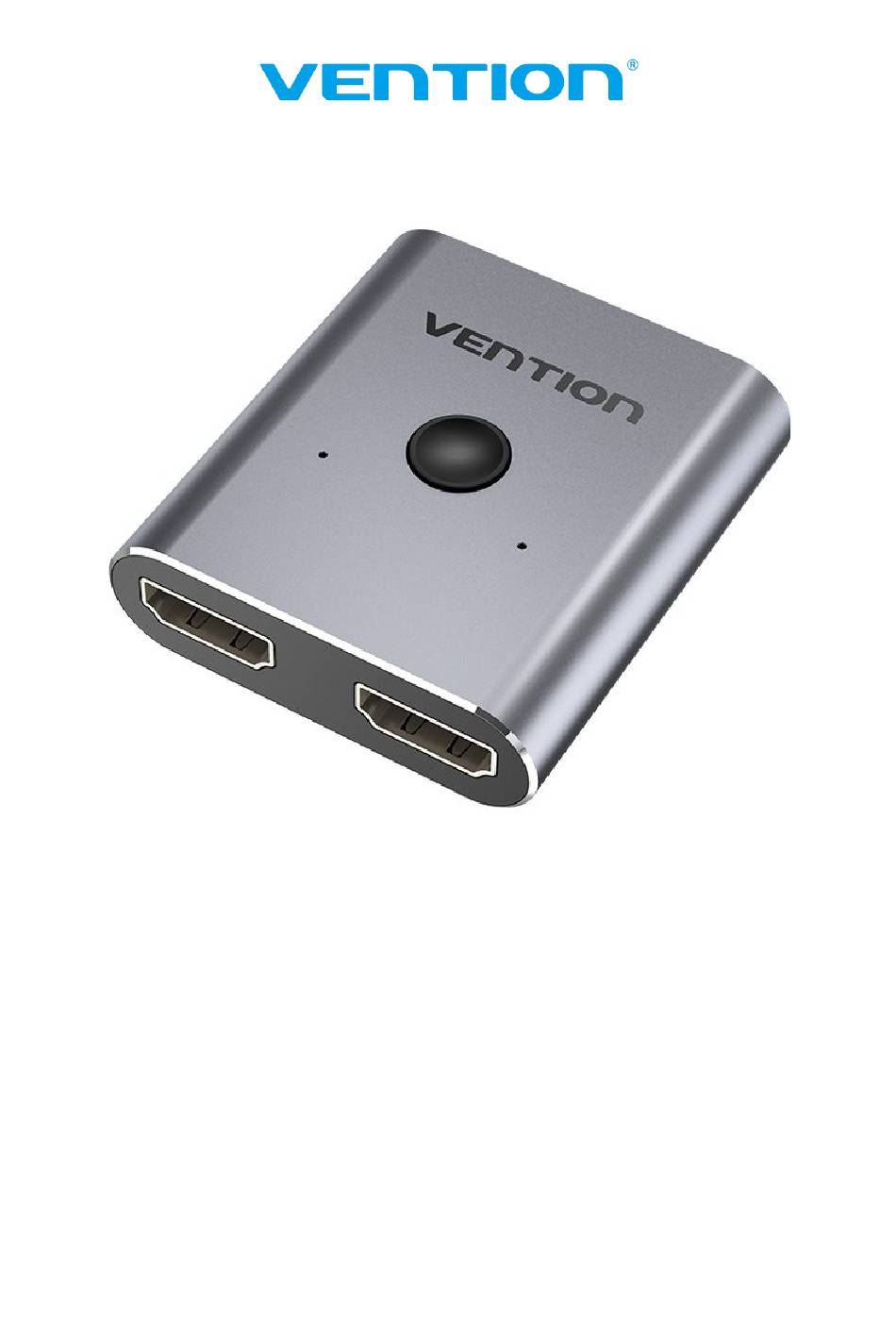

- Page 1 HDMI Bi-Direction Switcher / Splitter User’s guide | VWS-B54...
- Page 2 Product Description Vention HDMI Bi-Direction Switcher combines HDMI 2 in 1 out and 1 in 2 out. This product connects two HDMI signal sources (such as computer, set-top box, etc.) to output on one HDMI display device (such as TV, projector, monitor, etc.). It realizes the result of two channels of the signal source to share one channel display device at the same time.
- Page 4 Connection Diagram One in two out mode Two in one out mode Computer Display Input mode Output mode Output mode Input mode Television Display Computer Set-top box...
- Page 5 Please use the switch to display one monitor to the other. Packaging contains things below HDMI Instruction Warranty switcher / splitter manual card For warranty service or support please contact Vention team: Website: www.vention.cn Email: vention@vention.cn All rights reserved. © 2020 Alza.cz a.s.
