Summary of Contents for RIED ControLaser QWP 800

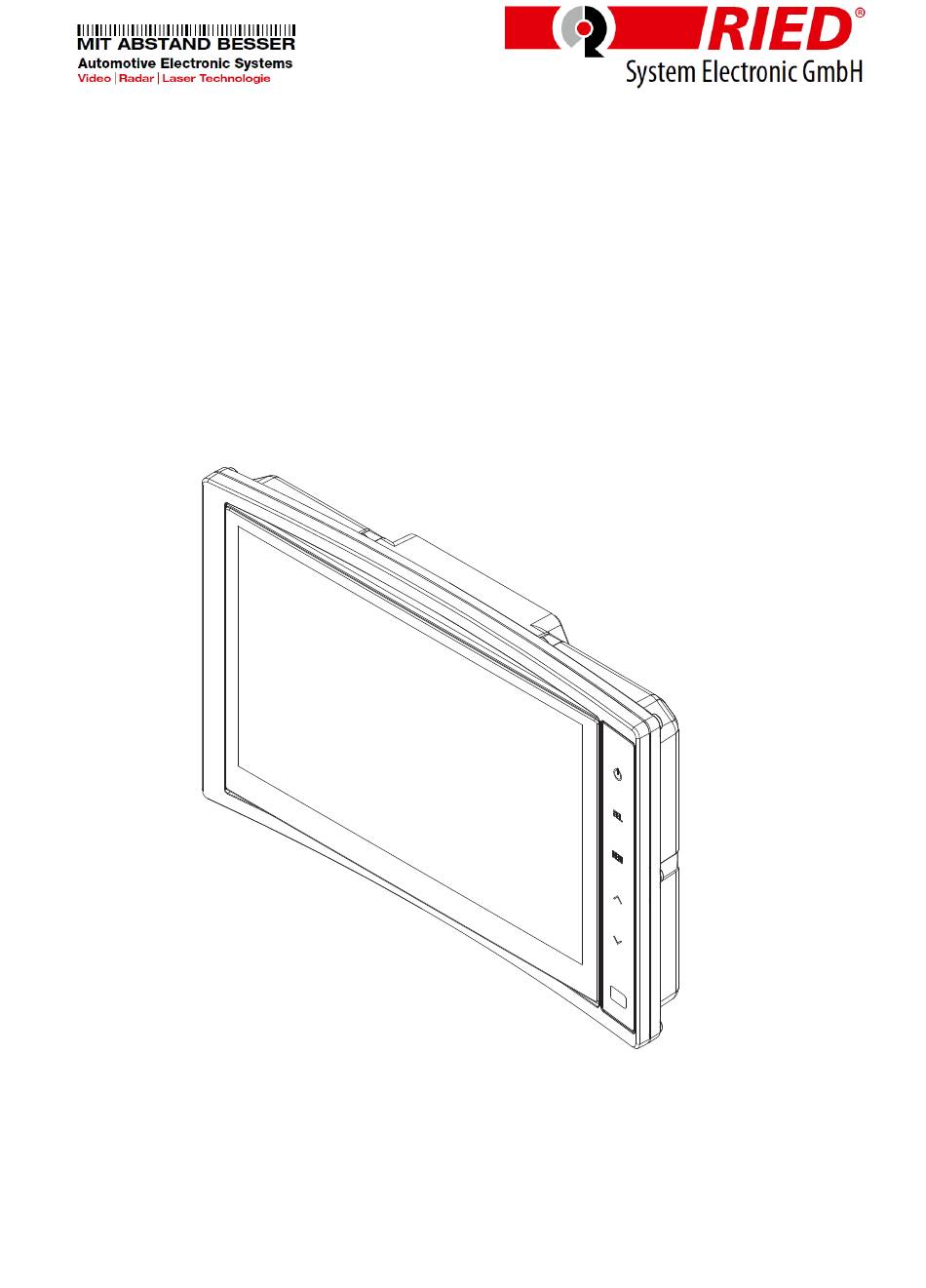

- Page 1 OWNER'S MANUAL PLEASE READ CAREFULLY BEFORE USING AND KEEP WELL. 7" DIGITAL WATERPROOF LCD MONITOR FOR HEAVY DUTY INDUSTRY Model: ControLaser QWP 800 Design and Specifications are subject to change without notice.
-
Page 2: Owner's Record
The model and serial numbers are located on the rear of the unit. Record the serial number in the space provided below. Refer to these numbers whenever you call upon your dealer regarding this product. Model No. ControLaser QWP 800 Serial No. WARNING To avoid electric shock, do not open the cabinet. - Page 3 CAUTION BEFORE USAGE 1. PLEASE USE THE PRODUCT AFTER READING THE MANUAL CAREFULLY FOR SAFE USAGE. PLEASE INSTALL AND USE THE PRODUCT AFTER FULLY AWARE Manual OF THE MANUAL AND PRECAUTION. 2. ASK EXPERIENCED TECHNICIAN FOR PRODUCT INSTALLATION. INSTALLATION SHOULD BE DONE BY THE TECHNICIAN DUE TO PROFESSIONAL SKILLS AND EXPERIENCE IS REQUIRED.
- Page 4 SAFETY&CAUTION DURING USAGE - DO NOT CUT OR DAMAGE THE CABLE RANDOMLY. IT CAN CAUSE PRODUCT MALFUNCTION OR WATERPROOF FUNCTION DEFECT. MANUFACTURER WILL NOT TAKE RESPONSIBILITY FOR THE MALFUNCTION. - TIGHTEN THE CONNECTORS WHEN CONNECTING THE EXTENSION CABLE. OTHERWISE, IT CAN CAUSE CONNECTION PROBLEM OR WATERPROOF FUNCTION DEFECT OF THE PRODUCT.
- Page 5 SAFETY&CAUTION DURING USAGE - DO NOT WRAP THE PRODUCT WITH ANY FABRIC WHILE OPERATING. DUE TO INTERNAL TEMPERATURE RISING, IT CAN CAUSE PRODUCT MALFUNCTION OR FIRE. - AVOID SEVERE ELECTROSTATIC CONDITION. IT CAN CAUSE PRODUCT MALFUNCTION. - DO NOT PILE UP HEAVY STUFF ON THE PRODUCT. IT CAN CAUSE PRODUCT PROBLEMS OR DAMAGE.
- Page 6 Never use strong solvents such as thinner or benzene as they might damage the finish of the unit. FEATURES ControLaser QWP 800 (7" Digital TFT LCD Monitor)is especially designed as automotive all round vision system. Water Proof (IP65) 7" Digital LCD Wide Panel...
-
Page 7: Package Contents
PACKAGE CONTENTS Please check that you have the correct contents before using this product. If any items are missing, please contact your dealer. ControLaser QWP 800 MONITOR STAND BRACKET SCREW KITS OPTIONAL OWNER'S MANUAL PLEASE READ CAREFULLY BEFORE USING AND KEEP WELL. - Page 8 OPERATIONS POWER SELECT MENU DOWN DAY/NIGHT SENSOR POWER Touch to turn the monitor on. Touch to turn the monitor off. NOTE NOTE Monitor start mode will follow “AUTO POWER SETTING” SELECT Touch to select CAMERA. Touch to select the option in SET UP MENU. MENU MENU to enter Display Menu(Short key) and...
-
Page 9: Display Menu
OPERATIONS DISPLAY MENU MENU MENU UP / DN SELECT SELECT UP / DN SELECT SELECT Short Key Option setting (more than 0.5 sec) D I S P L A Y M E N U B R I G H T (0~60) B R I G H T C O N T R A S T... -
Page 10: Setup Menu
OPERATIONS SETUP MENU Touch MENU button for a while (over 2 secs) to enter MAIN MENU. Selectable OSD MENU disappears within 7 secs if there is no new button pressed. M A I N M E N U → → MENU 1. - Page 11 OPERATIONS NOR/MIR : [MIRROR;NORMAL] NOTE NOTE Normal/Mirror image can be switched (CAM1~4;AUX) UP/DOWN : [UP;DOWN] NOTE NOTE Up/Down image can be switched (CAM1~4;AUX) NAME : [CAM1 CAM1~CAM4,AUX MENU UP / DN UP / DN UP / DN SELECT SELECT SELECT SELECT SELECT SELECT...
-
Page 12: Trigger Setting
OPERATIONS TRIGGER SETTING SOURCE:[CAM1~4;AUX;SPLIT1~3;SKIP] 2. TRIGGER SETTING Trigger1~5 SOURCE:[CAM1~4;AUX; TRIGGER1 SPLIT1~3;SKIP] TRIGGER2 D E L A Y : [ 0 ~ 2 0 s e c ] T R I G G E R 3 T R I G G E R 4 MARKER:[ON;OFF] MENU T R I G G E R 5... -
Page 13: Split Setting
OPERATIONS SPLIT SETTING 3. SPLIT SETTING SOURCE1~4:[CAM1~4;AUX;OFF] AUDIO:[CAM1~4;AUX;OFF] SOURCE1:[CAM1~4;AUX;OFF] S P L I T 1 SOURCE2:[CAM1~4;AUX;OFF] S P L I T 2 SPLIT1~SPLIT3 SOURCE3:[CAM1~4;AUX;OFF] S P L I T 3 SOURCE4:[CAM1~4;AUX;OFF] AUDIO:[CAM1~4;AUX;OFF] DISPLAY TYPE MENU UP / DN UP / DN SELECT SELECT SELECT... -
Page 14: Speed Switch
OPERATIONS SPEED SWITCH 4. SPEED SWITCH SPEED SWITCH:[ON;OFF] SPEED SWITCH: [ON;OFF] Select “ON” for entering the function. NOTE NOTE FREQUENCY:[10~1000Hz] UNDER FREQUENCY CH:[CAM1~4; Select “OFF” for getting out of the function. AUX;SPLIT1~3] OVER FREQUENCY DISPLAY:[ON;OFF] FREQUENCY:[10~1000Hz] OVER FREQUENCY CH:[CAM1~4; AUX;SPLIT1~3] Select activated frequency 10~1,000Hz. -
Page 15: Auto Scan Setting
OPERATIONS DAY/NIGHT SETTING 5. DAY/NIGHT SETTING SENSOR:[ON;OFF] SENSOR: [ON;OFF] Select”ON”for enter into the function. NOTE NOTE SENSITIVITY:[0~60] Select”OFF”for get out the function. NIGHT BRIGHT:[0~60] SENSITIVITY:[0~60] NOTE NOTE Adjust the sensitivity of day/night level NIGHT BRIGHT:[0~60] MENU UP / DN SELECT SELECT MENU shifting... -
Page 16: Advanced Menu
OPERATIONS ADVANCED MENU AUTO POWER:[OFF;ON;AUTO] 7 . A D V A N C E D M E N U AUTO POWER: [OFF;ON;AUTO] FACTORY RESET MENU UP / DN SELECT SELECT MENU shifting value setting exit to upper menu NOTE NOTE Auto Setting Monitor keeps the last setting in memory: Monitor will start up “Power-on”... -
Page 17: Installation
INSTALLATION DASH BOARD SCREW MONITOR 1-1. STAND BRACKET(SCREW FIXING TYPE) 1-2. STAND BRACKET(RAIL TYPE) -
Page 18: System Connections
SYSTEM CONNECTIONS POWER/TRIGGER WIRE FUNCTIONS WIRE COLOR DESCRIPTION PURPLE SPEED PURSE YELLOW TRIGGER5 ORANGE TRIGGER4 GREEN TRIGGER3 BROWN TRIGGER2 BLUE TRIGGER1 BL ACK GROUND POWER IN DC (10 to32V) FUSE VIDEO OUTPUT (YELLOW) (WHITE) AUDIO INPUT VIDEO INPUT (YELLOW) 4P IP TYPE 4P DIN TYPE CAMERA (Not supplied) CAMERA CONNECTOR... -
Page 19: Specifications
SPECIFICATIONS Model: ControLaser QWP 800 Power Input DC 10V~32V Power Consumption Max. 30Watt Video System NTSC / PAL compatible Panel 7" Digital Resolution 800 (H) X3(RGB) X 480 (V) pixels Format 16:9 wide Display Mode Single/Split/Triple/Pip/Quad Camera input(4CH) Mini 4P DIN CONNECTOR or 4P IP CONNECTOR , 1Vp-p 75Ω... - Page 20 ELECTRICAL / ELECTRONIC COMPONENTS MAY CONTAIN SUBSTANCES WHICH ARE HARMFUL TO THE ENVIRONMENT. FOR ENVIRONMENTALLY SOUND METHODS OF DISPOSAL, PLEASE CONTACT YOUR LOCAL GOVERNMENT AUTHORITY. “Perfect Quality, On-time Delivery & Speedy A/S" Part no. ControLaser QWP 800 printed in korea...
