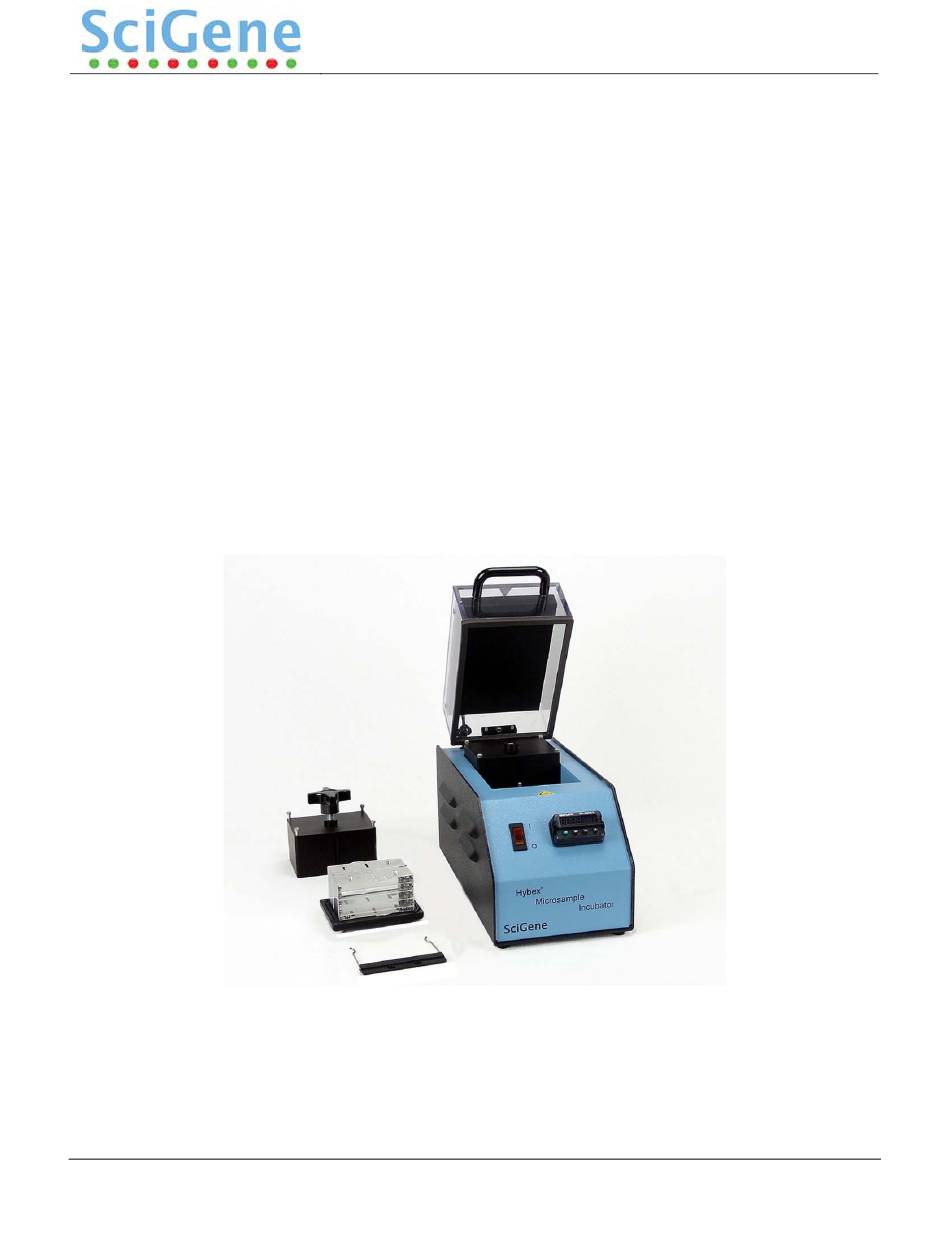

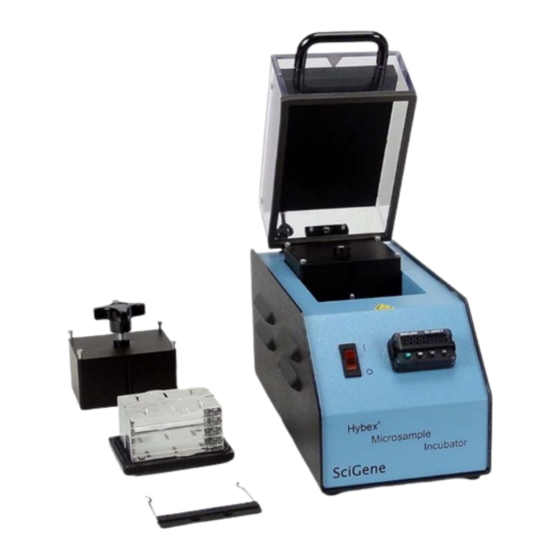

- Page 1 Hybex ® Microarray Incubation System USER MANUAL Cat. #1057‐36‐1 (115V) and 1057‐36‐2 (230V) FOR RESEARCH USE ONLY 1287 Reamwood Avenue, Sunnyvale, CA 94089 USA • Tel 408‐733‐7337 • Fax 408‐733‐7336 • techserv@scigene.com...
- Page 2 Warranty SciGene warrants that the heating base described in this manual shall be free of defects in materials and workmanship for a period of 12 months from date of delivery. This warranty does not cover removable blocks or accessories. In the event of a defect during the warranty period, SciGene’s limit of liability will be to provide replacement parts at no charge or, at its sole discretion, replace the product.
-
Page 3: Table Of Contents
VIII. APPENDIX A – Using and Calibrating a Watlow SD31 Controller ..........15 Using the Watlow SD31 Temperature Controller................ 15 Calibrating the Watlow SD31 Temperature Controller ............... 15 DECLARATION OF CONFORMITY ....................16 Version 1.2H, April 2015 (408) 733‐7337, techserv@scigene.com... -
Page 4: Safety Notices
La Hybex système est destiné pour le chauffage d'échantillons biologiques. L'instrument ne devrait servir que selon les instructions fournies dans ce manuel de l'utilisateur et d'autres documents techniques de SciGene. Si l'équipement est utilisé de manière non spécifiée par le fabricant, la protection assurée par l'équipement peut être compromise. -
Page 5: Warnings
This symbol indicates the presence of hazardous voltage. Always disconnect the power cord before servicing. Ce symbole indique la présence d' une tension dangereuse. Toujours débrancher le cordon d'alimentation avant l'entretien. Version 1.2H, April 2015 (408) 733‐7337, techserv@scigene.com... -
Page 6: Cautions
Contact your institution to provide environmentally safe disposal. If this is not available, contact your local SciGene distributor or SciGene Technical Support [techserv@scigene.com] for assistance. Do not treat electrical and electronic equipment as unsorted municipal waste. -
Page 7: Unpacking And Set Up
See Section III. B. Handling Microarray Chambers for how to insert and remove chambers. Allow 15 inches of vertical clearance to open the lid. Allow 3 inches of clearance at the back for the power cord. Allow 3 inches of clearance on both sides Version 1.2H, April 2015 (408) 733‐7337, techserv@scigene.com... -
Page 8: Using The Hybex Microarray Incubation System
*Heat Block for 1.5 ml Tubes *Heat Block for 0.2 ml Tubes or Plate Cat. #1057‐34‐0 Cat. #1057‐31‐0 *Heat Block for 0.6 ml Tubes *Heat Block for Flat Bottom Microplate Cat. #1057‐33‐0 Cat. #1057‐39‐0 *Optional accessories Version 1.2H, April 2015 (408) 733‐7337, techserv@scigene.com... -
Page 9: Microarray Chamber Components
Microarray Chamber Kit. O-ring for chamber base 1057-38-0 100-2004-04 Includes: 2x chambers, 4x slide Chamber base racks, 2x chamber handles, 2x spring handles and T-handle hex wrench. See Section VII. ORDERING INFORMATION for additional details. Version 1.2H, April 2015 (408) 733‐7337, techserv@scigene.com... -
Page 10: Using Microarray Chambers And Slide Racks
Loosen the corner screws on the cover to lift it from the base. If needed, gently apply pressure with the flat edge of a screwdriver to separate the cover from the base, taking care not to damage the sealing edge. Version 1.2H, April 2015 (408) 733‐7337, techserv@scigene.com... -
Page 11: Handling Optional Tube Blocks And Waterbath Insert
8. Transfer Slide Racks to Waterbath Gently push each slide rack toward the edge of the base and lift to release. Immediately transfer to a waterbath insert (SciGene cat. #1057‐35‐0) in a second Hybex instrument or other container of preheated wash solution. Lay each slide rack on its back to allow the coverslips to fall away. -
Page 12: Calibrating The Temperature Controller
35 to 99°C. Calibration is required only if the controller displays a block temperature which differs by more than one degree (1°C) from a NIST calibrated T‐type digital thermometer (sold separately, SciGene cat. #1051‐52‐0). Contact SciGene Customer Service (custserv@scigene.com) or your local distributor to purchase a thermometer. -
Page 13: Maintaining The Hybex Microarray Incubation System
Secure the pad with the original nylon screw. Do not over tighten. Contact SciGene Customer Service (custserv@scigene.com) or your local distributor to purchase replacement pads. -
Page 14: Checking And Replacing Fuses
2. Push down to release the fuse block. 3. Slide fuse holder out from the fuse block while holding the retaining tab out of the way. 4. Gently pry out the fuses. Version 1.2H, April 2015 (408) 733‐7337, techserv@scigene.com... -
Page 15: Troubleshooting
Blown fuse(s). Replace fuse(s) on back of unit, beneath power cord receptacle. Controller is not responding Controller needs to Contact SciGene or your distributor to when buttons are pressed. be reset or is faulty. reset or replace the controller. VI. SPECIFICATIONS Electrical Cat. -
Page 16: Appendix A - Using And Calibrating A Watlow Sd31 Controller
Re‐calibrating the Hybex temperature controller is recommended only if the display varies by more than one degree (1°C) to a connected NIST‐certified T‐type digital thermometer (SciGene cat. #1051‐52‐0). To adjust the controller to achieve accurate temperatures: 1. Insert a block into the Hybex incubator, turn ON the instrument and set the controller to 65°C. -
Page 17: Declaration Of Conformity
RoHS Directive 2011/65/EU Terry Gill Sunnyvale, California, USA Name of Authorized Representative Place of Issue Director of Product Manufacturing September 22, 2014 Title of Authorized Representative Date of Issue Signature of Authorized Representative Version 1.2H, April 2015 (408) 733‐7337, techserv@scigene.com...
