CHARGING INSTRUCTION
The charging cradle assembly
includes:
Charging cradle
Extension cable
Plug Adapter
(Plug Adapter varies
depending on region
and only is provided
when necessary)
Extension Cable
Cradle
Plug Adapter

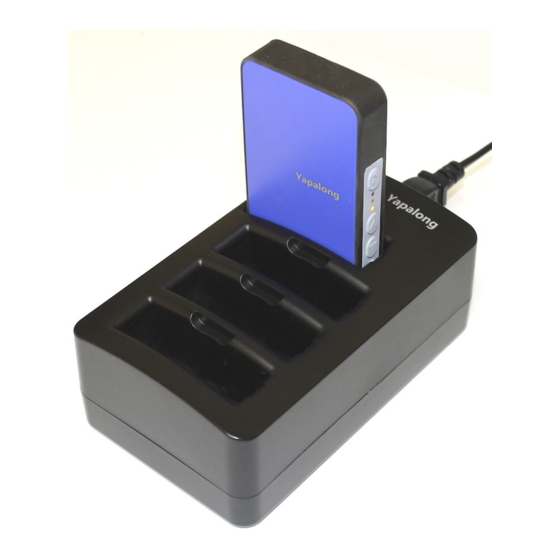

Insert the radio(s) into the cradle as
shown. Make sure the front of the
radio(s) face the front of the cradle.
CHANGING LIGHT
INDICATIONS
Green light is solid:
Battery is fully charged
Amber light is solid:
Battery is being charged
Amber light blinks every 5 seconds:
1st battery low level warning
Amber light blinks every 2 seconds:
2nd battery low level warning. It
turns off in 15 minutes automatically.
If the cradle is not available,
you may use a charging
adapter, shown here. Make
sure to use the cable with 1.3
mm barrel connector not 1.0
mm barrel, which is for
1.3 mm barrel
connector
8-User
Full-Duplex Radio
YAPALONG 5001
YOU ARE RECEIVING THE FOLLOWING:
YOU ARE RECEIVING THE FOLLOWING:
User's Manual
Please activate your warranty @ yapalong.com/pages/warranty
BELT CLIP
MOUNT
BATTERY
COVER
DUAL AUDIO JACK
CHARGING PORT
7895 Tranmere Dr., Unit 13
Mississauga, Ontario L5S 1V9 Canada
Email : info@yapalong.com
Phone : 1-(905)-405-0300
MUTE
LED
UP
DOWN
MIC SENS
POWER
Follow us on
V0
Advertisement
Table of Contents
Related Manuals for Yapalong YAPALONG-5001
Summary of Contents for Yapalong YAPALONG-5001
- Page 1 User’s Manual Extension Cable Cradle Please activate your warranty @ yapalong.com/pages/warranty Plug Adapter Insert the radio(s) into the cradle as shown. Make sure the front of the radio(s) face the front of the cradle.
-
Page 2: Specifications
2C CABLE & DUALGROUP Overall Latency 25 ms Yapalong 2C Cable contains a 2C Switch. 2C Switch is a one-inch long 129mm x 66mm x 21mm Size waterproof rock switch. One end of 2C Cable is a two-pin plug that can... -
Page 3: Get Started
GET STARTED SAFETY WARNING! Don’t hold Yapalong too close to your head when in use. 1. Turn the unit on by holding down POWER button for 2 seconds until RED LED turns on. INDUSTRY CANADA COMPLIANCE STATEMENT 2. If the AMBER LED blinks every 2 or 5 seconds or there is no LED This device contains licence-exempt transmitter(s)/receiver(s) that comply with light at all, the battery needs to be charged. - Page 4 Partial RF absorption B. ORDER FOR BINDING LISTENER UNITS LISTENER units can be added to existing Yapalong group as listen-only units. Regardless of the previous grouping state, the entire group has to be bound again. The binding procedure is the same as the one for REGULAR units.
-
Page 5: Battery Replacement
C. ADDITIONAL INFO FOR BINDING DUALGROUP BATTERY REPLACEMENT The first binding unit must be Yapalong-5001. The brief procedure goes: 1. Get a slotted screwdriver. Insert the tip of the screwdriver into the slot of the battery cover. With a little twist, pry the 1. -
Page 6: Keypad Instructions
FORCE SYNC. If still does not resume, please being muted. When the restart the radio. microphone is muted, other Yapalong units cannot hear you Has detected other unit(s) of Normal intensity but you can hear the others.
