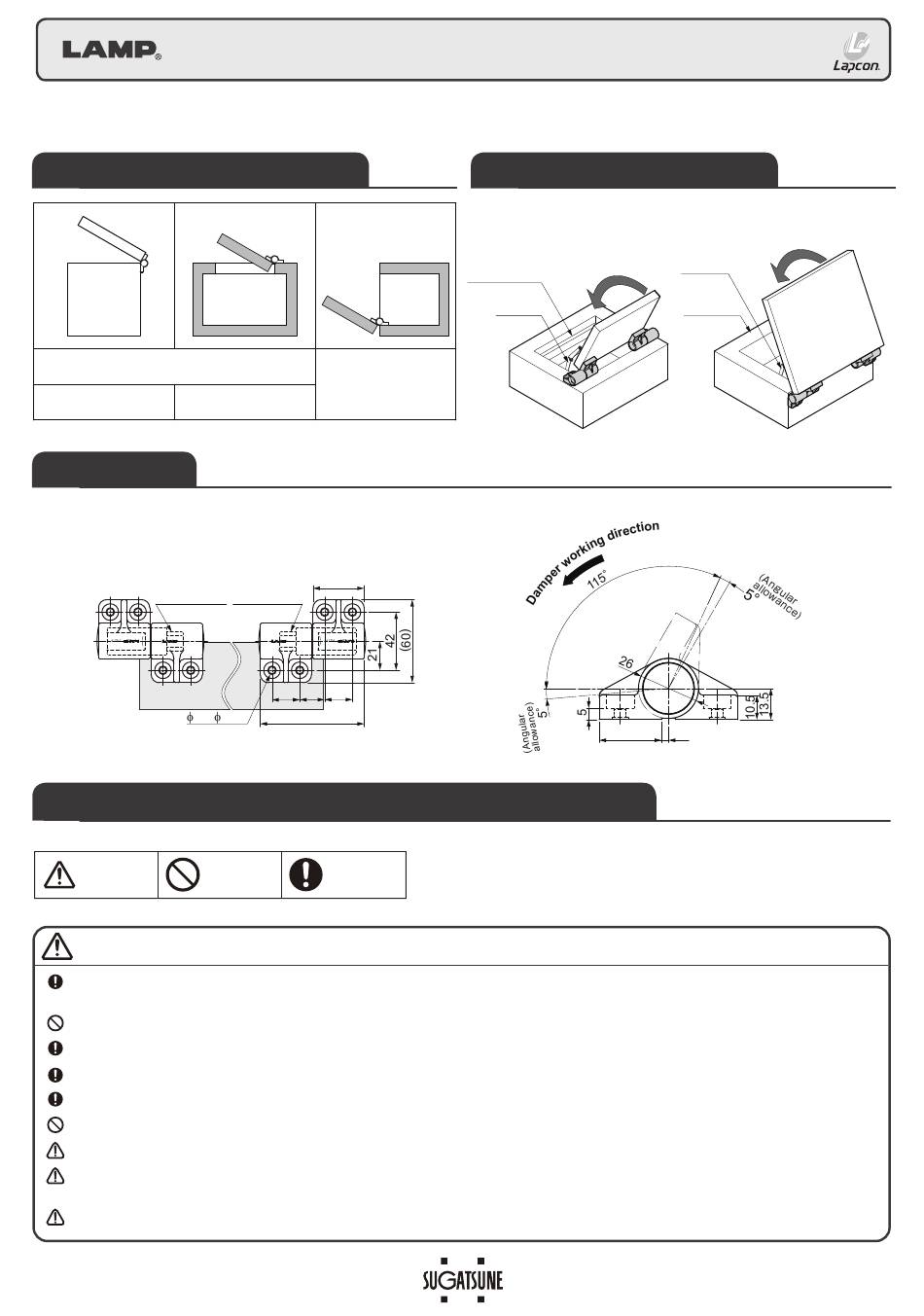

SUGATSUNE Lapcon LAMP HG-JH Installation Manual

HG-JH DAMPER HINGE INSTALLTION MANUAL
Thank you for selecting our product. Before starting installation, please read this manual thoroughly to ensure correct installation.
Please keep this manual at hand for future reference.
APPLICABLE LID AND DOOR
Lid (external fitting)
Overlay
DIMENSIONS
White Shaft
(left)
PAT.P
5.3, 12.5
FOR YOUR SAFE WORK AND CORRECT INSTALLATION
Meaning of symbols
Warning
Prohibited
Caution
Caution
If not followed, injury or damage may result.
This product should be mounted on a surface which has enough strength to hold the moment of the lid. If not, the lid may fall and
cause injury.
Do not use this product for applications outside of its specification.
Use stays and stoppers with the dampers to prevent over rotation. If not the damper may be damaged.
Align the axis of both hinges. If not, malfunction or damage will result.
When mounting the hinges to an inclined surface, contact us.
Do not use excessive force as this may result in damage.
If the lid is released at a low angle, the damper may not work properly.
If the operating temperature increases, the door movement becomes quicker. If the temperature decreases, movement
becomes slower. This is not a mechanical problem.
The cap will loosen after several times of detachment.
Downward opening
door
Inset
(internal fitting)
37
Gray Shaft
(right)
PAT.P
Lid
20 18 20
(75)
Required
APPLICATION EXAMPLES
Damper working
direction
Stopper
(cabinet end)
Stopper
(stay)
Lid (inset)
「Closed」
27
Damper working
direction
Stopper
(stay)
Stopper
(Butt)
Lid (overlay)
「Open」
(3)
1
