GAF Master Flow Green Machine PGSOLAR Instructions Manual

Safety Considerations and Warnings
1. Use appropriate safety glasses, gloves,
hard hats, restraints, and other equipment
to avoid injury.
2. Wear durable work gloves while handling the unit
during installation. This product has sharp edges
that can cause injury.
3. Observe all applicable building codes in your area.
4. Do not damage electrical wiring or other hidden
utilities when cutting or drilling.
5. Before servicing the unit, disconnect power leads from
solar panel to prevent accidental operation.
6. Make sure blade is on tight and ensure the set screw
is securely tightened.

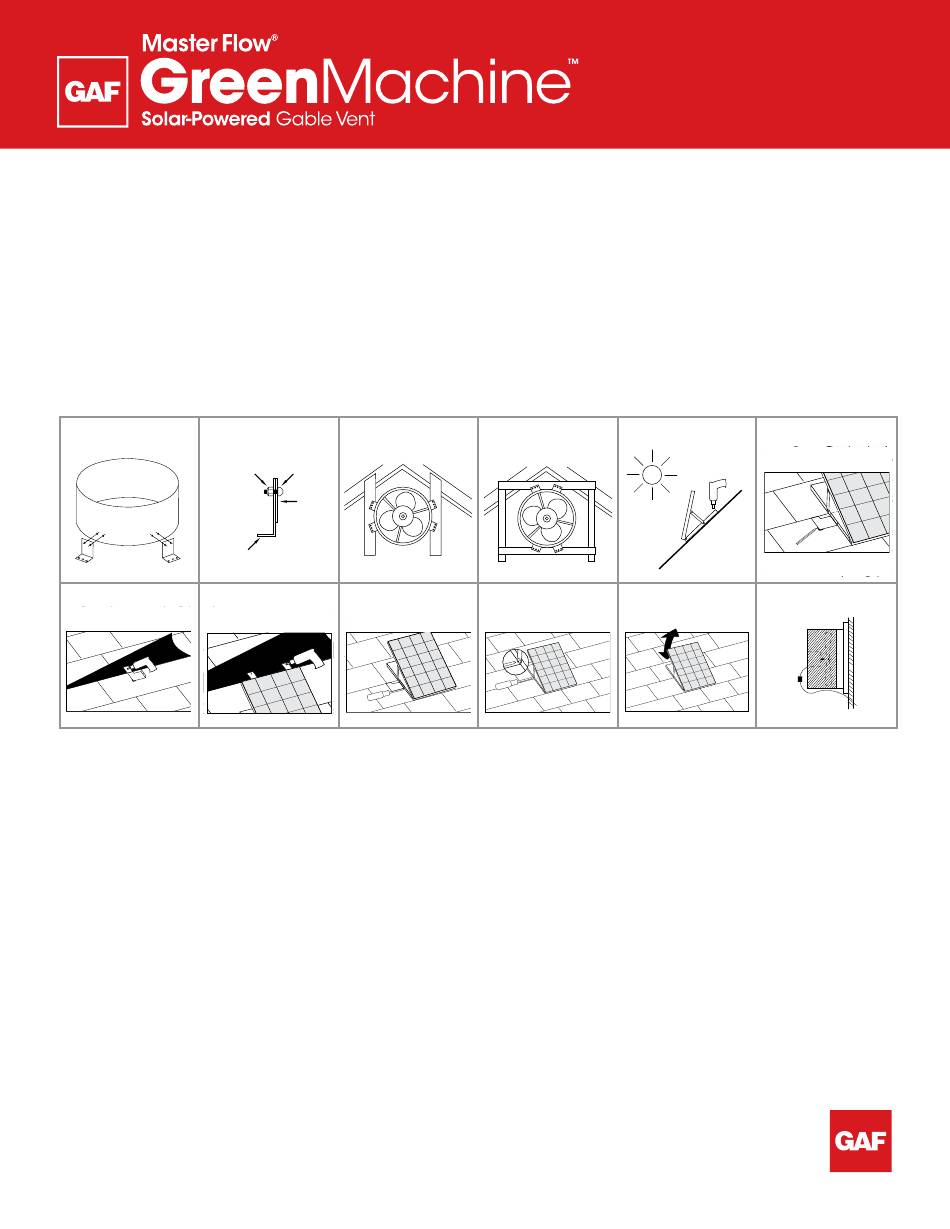

Figure 1a Figure 1b
MOUNTING
BRACKETS
Figure 4b Figure 4c
V971247
7. Use this unit only in the manner intended by GAF.
If you have any questions, please contact Master Flow
Technical Services at 1-800-211-9612.
8. Ducted fans must always be vented to the outdoors.
Important: Your solar panel configuration may differ
slightly from the one shown in the illustrations. The
performance of all configurations is the same.
CAUTION: THIS UNIT IS FOR GENERAL VENTILATING
USE ONLY. DO NOT USE TO EXHAUST HAZARDOUS OR
EXPLOSIVE MATERIALS OR VAPORS. THIS FAN HAS AN
UNGUARDED IMPELLER. DO NOT USE IN LOCATIONS
READILY ACCESSIBLE TO PEOPLE OR ANIMALS.
Figure 2a
NUT BOLT
SHROUD
Figure 4d
INSTRUCTIONS
MODEL: PGSOLAR
Note: In the unlikely event that parts and/or
accessories are missing, or this product does not
®
operate correctly, contact Master Flow
Services at 1-800-211-9612 or WarrantyLLBP@gaf.com.
Do NOT return to retailers or distributors.
Tools Required
• Drill • Extension cord •
or adjustable wrench • Utility knife • Wood screws •
Power saber or jigsaw and handsaw • Safety eyewear
• Hard hat and other safety equipment • Fall-restraint
equipment • Caulking gun • ASTM D4586 Type 1 or 2
asphalt roofing cement or ASTM C920 urethane sealant
• Work gloves • Ladder • Phillips-head screwdriver
• Pencil or marker
Figure 2b Figure 3
SOUTH
Figure 5a Figure 5b
We protect what matters mos t
Technical
®
/ " Socket wrench • / " Socket
3 7
8 16
Figure 4a
Figure 6
MOTOR
EXHAUST SLATS
WIRE
CONNECTOR
WIRE TO
SOLAR PANEL
™
