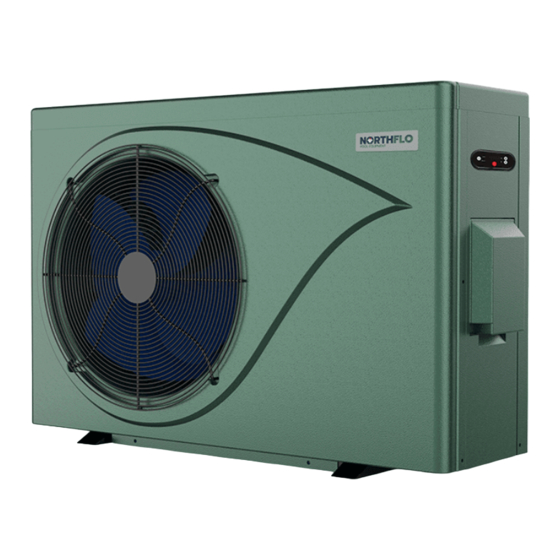

NorthFlo PSNF50VS Manual

NorthFlo PSNF50VS Manual

Inverter heat pump for swimming pools
Table of Contents

Advertisement

Available languages

Available languages

NorthFlo Variable Speed
PSNF50VS-PSNF65VS-
PSNF90VS-PSNF110VS-PSNF140VS
Inverter Heat Pump for Swimming Pools
Please read the manual in real time

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSNF50VS and is the answer not in the manual?

Questions and answers

Marc
June 14, 2025

If I have an existing water pump for my pool do I leave the electrical connection as as is or are you supposed to wire the water pump into terminals p1 and p2. Or is the water pump an accessory you can buy to boost heater flow?

Summary of Contents for NorthFlo PSNF50VS

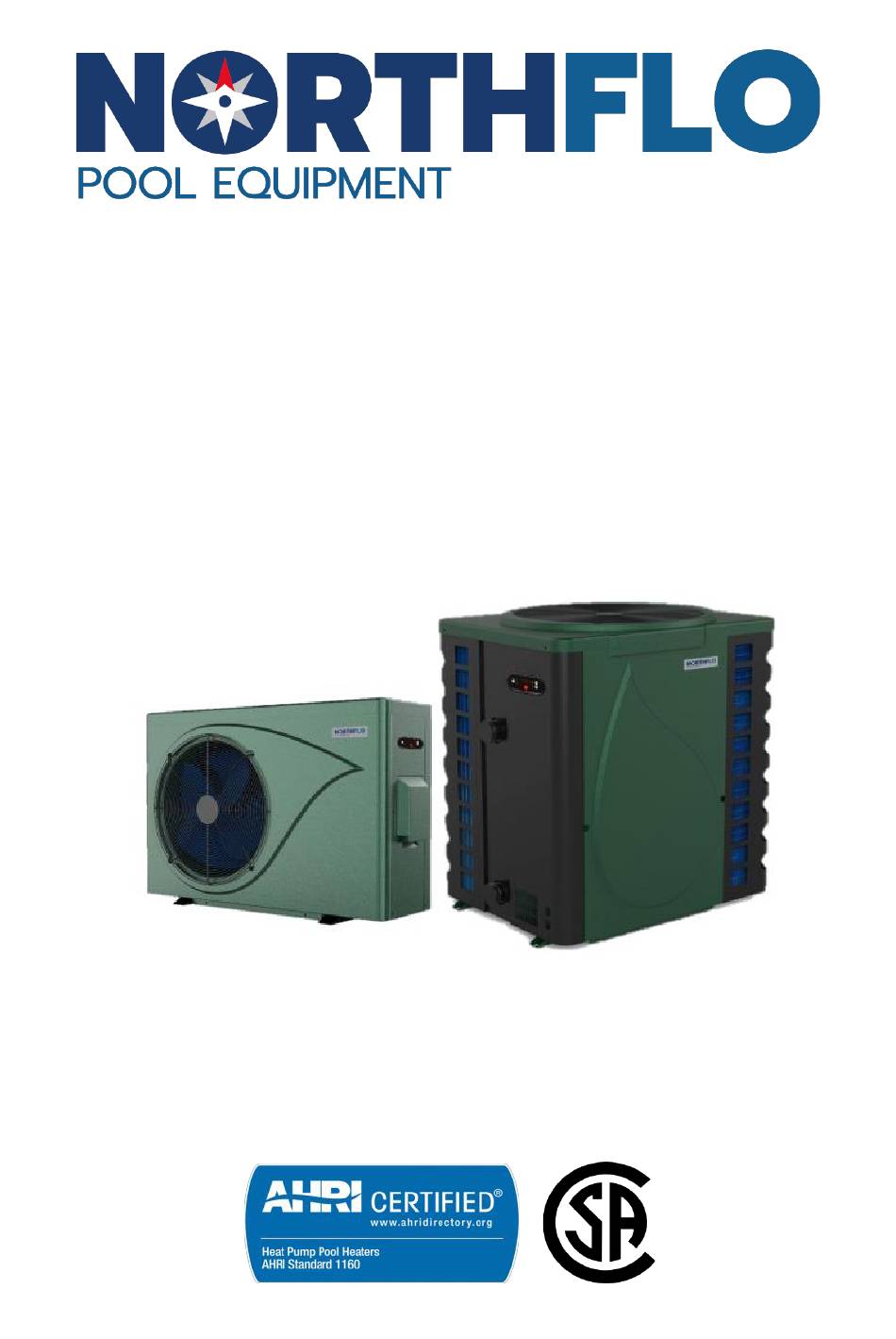

  • Page 1 NorthFlo Variable Speed PSNF50VS-PSNF65VS- PSNF90VS-PSNF110VS-PSNF140VS Inverter Heat Pump for Swimming Pools Please read the manual in real time...
  • Page 3: Table Of Contents

    Content Application ....................2 Features ....................2 III. Technical Parameter ................3 Dimension ....................4 Installation instruction ................5 Operation instruction ................8 VII. Testing .....................9 VIII. Precautions ...................10 Maintenance ..................10 Trouble shooting for common faults ..........11 Warranty & After-Service ..............13...
  • Page 4 Thank you for trusting a NorthFlo Variable Speed Heat Pump for your pool! Please read this instruction manual carefully and operate strictly according to the user manual before starting the heat pump, otherwise the heat pump may be damaged or cause you unnecessary harm.
  • Page 5: Application

    I. Application 1- Set swimming pool water temp efficiently and economically to provide you comfort and pleasure. 2- User may choose the model technical parameter according to professional guide, this series of swimming pool heater has been optimized in factory (refer to technical parameter table).
  • Page 6: Technical Parameter

    III. Technical Parameter Model PSNF50VS PSNF65VS PSNF90VS PSNF110VS PSNF140VS ≤11 000 ≤16 000 ≤20 000 ≤26 000 ≤31 000 Recommended Pool Volume (gallons) ≤42 000 ≤60 000 ≤80 000 ≤100 000 ≤118 000 Recommended Pool Volume (litres) 32~109 Operating air temperature (°F) Performance Condition: Air 80°F/ Water 80°F/ Humidity 80%...
  • Page 7: Dimension

    For details please refer to nameplate. IV. Dimension Size(inch) Name Model PSNF50VS 12.4 23.2 12.3 13.4 37.8 13.0 25.9 PSNF65VS 15.6 23.2 15.4 16.5 37.8 14.2 25.9 PSNF90VS 15.6 28.3 15.4 16.5 43.0 24.4 37.7 Size(inch) Name Model 36.3...
  • Page 8: Installation Instruction

    Note: The picture above is the specification diagram of the pool heater, for technician’s installation and layout reference only. The product is subject to adjustment periodically for improvement without further notice. V. Installation instruction 1. Drawing for water pipes connection. (Notice:The drawing demonstration and layout of the pipes is only for reference.)...
  • Page 9 Note:The swimming pool heater must be grounded. Options for protecting devices and cable specification PSNF90VS MODEL PSNF50VS PSNF65VS PSNF110VS PSNF140VS Rated Current Breaker Rated Residual Action Current 4Fuse Power Cord (AWG) 2×12 2×10 2×10 2×10 2×8 Signal cable (AWG) 2×20 2×20...
  • Page 10 2) Heater must be grounded. 3) Wiring must be handled by a professional technician according to the circuit diagram. 4) NorthFlo VS units do not require a GFCI to function. If required by code, please respect following guidelines. Set GFCI according to the local code for wiring (current leakage ≤ 30mA).
  • Page 11: Operation Instruction

    VI. Operation instruction Picture for keys Symbol Designation Operation Power ON/OFF Press to power on or off the heat pump Up/ Down Press to set desired water temperature Press to select Silence mode Note: 1. You may set the desired water temperature from 65 to 104℉. 2.
  • Page 12: Testing

    2.2.1 Mode Selection There are 2 modes: “Smart” mode (operates from 20% to 100%), “Silence” mode (operates from 20% to 80%). “Smart” mode will display automatically when the heat pump is turned on, the light of “Smart” mode will be on. to switch to “Silence”...
  • Page 13: Precautions

    Precautions VIII. Attention A. Set proper temperature in order to get comfortable water temperature; to avoid overheating; B. Please don’t stack substances that can block air flow near inlet or outlet area, or the efficiency of the heater will be reduced or even stopped; C.
  • Page 14: Trouble Shooting For Common Faults

    B.Please clean the heater’s coil with household detergents or clean water, NEVER use gasoline, thinners or any similar fuel. C.Check bolts, cables and connections regularly. X. Trouble shooting for common faults Failure Reason Solution No power Wait until the power recovers Swimming Power switch is off Switch on the power...
  • Page 15 Failure code Display Not failure description No water protection Power supply excesses operation range Excessive temp difference between inlet and outlet water(Insufficient water flow protection) Ambient temperature too high or too low protection Anti-freezing reminder Display Failure description High pressure protection Low pressure protection Phases lack protection (three phase model only) Water outlet temp too high or too low protection...
  • Page 16: Warranty & After-Service

    XI. Warranty & After-Service PSNF products are managed by Moov Pool Products in Canada. Please note NorthFlo is not a brand owned by Moov Pool Products. Only PSNF models listed above are managed by Moov Pool Products. Warranty will be confirmed by Moov Pool Products and pertaining owner of NorthFlo brand.
  • Page 17 NorthFlo Variable Speed PSNF50VS-PSNF65VS-PSNF90VS- PSNF110VS-PSNF140VS Inverter Heat Pump for Swimming Pools Please read the manual in real time...
  • Page 18 Content Utilisation ....................17 Caractéristiques ...................17 III. Paramètres techniques ...............18 Dimension .....................19 Instruction d’installation ...............20 Mode d’emploi ..................23 VII. Vérifications ..................24 VIII. Précautions ...................25 Entretien ....................26 Dépannage en cas de défaillances courantes ........27 Warranty & After-Service ..............29...
  • Page 19 Merci de faire confiance à NorthFlo Variable Speed pour votre piscine! Lisez ce manuel attentivement et opérez l’unité tel qu’expliqué ci-dessous sans quoi l’unité pourrait s’endommager ou vous blesser. Portez une attention particulière aux consignes suivantes : A. Cet appareil est conçu uniquement pour chauffer l’eau d’une piscine et ne peut être utilisé...
  • Page 20: Utilisation

    Utilisation 1. Réglez la température de l’eau de la piscine de façon adéquate, tout en considérant les coûts, pour en profiter pleinement. 2. L’utilisateur peut choisir les paramètres techniques du modèle selon le guide professionnel; cette gamme de thermopompes pour piscine a été optimisée en usine (consultez le tableau des paramètres techniques).
  • Page 21: Paramètres Techniques

    Paramètres techniques III. Modèle PSNF50VS PSNF65VS PSNF90VS PSNF110VS PSNF140VS ≤11 000 ≤16 000 ≤20 000 ≤26 000 ≤31 000 Recommended Pool Volume (gallons) ≤42 000 ≤60 000 ≤80 000 ≤100 000 ≤118 000 Recommended Pool Volume (litres) 32~109 Température fonctionnel d’air ambiant (°F)
  • Page 22: Dimension

    2. Les paramètres définis ci-dessus sont sujet à changement ou ajustement de façon périodique pour le développement du produit et ne sont pas communiqué directement. Consultez toujours les informations sur la plaquette du produit. Dimension Size(in) Modèle PSNF50VS 12.4 23.2 12.3 13.4 37.8 13.0...
  • Page 23: Instruction D'installation

    Size(in) Modèle 36.3 17.6 35.6 37.2 27.8 20.9 38.5 PSNF110VS 38.5 17.8 37.7 39.4 27.2 25.6 37.0 PSNF140VS Les données ci-dessus peuvent varier légèrement.. Note: L’image ci-dessus représente le diagramme des spécifications de la thermopompe en vue de l’installation par le technicien et se veut uniquement un plan de référence. Dans le but d’améliorer le produit, il peut faire l’objet d’ajustement périodique sans préavis.
  • Page 24 (Notice:Ce diagramme du plan de la tuyauterie ne sert qu’à titre de référence.) 2. Electric Wiring Diagram Note:La thermopompe doit être mise à terre et le raccordement doit être filaire. Options pour protéger les appareils et spécifications pour les câbles. PSNF90VS MODEL PSNF50VS PSNF65VS PSNF110VS PSNF140VS Rated Current Breaker...
  • Page 25 5) Lorsque la thermopompe fonctionne, de l’eau de condensation sera évacuée par une sortie dans le bas de l’appareil. Veuillez insérer l’embout de drainage (accessoire offert avec le modèle PSNF50VS-PSNF65VS) dans le trou en vous assurant de bien le fixer et, ensuite, raccordez un tuyau pour que l’eau condensée puisse s’évacuer.
  • Page 26: Mode D'emploi

    Mode d’emploi Image du clavier Symbol Designation Operation Power ON/OFF Allumer/Éteindre l’unité Up/ Down Ajuster la temperature désiré Sélectionner le mode désiré Note:...
  • Page 27: Vérifications

    1. Choisissez la temperature désiré entre 65’F et 104’F. 2. Seulement la temperature rentrant est affichée sur la thermopompe; la température à la sortie de l’unité sera plus chaude de 2’F à 4’F. Vous verrez la température désiré seulement en appuyant sur les touches pour ajuster la température.
  • Page 28: Précautions

    raccordement. Vérifiez le câblage électrique ainsi que la connexion de mise à la terre et assurez-vous qu’ils sont conformes au schéma de câblage. Assurez-vous que l’interrupteur principal de la thermopompe est en position « OFF ». iii. Vérifiez les réglages de température. Vérifiez l’entrée et la sortie d’air.
  • Page 29: Entretien

    immédiatement le courant et communiquez avec votre détaillant, installateur local ou Moov Pool Products. Ne tentez pas de réparer la thermopompe vous-même. Afin de prévenir les incendies, n’utilisez pas ou n’entreposez pas de gaz ou de liquides combustibles, comme des diluants, de la peinture ou de l’essence près de la thermopompe.
  • Page 30: Dépannage En Cas De Défaillances Courantes

    2. Drainez toute l’eau qui se trouve dans la thermopompe. 3. Couvrez la thermopompe lorsque vous ne l’utilisez pas. !!Important : Dévissez l’embout de drainage du tuyau d’entrée pour permettre à l’eau de s’écouler. Durant l’hiver, lorsque l’eau gèle à l’intérieur de l’appareil, l’échangeur thermique en titane peut être endommagé.
  • Page 31 Codes d’erreurs NO. Affichage Description de pas de panne Protection manque de débit d’eau Anomalie dans la puissance d’alimentation Différence de température entre l’entrée et la sortie trop élevée (protection du débit d’eau insuffisant) Protection température ambiante trop élevée/faible Rappel anti-congélation NO.
  • Page 32: Warranty & After-Service

    XI. Warranty & After-Service Les produits PSNF sont gérés par Moov Pool Products au Canada. Prenez note que NorthFlo n’est pas une marque appartenant à Moov Pool Products. Seul les unités PSNF décrites ci-dessus sont gérés par Moov Pool Products. La garantie sera confirmée par Moov Pool Products et le propriétaire de la marque NorthFlo.

This manual is also suitable for:

Psnf65vsPsnf90vsPsnf110vsPsnf140vs
