I n s t a l l a t i o n G u i d e

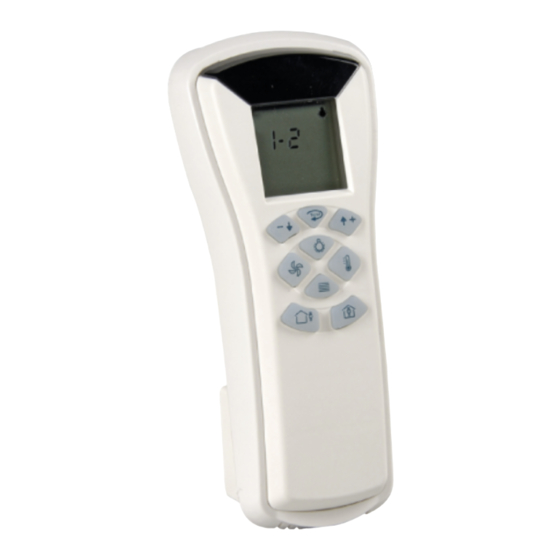

EC-Remote
Remote controls for personalizing environmental parameters
Product Description
The EC-Remote Series remote control allow users to remotely manage all the comfort parameters of a room: lighting, sunblind, temperature, fan speed,
and occupancy.
These technologies can be linked to infrared accessories such as multi-sensors, receivers, etc. The remote control sends commands to these acces-
sories to control lighting, sunblind or HVAC controllers.
The EC-Remote Series remote control can be either wall-mounted or used as stand-alone remote control to which wall-mounted stands may be associ-
ated.
For more information on how to use the EC-Remote Series remote control, see the End-User Manual.
Mounting Instructions
For wall-mounted use, install the remote control 1.5 m (4.9 ft) from the ground, lined up with the receiver in order to optimize the range
For reliable measurements when using the optional embedded temperature sensor, keep the remote control on its stand far from air conditioning and
venting air flows and do not expose to direct light (windows, lighting, etc.).
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Distech Controls EC-Remote Series
Summary of Contents for Distech Controls EC-Remote Series
- Page 1 Remote controls for personalizing environmental parameters Product Description The EC-Remote Series remote control allow users to remotely manage all the comfort parameters of a room: lighting, sunblind, temperature, fan speed, and occupancy. These technologies can be linked to infrared accessories such as multi-sensors, receivers, etc. The remote control sends commands to these acces- sories to control lighting, sunblind or HVAC controllers.
- Page 2 Figure 1: Wall-mounted stand (removable remote control) Figure 2: Wall-mounted stand (fixed remote control) 2 / 6...
- Page 3 Communication with EC-Remote-I/ EC-Remote-IT – Infrared Remote Controls This section indicates how to initiate the communication between the infrared remote control and its receiver through the attribution of a zone address. This zone address has to be set to between 0 and 30, and it has to be configured at the controller level (see the controller documentation for more de- tails).
- Page 4 Selecting the Number of Sunblind Groups Two sunblind groups are set by default. It is nevertheless possible to set 2, 4, or 8 sunblind groups, except for the ECW-Remote, which only manages 2 groups. To set the number of controlled sunblind groups: 1.
- Page 5 Activating/Deactivating Storing User Settings By default, any user action is stored (e.g., set temperature to +3, select automatic fan speed, etc.). You can freely activate or deactivate the storing of these settings when used in a bidirectional configuration. : ON is displayed; 1.
- Page 6 5. the temperature setpoint menu. Specifications subject to change without notice. ECLYPSE, Distech Controls, the Distech Controls logo, EC-Net, Allure, and Allure UNITOUCH are trademarks of Distech Controls Inc. BACnet is a registered trademark of ASHRAE; BTL is a registered ®...
