Summary of Contents for Maxair Premium Series

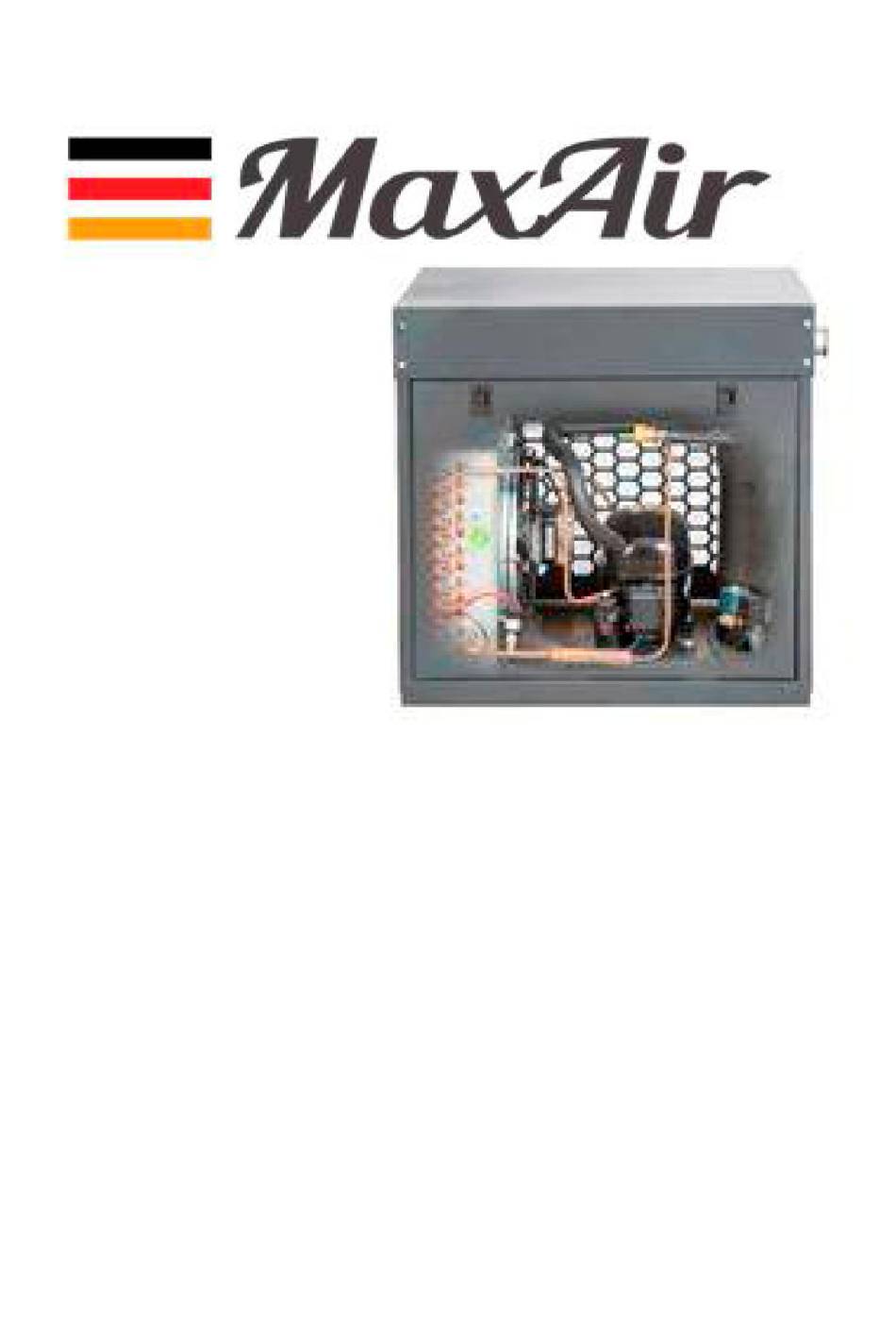

- Page 1 OPERATING MANUAL FOR REFRIGERANT COMPRESSED AIR DRYER MAX-900/160.000...
-
Page 2: Table Of Contents
Contents 1.1 Transportation 1.2 Placement 1.3 Installation 1.4 Maintenance General Information 2.1 Manufacturer information 2.2 Nameplate information 2.3 Operating principle... -
Page 3: Transportation
Operating 3.1 Front panel 3.2 On-off 3.3 Equipment characteristics Technical specifications Settings Fault codes and troubleshooting Warranty certificate and warranty conditions 1.1 TRANSPORTATION Air dryers should be transported by an appropriate forklifet. The equipment should be lifted at the market points and should not be turned down. 1.2 PLACEMENT ... -
Page 4: Installation
Chemicals that may be harmful for copper and aluminium (e.g. ammonia gas, etc.) should be sept and stored in the environment. The air dryer should not be subject to rainwater and direct sunlight. 1.3 INSTALLATION Air dryer should be installed only by a trained and authorized personnel. ... -
Page 5: General Information
Filter no. 5 should be cleaned with compressed air and water regularly. Otherwise, the drain solenoid valve may cause failure. GENERAL INFORMATION... -
Page 6: Manufacturer Information
2.1 Manufacturer Information Maksimum Makine Soğutma Sanayi ve Dış Tic. Ltd. Şti. İkitelli O.S.B. Aykosan San Sit. No.:22 Başakşehir / İstanbul Tel: +90 212 809 19 19 Fax: +90 212 809 19 18 www.maxdryer.com info@maxdryer.com 2.2 Nameplate of the air dryer 2.3 Operating Principle of the Air Dryer... - Page 7 a) When the dryer is switched on, it delivers the coolant to the system under high pressure and temperature and the compressor operates continuously without fail. b) The hot coolant is cooled down by fan in the condenser to make it liquid. And fan operation is controlled by the pressure switch or heat sensor mounted at the condenser outlet.
- Page 8 Figure. Heat exchanger of he air dryer 3.1 FRONT PANEL...
- Page 10 3.2 ON/OFF Press on-off button ( ) and hold for 3 seconds to switch on the equipment. When the button is held pressed, it counts 1---2---3 seconds on the display and the statement (open) ( ) appears on the display. To switch off the equipment, hold o-off button for 3 seconds again. When the equipment is switched off, the statement (OFF) appears on the display and the equipment is closed.
- Page 11 Max series air driers have microprocessor controlled electronic board. 2 heat exchanger on this board performs measurement continuously. The 1 sensor controls the dew temperature. And the sensor controls the condenser temperature of the equipment and, in some version, the temperature of the refrigerating compressor to ensure the equipment to operate safely.
- Page 46 8. SETTINGS Setting the condensate drain time: Press and hold for 3 seconds ( ) together on the front panel of the dryer and enter the TH parameter value by means of the arrows on the display. Click the button ( ) and increase-reduce the value that appears by using the arrows. (setting can be made in the range of 2 –...
- Page 47 9. FAULT CODES AND TROUBLESHOOTING FAULT CODES ARE INDICATED ON THE DISPLAY OF THE AIR DRYER AND OPERATOR IS WARNED BY AUDIO ALARM. FAULT DESCRIPTION REMOVAL CODE If the ambient temperature of the air dryer is above 45 High condenser C, you temperature/pressure should ensure ventilation of the environment to reduce the...
- Page 48 Sensor measuring temperature is broken or short circuited. Temperature Inspect the sensor socket connections. protection sensor Replace the sensor if it is broken. failure alarm If the temperature info from the sensor measuring the heat Failure arm in the cooling system exchanger although the equipment has operated for 30 minutes, then the microprocessor stops the system given...
- Page 49 Control the wiring connections of the equipment. Make sure it Dryer does not operate is powered. If the equipment is 3-phase, then perhaps the phase control relay does not give output. Correct the phase direction. Fuse on the electronic control board of the equipment is burnt.
- Page 50 10. WARRANT CERTIFICATE AND CONDITIONS If the air dryer is used under the conditions recommended by Maksimum Makine, the manufacturer, it is under warranty against manufacturing and workmanship defects for 24 months. The warranty term starts on the date of invoice received by the customer. ...
Need help?
Do you have a question about the Premium Series and is the answer not in the manual?
Questions and answers

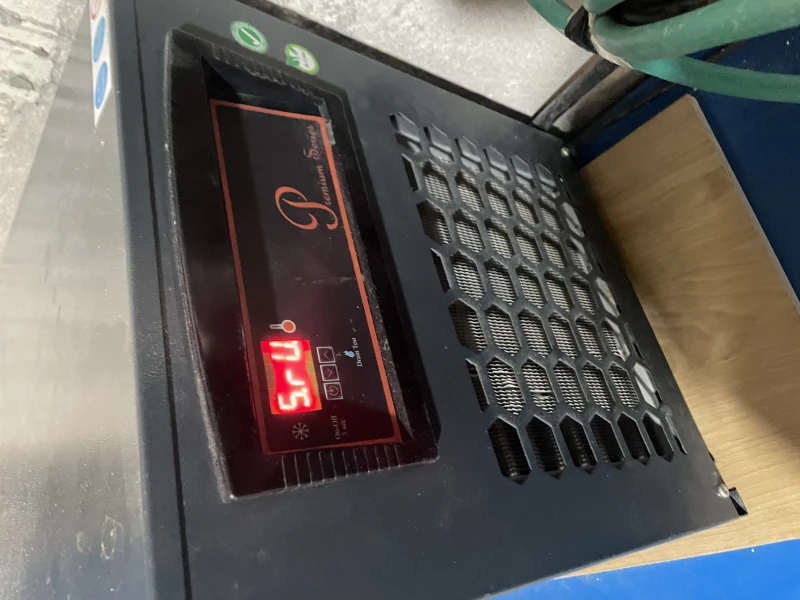

Hello, I have a dryer connected to the compressor, but it makes a noise. What is the problem? Can you help me?
Possible causes of noise from a Maxair Series dryer connected to a compressor could include:
- High condenser temperature or pressure, possibly due to poor ventilation, dirty condenser fins, or a non-operating condenser cooling fan.
- Low gas pressure in the cooling system, possibly from low ambient temperature, gas leakage, or incorrect expansion valve/hot gas by-pass valve settings.
- Cooling sensor failure, where a broken or short-circuited sensor may cause abnormal operation.
- General mechanical operation of the dryer and compressor under high pressure and temperature.
Maintenance issues such as clogged filters or dirty condenser fins could also contribute to abnormal noise.
