Open House ChannelPlus H293 Manual

ChannelPlus AC Surge Suppressor
The H293 bi-level Surge Suppressor
(patent pending) two-stage, 960 joule surge protection circuit.
The first stage provides 640 joules of protection across the
hot-to-neutral connection with a response of only one
nanosecond before the clamping starts. With ordinary
single-stage surge protectors, a surge higher than the rated
number of joules, will disable the surge protector leaving the
devices near it unprotected. With our surge suppressor, this
event will disable only the first stage protection circuit, leaving
its devices protected by the second stage. The second stage
protection is still 340 joules across the hot-to-neutral
connection, making it more than many single state surge
protectors.
The H293 protection circuit clamps at 400 volts (UL 1449
rating) and provides protection from surges up to 6,000 volts
without being damaged. It also provides protection up to 72,000
amps (48,000 hot to neutral, 12,000 hot to ground and 12,000
neutral to ground) without being damaged. A noise filter helps
audio and video devices maintain steady performance by
recuding static and RFI on the AC line.
There are built in status lights that indicate exactly how much
protection is currently available (see Status Lights below).
When a large surge or spike occurs beyond the specified limits,
the suppressor should protect the attached equipment, but the
primary protection circuit will now be inactive. Even so, in this
believe design, there is still partial protection for the equipment
that will work against a second large surge. It is advisable that
when the lights indicate partial protection (Green - Flashing),
the unit should be replaced soon.

THE NEED FOR SURGE PROTECTION

The AC electrical lines can experience sudden surges in
voltage (up to 6000 volts) from sources outside and inside
the home. Outside sources could include industrial
equipment being used nearby, while inside sources could
be air conditioning units turning on and off, refrigerators
and other major appliances. These can damage electronic
components, cause loss of data, input/output errors, and
computer system crashes. When spikes and surges occur
in your home, the surge suppressor will protect your
equipment by reducing these voltages to a safe level.
LED
Green - Steady
NORMAL - 640 joules of protection
First stage gone - 340 joules of protection H-N
Green - Flashing
Replace Surge Suppressor SOON
Red - Steady No more protection, REPLACE NOW
WARNING:
This surge suppressor is NOT a
lightning arrestor and may not protect against
lightning induced voltage surges.
FOR INDOOR USE ONLY :
DO NOT use in damp areas or near water.
The surge suppressor should only be used
with a three-prong standard AC outlet. The
surge suppressor cannot provide complete
protection without a grounded AC source.
features a unique

Power Strip Installation

STATUS
WARNING: To reduce the risk of fire or shock hazard,
do not expose this product to rain or moisture.
CAUTION
RISK OF ELECTRICAL SHOCK, DO
NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRICAL
SHOCK, DO NOT REMOVE COVER OR BACK. NO
USER-SERVICEABLE PARTS INSIDE. REFER SER-
VICING TO QUALIFIED PERSONNEL.
This symbol is to alert you to the presence of
uninsulated dangerous voltage inside the product
which could constitute a risk of electric shock. Do
not open the products case.
This symbol is to inform you that important
!
operating and maintenance instructions are
included in the literature for this product.

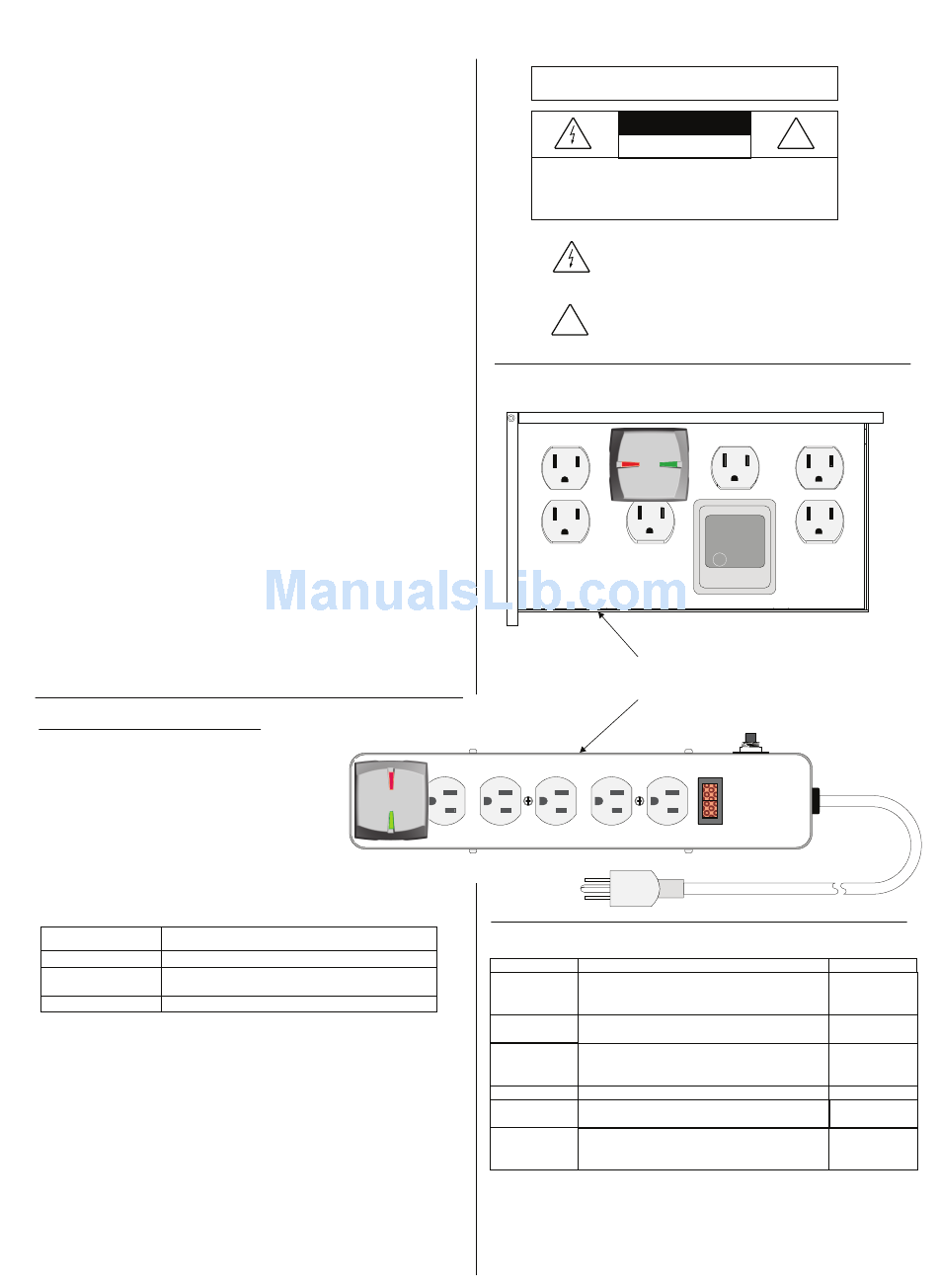

H290 Installation

The H293 is shown in an H290 8-outlet box
used in an Open House structured wire grid
system and in a power strip. The surge
suppressor can plug into any of the outlets,
and will protect all the other units plugged
into an H290, H291, the power strip, or a J-
Box.

Specifications

Clamping Voltage Maximum voltage allowed across suppressor
Maximum surge Primary + Secondary, Hot to Neutral
dissipation Secondary only, Hot to Neutral
Total: H-N, H-G, N-G
Maximum surge Maximum power line surge that can be
voltage protected by unit
Maximum surge Hot to Neutral, peak
current Hot to Ground, Ground to Neutral, peak
Total, all terminals
Time for clamping to start
Response time
Noise filter 100KHz to 200MHz, filters the line to reduce
reduction static and RF interference
UL-1449 rating
Tested by Underwriters Laboratories to
2nd edition
Maximum transient or "let through voltage
after clamping

MECHANICAL

Grounded terminal
< 2 inch cub fits into Open House enclosures with room for power supplies
Plastic case Fire retardant
!
OEM
AC ADAPTOR
Part no.: 123-456
U
L
400 volts
640 joules
340 joules
960 joules
6000 volts
48,000 amps
12,000 amps
72,000 amps
1 nanosecond
Up to 35 dB
400 volts
