Operation Safety Notices ! CAUTION: The “Series F4 User’s Manual” is a general manual and is written by the manufacturer, Watlow, for a wide variety of applications and configurations. Not all features or functions are applicable. Only the capabilities of a model F4SH-CKA0-01, as described on page A.7 of the “Series F4 User’s Manual”...

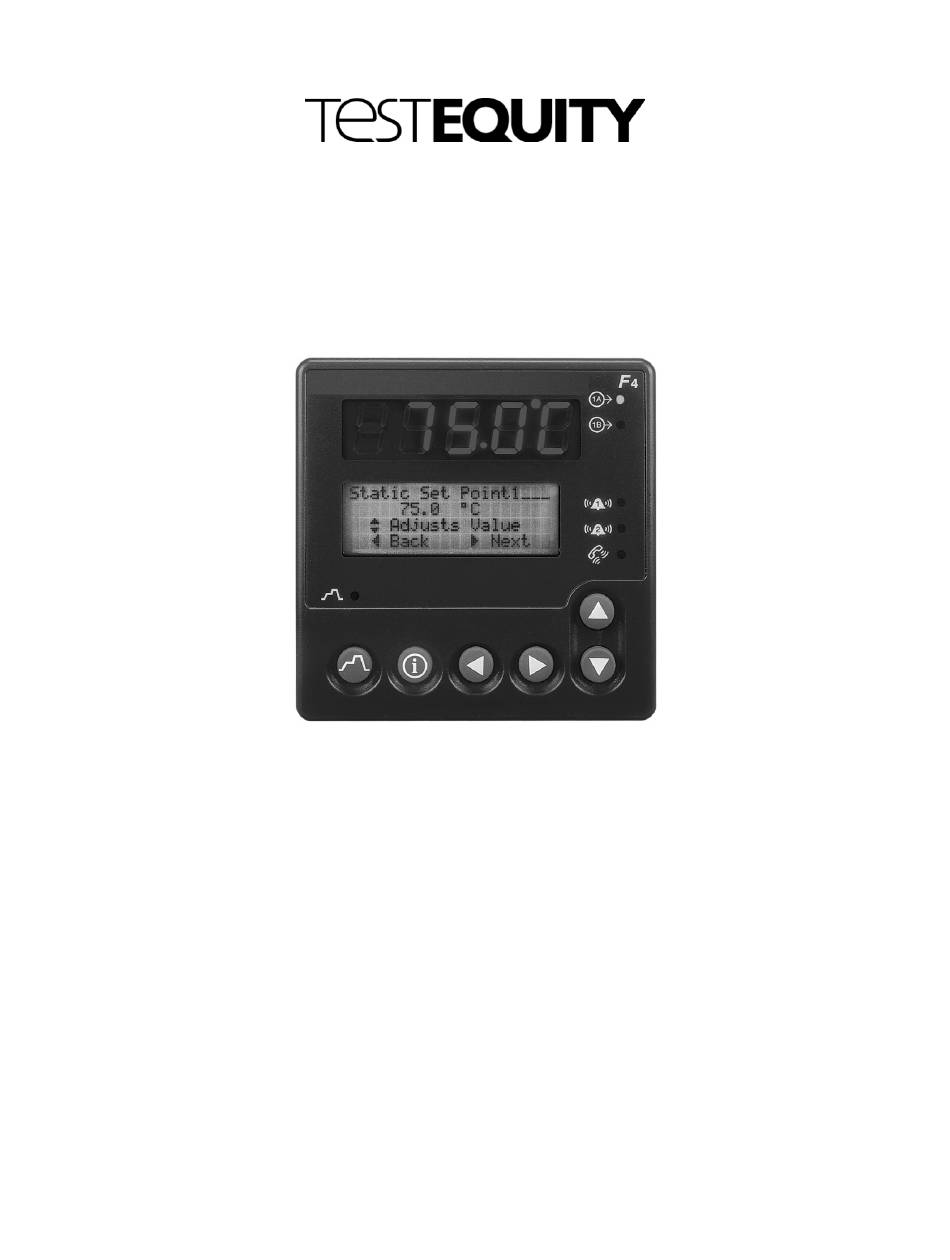

Chapter 2 – Operation Introduction The Series F4 Temperature Controller can function as either a single set point controller (static mode) or as a programmable profile controller. A four-line LCD display facilitates setup and programming, and presents informative messages about status, error, and alarm conditions.
After making the change with the with the ▲ or ▼ key, you may back using the ◄ key out or proceed using the ► key to the end of the series. Page 2-2 TestEquity F4 Temperature Controller...
Real-time clock date. Date Real-time clock time. Time TESTEQUITY XXXXX Identifies the chamber model number (model appears in place of XXXX). Go to Operations Access to Operations Page Access to Profiles Page Go to Profiles Access to Setup Page. Not displayed if running a profile.
The chamber can be configured to enable or disable all chamber functions through Event 1 (Digital Output 1) in the F4 Controller. The CONDITIONING Switch needs to be in the Event 1 position. This configuration may be desirable if you want to turn off all chamber function at the end of a programmed profile, or through the communications interface.
Profile Programming The Series F4 Temperature Controller can be programmed to store up to 256 steps into as many as 10 profiles. You do not need a computer to enter a profile – it can be easily done through the controller’s front panel keys.
Page 12
NOTE: If a power-out condition occurs during a profile and more than 20 jump steps are stored in the F4’s Profile Program memory, the controller will terminate the profile and turn off all outputs if Continue, Hold or Terminate was selected as the Power Out action. If Profile Reset or Go to Idle Set Point was selected, the controller will take those actions.
Types,” earlier in this chapter.) ▼ Soak Define each step type. Choose to wait:_______ • The Series F4 prompts you to define the ► Step does not wait parameters of each step type. (See “Step Types,” Step waits for... earlier in this chapter.)
• TestEquity recommends having the end step type to be Hold or Idle. • TestEquity does NOT recommend using an end step type of All Off or Control Off. This does not turn off the chamber fan. The chamber temperature can reach +55°C just from heat generated by the fan, and even higher if your test sample is energized.
Page 15
While running a profile, the Main Page on the lower display will keep you informed about the progress of the profile. Use the ▲or ▼ key to scroll through the list of running profile parameters. You cannot manually change any operating condition while the profile is running. TestEquity F4 Temperature Controller Page 2-9...
• Press ▲or ▼ to scroll through your choice. ▲ Edit Profile • Press ► to select your choice. ► Delete Profile █ • The controller will prompt you to select the profile Re-Name Profile you want to delete or re-name. Page 2-10 TestEquity F4 Temperature Controller...
• A Jump Step that jumps to an End Step cannot be deleted. • An End Step cannot be deleted. • Inserting a new ramp step usually requires inserting an associated soak step. • Deleting a ramp step usually requires deleting the associated soak step. TestEquity F4 Temperature Controller Page 2-11...
Chapter 2 – Operation Profile Examples The following are examples of two typical profiles Note that Digit Out 1 is named CONDITION. Page 2-12 TestEquity F4 Temperature Controller...
14. Press the ◄ key once to return back to the Main Page. Digital Output Connections The Digital Output connections are on the back of the F4 Controller. Rating: OFF: 42 VDC @ 10 µA max. ON: 0.2 VDC @ 50 mA sink max.
RS-232C The F4 Temperature Controller has an RS-232C interface. A DB-9 connector is located on the rear panel. It is wired to accommodate a null-modem cable. The controller is configured from our factory for 9600 baud and a Modbus address of 1.
Ethernet (optional) TE-1055 and TE-1056 Ethernet Interface Converter is a specialized Ethernet-to-Serial Modbus Interface that provides Modbus RTU packet communication to adapt the F4 Controller used on TestEquity chambers to a network. The converter lets you send simple read-write messages over the network to control and query the chamber’s controller.
Chapter 3 – Calibration and Service Introduction This section describes how to verify the calibration and perform a calibration on the F4 controller. It also documents the settings which configure the F4 controller to work with the control architecture of the chamber.
Type T to simulate temperatures within your desired range of interest (for example +125°C and –55°C or +85°C and –40°C). The upper display on the F4 should be within ±1.55°C (above –50°C) or ±1.66°C (below –50°C) of the Type T simulator temperature setting.
The Operations Page provides access to menus for control tuning (PID) and controller alarms. TestEquity has configured the security to require a password for access to all parameters in the Operations Page. You must call TestEquity at 877-512-3457 or 805-480-0638 to obtain the password.
Chapter 3 – Calibration and Service Factory Page The Factory Page provides access to menus for controller diagnostics and calibration. TestEquity has configured the security to require a password for access to the Setup Page. However, there will be times when entry into these menus is necessary. For example, you may need to gain access to Factory Page in order to perform a calibration, or to change the security password.
Make sure you are referring to the correct configuration which matches the model number of your chamber. You will need a password to enter the System and Operations menus. You must call TestEquity at 877-512-3457 or 805-480-0638 to obtain the password.
Chapter 3 – Calibration and Service F4 System Parameters (Models 106 & 107 only) System Menu Control Output Menu Digital Output Menu Main Page\Go to Setup\System Main Page\Go to Setup\ Main Page\Go to Setup\ Control Output (1A-1B) Digital Output (1-8)
Chapter 3 – Calibration and Service F4 System Parameters (All models except 106, 107, 3007C) System Menu Alarm Output Menus Digital Output Menu Main Page\Go to Setup\System Main Page\Go to Setup\Alarm Output Main Page\Go to Setup\ GSB 1 Source Input 1...
Chapter 3 – Calibration and Service F4 System Parameters (Model 3007C only) System Menu Alarm Output Menus Digital Output Menu Main Page\Go to Setup\System Main Page\Go to Setup\Alarm Output Main Page\Go to Setup\ GSB 1 Source Input 1 (1-2) Name Digital Output 1 Guar.
Chapter 3 – Calibration and Service F4 Operations Parameters (Models 106 & 107 only) PID Set Channel 1 Menu Alarm Setpoints Menu Main Page\Go to Operations\Edit PID\PID Set Channel 1\ Main Page\Go to Operations\Alarm Setpoints PID Set (1-5) TEMP ALARM (See Note 1)
Password F4 Controller Service and Repair There are no user-serviceable parts within the F4 controller. If there are any internal failures the entire controller must be replaced. To purchase a replacement F4 controller, contact TestEquity with the model and serial number of your chamber so we can provide a properly configured controller.
Be ready to support it as it slides forward through the panel. 1. Remove all the wiring connectors from the back of the F4 controller. Using the Phillips screwdriver, unscrew the four screws on the mounting bracket (start with the bottom two, there are two on top and two on bottom) until the tips are completely retracted into the shafts.
Chapter 3 – Calibration and Service F4 Temperature Controller Specifications Specifications as configured for the TestEquity Temperature Chambers Accuracy & Sensor Conformity* ±1.55°C (above –50°C) ±1.66°C (below –50°C) Stability ±0.1°C/°C rise in ambient Digital Inputs (Four) Contact closure or dc voltage, 10 kΩ impedance...
