Open House ChannelPlus H511HHR Manual

ChannelPlus Channel Injector
The H511 channel injector
The H511 is designed to work with an existing installation without the need to add additional hardware
such as a coax panel or additional coax wiring to the video source. The
H511 creates this new channel from a video signal it receives via a
single CAT-5 cable connected to one of its companion

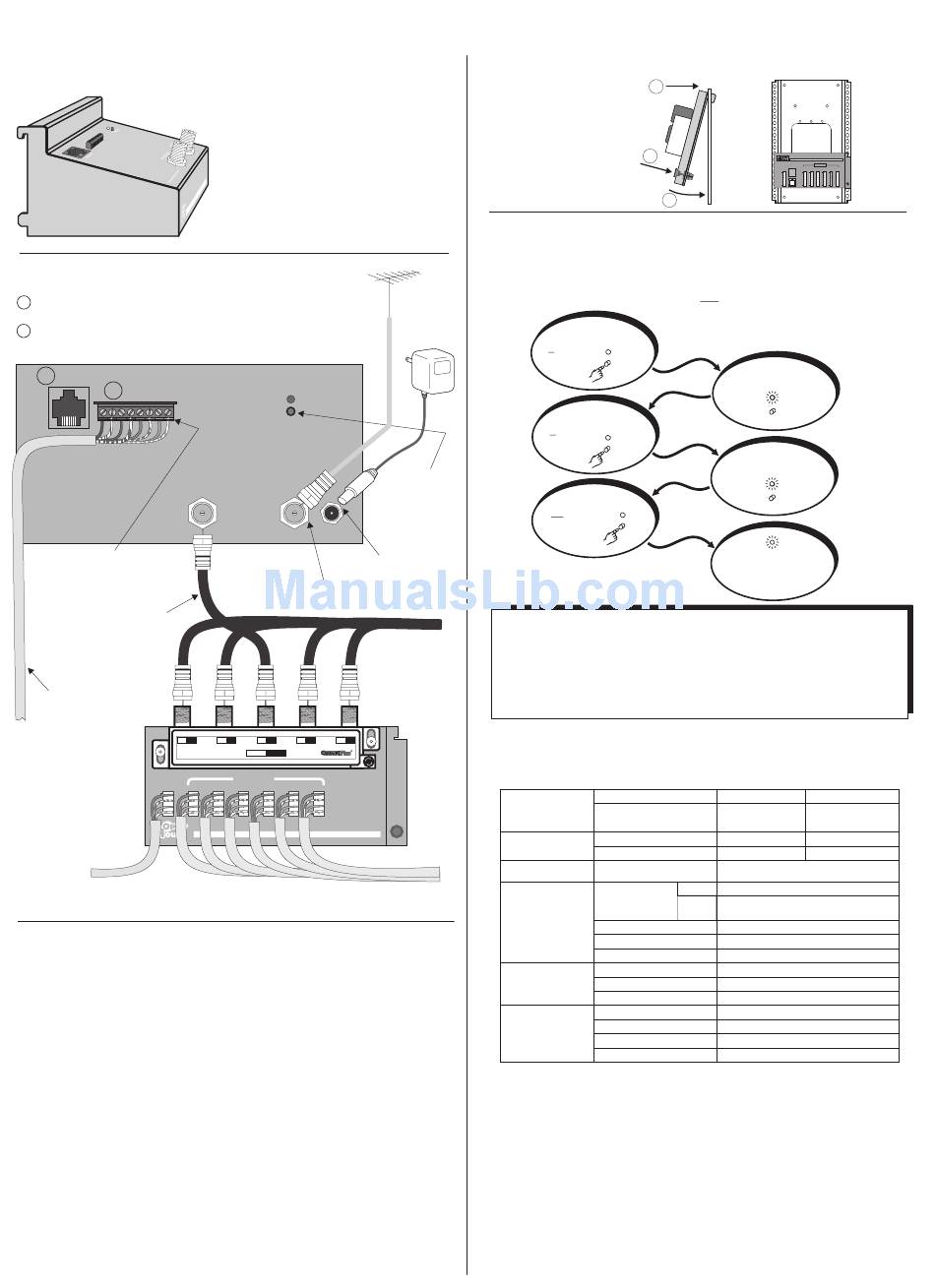

Typical Installation
Connect to a camera or wall plate using only
1 Terminate cable with a CAT-5 jack and connect to the H511 using
supplied RJ45 jumper. (Also see example H628 manual).
2 Wire camera or wall plate directly to the 8 position terminal block
matching the CAT-5 wire colors to the colors on the terminal block.
Insert wires and tighten screws
.
1
2
CAT-5 video
Channel Injector
The color bar has two rows:
-Use top row for wiring with CAT-5
*
-Use bottom row for quad wire
Connect H511 output to
distribution panel input.
(Coax jumper included)
To camera or wallplate
(H721 typical)
OUT
Existing distribution
From
Telco
(H801 typical)
R
2
T
R
1
T
From telephone
company
*
The H511 was designed to work with CAT-5 wiring. Although the system will function with quad
wire, CAT-5 delivers the highest quality picture. CAT-5 allows the use of an automatic line length
sensor and picture compensator. Quad wire does not take advantage of this enhancement.
Things To Watch For:
No picture ... Check that the TV and the modulator are tuned to the same channel. For example, if
the modulator is broadcasting on UHF channel 16, make sure the TV is on UHF 16 rather than CATV
16. UHF 16 and CATV 16 are at different frequencies. Also ... Make sure the H511 and camera or
wall plate are wired properly - CAT-5 colors must match connector colors.
Weak ChannelPlus UHF channel ... If the TV has a separate UHF input, be sure that it is connected.
Herringbone interference on modulator channel (diagonal lines):
channel number that is not completely vacant. Distant UHF stations may not be watchable, but will
cause interference if you try to create a new channel at the same frequency. Also, cable companies
often have extra signals where there should be none. Try moving the modulator channel to another
number. You may have to add a low pass filter to remove the cable company noise. If the filter does
not work, try adding a DC-block to remove common mode interference.
Herringbone interference on many channels, including modulated channel (disappears when
you remove the CATV/antenna feed) : The RF amplifier can be overloaded by abnormally strong
signals. Often, you can cure the problem with a simple attenuator. Use a variable attenuator and try to
find a signal level where the interference just disappears. Sometimes, the problem is one station is far
stronger than the rest. In this case, attenuating all of the signals with a simple attenuator may cause
the desired stations to be weak (snowy). You must reduce the strength of the only offending station. A
common FM trap will help if the problem is a nearby FM tower. If the problem is a nearby TV station,
often the station management can provide suitable filters.
Audio volume is low ... The left and right audio inputs are combined for monaural. For proper audio
level, both right and left inputs must be used. If you have a mono source, connect it to both right and
left inputs using an RCA 'Y' connector.
No color on ChannelPlus channels ... You may have chosen the incorrect cable standard. Not all
televisions can accommodate the 1.25MHz frequency difference between the H and I cable
standards. See the section on programming.
creates a new channel to add to existing television channels.
products such as the H721 camera or H110 wall plate.
Two models are available:
)
C A T - 5
The H511HHR has the isolation required by the FCC
e l v i a
c h a n n
1 H H R
s i n g l e l H 5 1
c t o r ( m o d e
for a system with an antenna.
e l I n j e e l P l u s
C h a n n
C h a n n
The H511BID has a 5-42MHz reverse channel to
support bidirectional cable systems (cable modems,
pay-per-view and interactive cable).
one method:
Program
CATV
Output
/Ant Power
H511HHR
Remove antenna or incoming
cable from existing distribution
and connect to H511 input.
IN IN IN IN
OUT IN OUT OUT OUT
532-230 5MHz to 1000MHz
R
SPLITTER COMBINER
Telephones
Combo Hub (2 lines x 6 phones, 1input x 4 televisions)
ChannelPlus model H801 ChannelPlus model H801
To wall plates
You may have chosen a
OpenHouse
1) Hook from the top
2) Swing into place
3) Push button to lock
Program the new channel using the
H511. This new channel should be an unused channel. It should have no interference or
trace of a picture - just "snow". There must also be one unused channel both above and
below the selected channel to avoid interference. Below is a simple step by step example
of how to program a channel - cable channel
350-079 power
Press
supply (included)
1
Press
2
Enter the new
channel using
Program
the
Press
push button.
10
(press 10 to
Power the H511
enter a 'zero')
last - make all
cable and CAT-5
connections first.
Cable HRC and IRC considerations:
Most cable services use standard or IRC frequency assignments. This is the default for the
To 4 TV
H511. However, if the cable services use HRC or the TV appears to search for the "created
wall plates
channel", program the channel injector for HRC.
For HRC enter a 98. Reset to IRC by entering 99.
Entries 98 and 99 are for setting HRC or IRC only. They do not change the channel number.
CAT-5 Cable Length Limitations:
The length of the CAT-5 cable that runs between the H511 and the camera or wall plate is
limited. See the individual camera or wall plate manuals for these CAT-5 cable run limitations.
Specifications: typical @ 25 C ± 5 C
RF gain
Bandwidth
Max CATV/Ant
input
RF output
Video
performance
Power supply
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE
FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2)
THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY
CAUSE UNDESIRED OPERATION.
Installation requirements:
FCC classifies this product under part 15 of its rules as a "television interface device".
Systems designed using television interface devices have the following legal requirements:
1) The modulated channel signal strength may not exceed 15.56dBmV at any television.
Federal Regulation 47CFR15.115(b)(1)(i).
2) If an antenna is used in the system, the modulated channel signal strength may not exceed -51dBmV at the
antenna input port.
For the Installer:
Any system you design must comply with these regulations. As the installer, you are responsible. The H511 has
the necessary characteristics to comply with the above requirements as designed without additional accessories.
The H511HHR is suitable for use with an antenna or with CATV systems.
The H511BID is suitable for use with CATV systems only.
tm modules attach from the top
1
3
2
Programming the H511
Program push button to enter channel digits into the
120 :
program
button
time
program
button
more times
Wait for
(ready for next number.)
program
button
more times
LED comes back on when
done. If an incorrect channel
O O
CATV/Ant input to output
Output to CATV/Ant input
5-42MHz reverse channel
Foward
Reverse
(64 channels)
UHF
channel ranges
CATV
output level
IM distortion
alternate channel
differential gain
differential phase
signal/noise
model number
output current
output voltage
input power

DECLARATION OF CONFORMITY

Federal Regulation 47CFR15.115(c)(4).
Telephone Master Hub (4 lines x 6 phones) Telephone Master Hub (4 lines x 6 phones)
ChannelPlus model H616
From From Expansion Expansion Telephones
Telco Telco Ports Ports
R R RJ31X
4
T T
R R
3 T T
R R
2
T T
Out
R R
1
T T
power
Wait for LED
(ready for next number.)
power
LED
is entered, LED will flash
quickly and return to the
previous setting.
H511HHR H511BID
2dB 2dB
na -4dB
5-806MHz 54-806MHz
na 5-42MHz
20dBmV
14-64
65-125
(excluding 95-99)
+12 dBmV nominal
-60 dBC
-45dBC @ 12MHz
4%
<4º
55 dB
350-079
600mA
15 VDC
105-125 VAC
