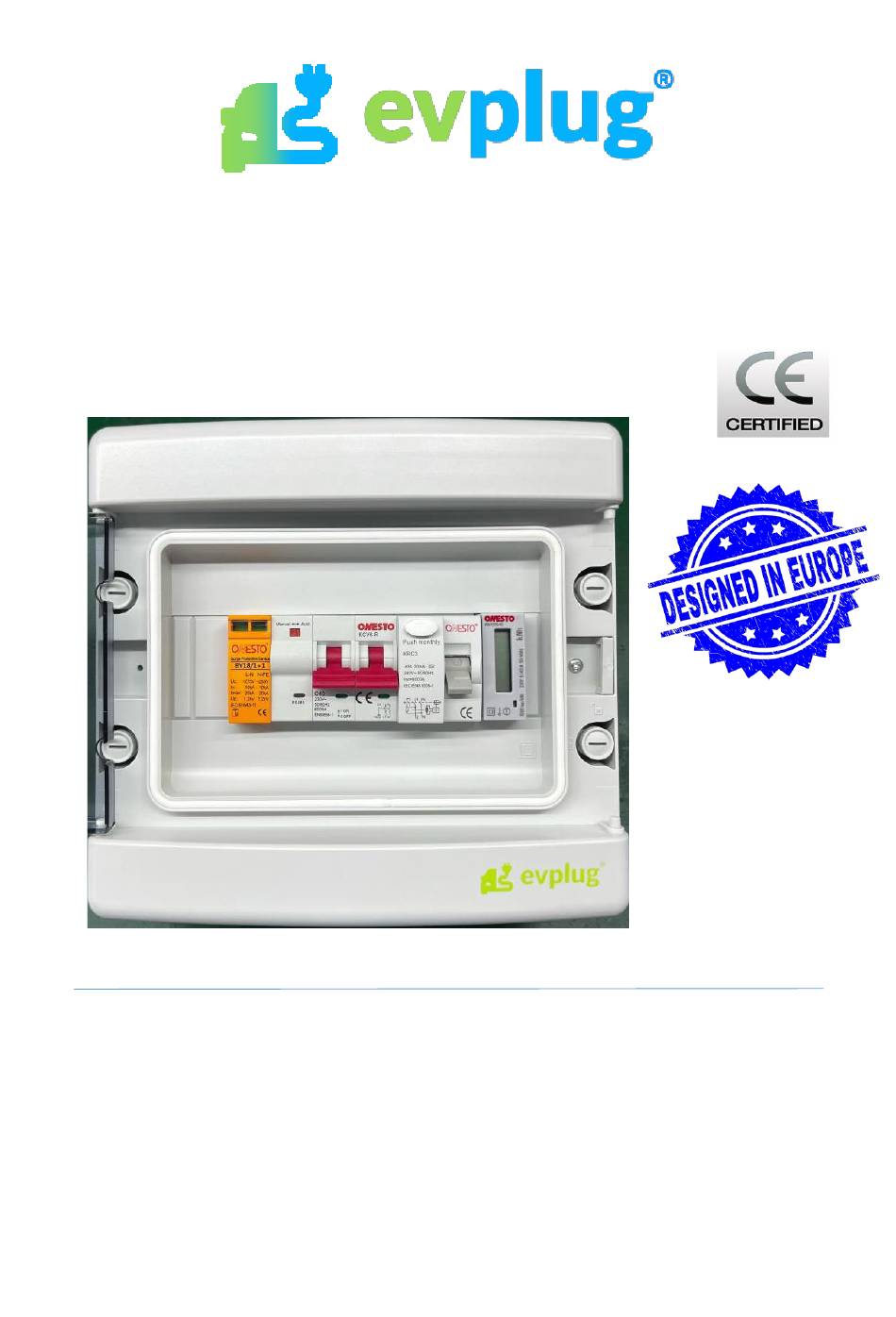

evplug EV40001 Manual

EV FUSE BOX manual
Compatible with all 3.6 and 7.4kW EV chargers
7.4kW PN. EV40001 y EV40002
Features
Easy Plug and Play installation
FULLY WIRED complaining EURO Standards
Auto reclosing circuit
Lock with key
Charging plug meet IEC 62196-2 standard.
Excellent protection performance
Protection Grade IP65-Working condition.
Operating temperature: -30C to +50C
Rated voltage: 230V 1 phase
Current Max.: 32A
Page | 1 User manual for evplug Fuse Box 7.4kW PN. EV40001 and EV40002
Components characteristics
1. Over voltage under-voltage protection: Surge
arrester (BY18-1+1): 1P, Imax=20kA, 275VAC,
with remote control
2. Over current protection Auto reclosing circuit
2P, 40A, C curve, 6kA
3. Leakage protection RCCB (KRC3): 1P+N, A
type, 40A,
30mA
4. Meter:230V, 5(40)A, 50Hz (Only in option
EV40002)
5. 4. Plastic box (WDB6): 6way, IP65 (EV40001)
Easy Plug and Play
installation
FULLY WIRED complaining
EURO Standards
Auto reclosing circuit
Lock with key
