CYT-100MG

User Manual

Document Version 1.0

Web Version 1.2 2011-05-17

Firmware Version 1.04.00, May 17 2011

Table of Contents

Need help?

Do you have a question about the CYT-100MG and is the answer not in the manual?

Questions and answers

Summary of Contents for CHIYU CYT-100MG

Page 1 CYT-100MG User Manual Document Version 1.0 Web Version 1.2 2011-05-17 Firmware Version 1.04.00, May 17 2011...
Page 2: Table Of Contents
【Index】 Ⅰ、Hardware Introduction......................1 Ⅱ、Product Overview........................3 Ⅲ、WEB Login ..........................4 Ⅳ、Web Function Instruction ....................10 　 Main Menu ........................10 1、IP Networking setup ....................10 (1) STATIC IP ......................10 (2) DHCP Client..................... 11 2、Operation Mode.....................12 (1) Modbus RTU Slave ..................12 (2) Modbus RTU Master ..................13 (3) Modbus ASCII Slave ..................14 (4) Modbus ASCII Master ..................15 3、Serial Type ......................16...
Page 3: Ⅰ、Hardware Introduction

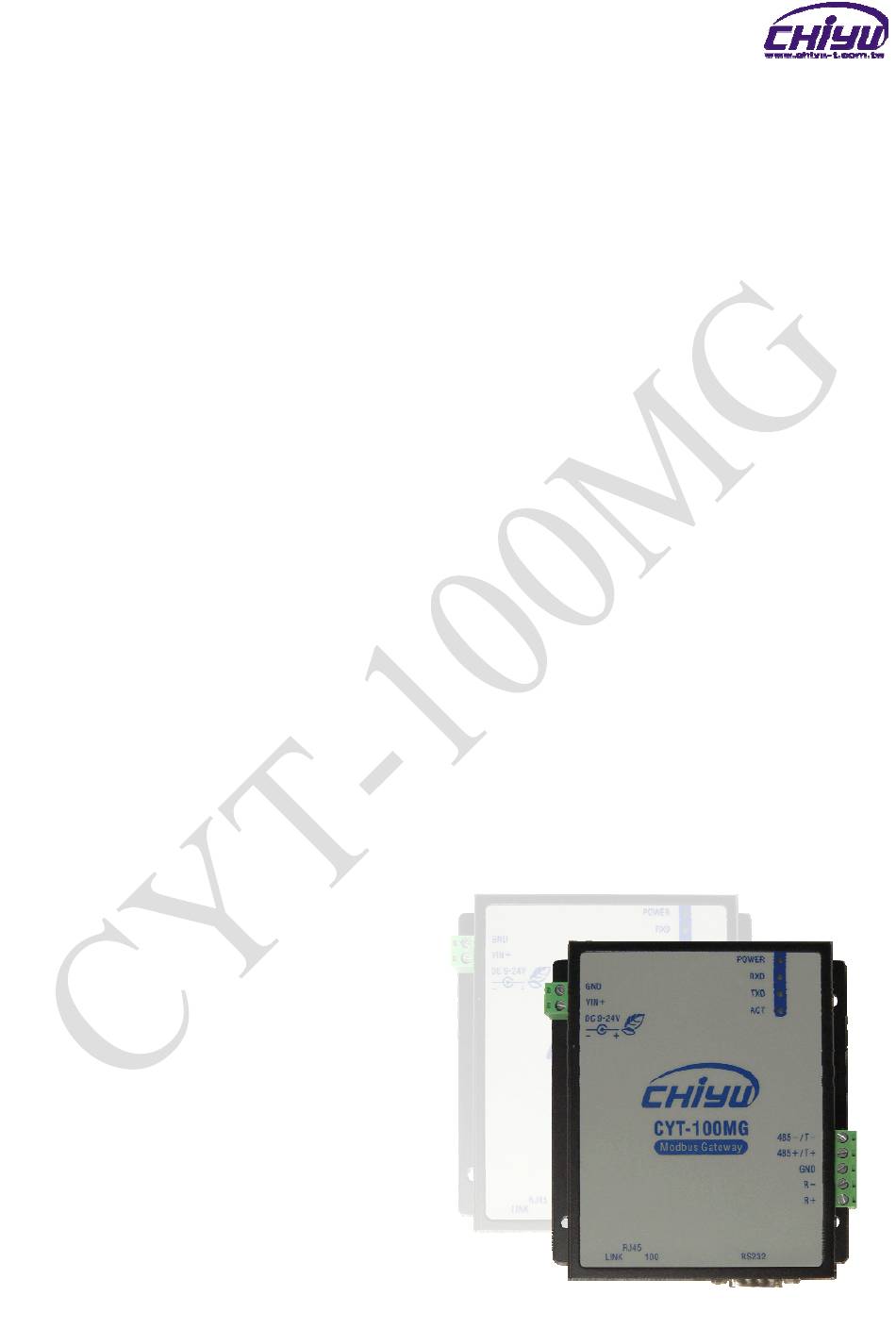

－CYT-100MG－ Ⅰ、Hardware Introduction  Appearance  Specification Item Specification 16 Bits, 100MHZ Memory 256KB Flash & 2MB SDRAM Watchdog System never halt Ethernet 10/100 Base-T/Tx , Automatic MSI/MDI-x port Communication Port RS-232, RS-422, RS-485 Connectors DB9(MALE)/RJ-45 RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD,RI,GND...
Page 4  End point...
Page 5: Ⅱ、Product Overview
Ⅱ、Product Overview CYT-100MG apply for industrial control device, and it make TCP Modbus 及 RTU/ASCII Modbus devices can access and communicate data through CYT-100MG. CYT-100MG can support 4 TCP Master and each Master can control maximum 32 demands. The Web interface of CYT-100MG is simple, easily to operate, and without operation system limitation.
Page 6: Ⅲ、Web Login
 Preparation Before conducting CYT-100MG setting, please assure the following:  PC has connected to CYT-100MG, and PC and CYT-100MG are situated in the same WAN with power supplied.  If the default IP address (192.168.168.125 ) is occupied by else device, then it is a must to shut down that device first till the setting is over, and then allocate new IP address to CYT-100MG.
Page 7 3 、 While the IP Search window shows up, it will display all CYT-100MG in LAN, and show Device name, Location, Model Name, Address, Subnet Mark, Gateway, Address. Select particular CYT-100MG, then its related information will appear below the window, as shown: 4、The showed information of CYT-100MG can be revised directly in the window, the part...
Page 8 Web of CYT-100MG, has two methods: (1)Open IP Search, select and double click particular CTY-100MG, then to enter its webpage. (2)While the internet explorer opened, input CYT-100MG IP address to enter its webpage Remark： WINDOWS XP：...
Page 9 , open and search for , click Alter Interface Card on the upper-left side. 《Step 2》 Click LAN link, select content, then the LAN settings will be shown, click Internet Protocol(TCP/IPv4),then input same setting as CYT-100MG, as below figure.
Page 10  How to login to CYT-100MG Web via web browser 1、Start Web browser ( ig: WIN 7 IE ), input CYT-100MG’s IP Address, for example: use the default CYT-100MG IP Address: http://192.168.168.125 2、If connection failed, should check:  If CYT-100MG installed and its power supplied properly ...
Page 11 3、If the connection with CYT-100MG is successful, then it will display a message window for User name and Password, the default for user name and Password is: admin/admin, as shown below: 4、While the user name and password entered, a Web setting interface of CTY-100MG will be showed, enter it will then display a “...
Page 12: Ⅳ、Web Function Instruction
Set the DNS of the CYT-100MG default setting is 168.95.1.1 Device Information Device Name Fill in the device name, default setting is CHIYU Device Location Fill in the device location , default setting is blank Management  Select if using standard Http pot , default is 80 ...
Page 13: Dhcp Client
 Function instruction Function Description Device Name Fill in the device name, default setting is CHIYU Fill in the device location , default setting is blank Device Information Management  Select if using standard Http pot , default is 80 ...
Page 14: 2、Operation Mode
2、Operation Mode (1) Modbus RTU Slave  Function instruction Function Description Fill in the local listen port number , the same as TCP Master port, Local Listen Port Number default setting is 502 Inactive TCP Connection After TCP connection set up, if there is no reflection from Server, the Timeout default setting of disable time will be set to 100 seconds.
Page 15: Modbus Rtu Master
(2) Modbus RTU Master  Function instruction Function Description Remote Host IP Address Set the remote host IP address，up to 4 sets , default setting is 0.0.0.0 Remote Port(0 - 65535) Set the remote port，the range is 0~65535，default setting is 502 ID Range(1~247) Set the ID range，the range is 1~247，default setting is 0...
Page 16: Modbus Ascii Slave
(3) Modbus ASCII Slave  Function instruction Function Description Fill in the local listen port number , the same as TCP Master port, Local Listen Port Number default setting is 502 Inactive TCP Connection After TCP connection set up, if there is no reflection from Server, the Timeout default setting of disable time will be set to 100 seconds.
Page 17: Modbus Ascii Master
(4) Modbus ASCII Master  Function instruction Function Description Remote Host IP Address Set the remote host IP address，up to 4 sets , default setting is 0.0.0.0 Remote Port(0 - 65535) Set the remote port，the range is 0~65535，default setting is 502 ID Range(1~247) Set the ID range，the range is 1~247，default setting is 0...
Page 18: 3、Serial Type
3、Serial Type  Function instruction Function Description Set the serial type，there are RS232/485/422 for setting，default setting is Serial Type RS232 1.Set serial port baud rate, the parameters can be selected：1200、2400、4800、 Baud Rate 9600、19200、38400、57600、115200、230400 2.Default setting is 19200 Data Bits Set the data bits， 5,6,7,8 parameters can be selected, default setting is 8 ...
Page 19: 4、Ddns Setup
4、DDNS Setup (1) TZ0  Function instruction Function Description E-mail Address Fill in the E-mail address for DDNS , up to 47 characters ， Fill in the password key for DDNS up to 31 characters Password key Fill in the device DNS name ，...
Page 20: Dyndns
(2) Dyndns  Function instruction Function Description for DDNS ，up to 31 characters Username Fill in the username for DDNS ，up to 31 characters Password Fill in the password Fill in the device DNS name，for example：hostname.dyndns.org Device DNS Name Display the registry IP address，when DDNS is enabled, It will show the Registry IP Address registry IP address, default setting is 0.0.0.0 Display DNS Serve status，when DDNS server does not enable ,it will show...
Page 21: 5、Advanced Modbus Setting
5、Advanced Modbus Setting  Function instruction Function Description  Auto slave unit ID set to enable or disable function, default setting is enable Auto Slave Unit ID  When disable the function, need to manual insert ID, can set from 1~247.
Page 22: Management
 Management 1、Device Admin  Function instruction Function Description Reset System to Factory Default this function will reset system to factory default Execute Reboot System this function will reboot system Execute...
Page 23: 2、System Status
Display the MAC address of CYT-100MG IP Address Display CYT-100MG address, default setting is192.168.168.125 Subnet mask Display CYT-100MG Subnet mask, default setting is 255.255.255.0 Default Gateway Display CYT-100MG Default Gateway, default setting is 192.168.168.254 Primary DNS Display CYT-100MG Primary DNS address, default setting is168.95.1.1...
Page 24: 3、Backup & Restore
3、Backup & Restore  Function instruction Function Description After execution, can save the present system settings as a backup file, and save it in Backup hardware, the sub-name of the saved file is .cfg Restore Browse and select saved file( .cfg ), execute Restore to restore system settings...
Page 25: 4、Firmware Upgrade
4、Firmware Upgrade  Function instruction Function Description  Browse and select firmware, execute Upgrade to upgrade firmware  Please select a file to Has to assure the possibility of power supply during the process of upgrade upgrading, or severe damage will be caused. What if upgrade different firmware to different products, and it will also cause severe damage.
Page 26: 5、Ping
5、PING  Function instruction Function Description Source IP Address Display CYT-100MG IP address Destination IP Address Input IP address of Remote Host Packet Number Set up the number of PING package, ranged 1 ~4 , the default 4 Ping Size Set up the size of PING package, the utmost setting 1460 bytes.
