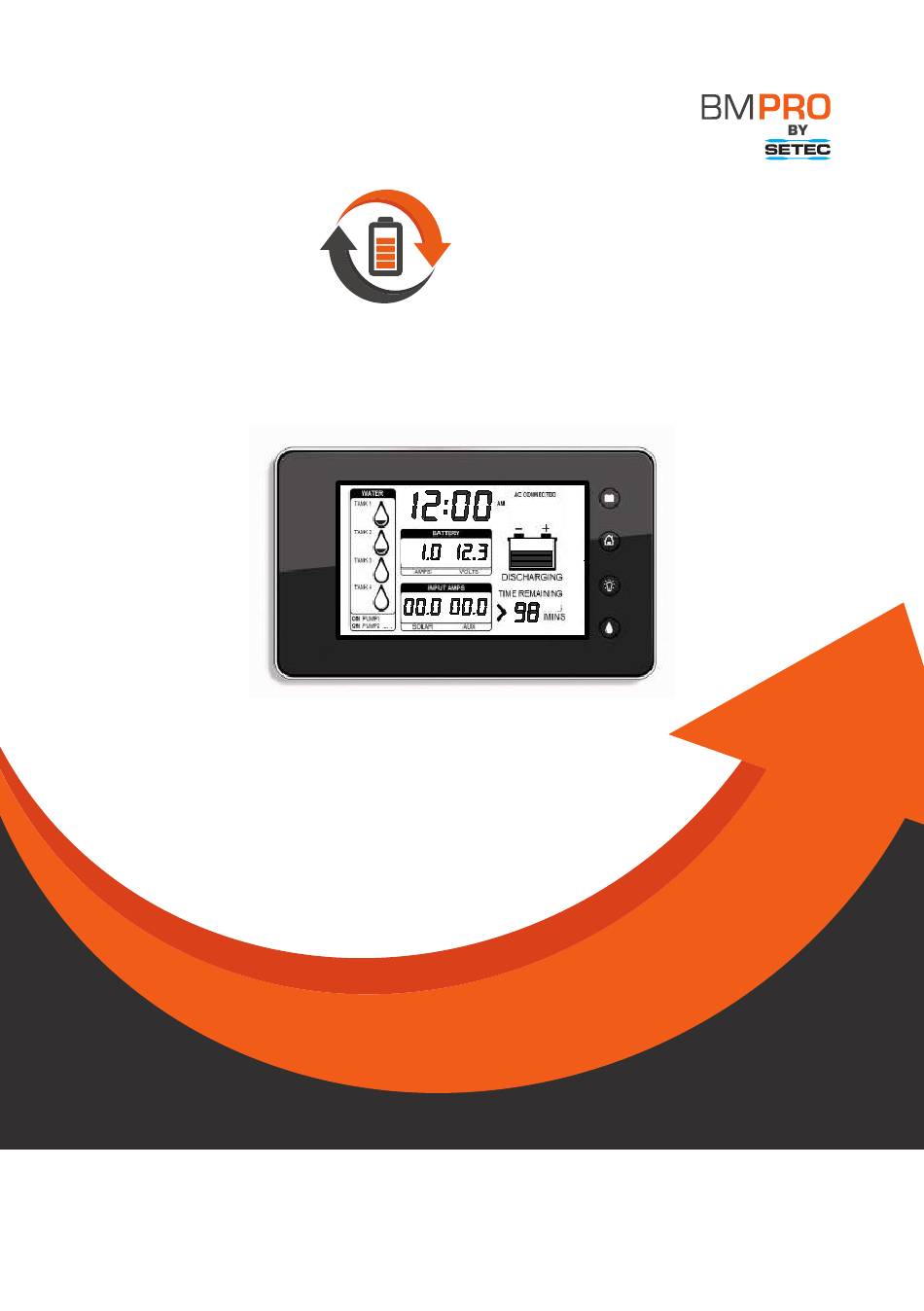

Page 1 Trek Manual OWNER’S MANUAL BATTERY MANAGEMENT TECHNOLOGY THAT POWERS YOUR ADVENTURES Doc 028515-C BM PRO - 19 Henderson Road, Knoxfield 3180, Victoria, Australia BATTERY MANAGEMENT TECHNOLOGY Phone +61 3 9763 0962 | +61 3 9763 8789 THAT POWERS YOUR ADVENTURES. Email sales@teambmpro.com | www.teambmpro.com...
Page 2: Table Of Contents
Disclaimer Setec accepts no liability for any loss or damage, which may occur as a result of improper or unsafe use of its products. Warranty is only valid if the unit has not been modified by the customer and has not been misused.
Page 3: Introduction
INTRODUCTION SAFETY PRECAUTIONS Please read the Safety Precautions carefully before installing the unit. Failure to observe these instructions properly may CAUTION result in property damage or personal injury, which may be serious depending on the circumstances. Refer to the installation section before operating. Correct installation is the most critical factor in ensuring the safe use of the power supply.
Page 4: Accessories
ACCESSORIES The following accessories are provided with the retail pack for this product. › A Trek Unit › Front Fascia Plate › Data Cable 10m › Tank Loom › Trek Manual OTHER REQUIRED ITEMS › 4 counter sunk screws for mounting, refer to Installing Trek for more details. ABOUT TREK The Trek is a display and control unit that connects to BatteryPlus35 and displays a range of battery and water tank information.
Page 5: Glossary
GLOSSARY Loads Consists of any appliance connected to the output terminal of the batteryPlus35 including lights, TV, radio, etc. Sources Consists of any device that can supply power to BatteryPlus35 and its loads, such as solar input, battery input, aux input and AC input. Communication Bus BatteryPlus35 and Trek are connected via a data cable and the communication between the two devices is referred to as a communication bus.
Page 6: Names And Functions Of Parts
NAME AND FUNCTION OF PARTS Names and Functions of Parts Figure 1: Names and functions Figure 1: Names and functions Tank 1 / Tank 2 / Tank 3 / Tank 4 Battery Isolate Button Water tank level indicators. These can also When paired with a BatteryPlus35, this be turned into waste water tanks switch will isolate the battery from the loads...
Page 7: Operation
Clock AC Connected Clock AC Connected Battery Current Charge Bar Graph Battery Current Charge Bar Graph Battery Voltage Battery Voltage Operation OPERATION Operation In normal power-on mode the unit displays the Home screen. In normal power-on mode the unit displays the Home screen. In normal power-on mode the unit displays the Home screen.
Page 8: Description Of Display Elements
DESCRIPTION OF DISPLAY ELEMENTS Tank1 / Tank2 / Tank3 / Tank4 Trek can support up-to 4 tank sensors and can be set-up as fresh water and/or waste water tanks. By default, only Tank 1 and Tank 2 are set-up, as fresh water tanks. These indicate the approximate water level in each of the tanks.
Page 9: Description Of Buttons
Battery Off This indicator is only displayed when loads are disconnected from all sources including the battery. This is controlled by the battery isolate button . All other segments will also be turned off to reduce current draw from the battery. Battery Low This indicator shows when the battery voltage is at or below 11.0 Volts.
Page 10 Home Button Pressing and holding the Home button for approximately 5 second puts Trek into the set-up mode. In set-up mode the home button is the “back button”. Battery Button The battery button is used to disconnect the battery, AC mains, auxiliary and solar sources from the loads.
Page 11: Set-Up Mode
Set-up Mode Set-up Mode SET-UP MODE Enabling Parameter Set-up Mode Enabling Parameter Set-up Mode ENABLING PARAMETER SET-UP MODE 1. Ensure the display is in normal mode (not in any setting mode). 1. Ensure the display is in normal mode (not in any setting mode). 1.
Page 12: Clock Menu
Clock Menu CLOCK MENU Clock Menu When in set-up mode the following needs to be followed. When in set-up mode use the following. Set-up 12hr Clock When in set-up mode the following needs to be followed. Set-up 12hr Clock Set-up 12hr Clock AM and PM annunciators will automatically change as the time changed from 11 AM and PM annunciators will automatically change as the time changed from 11 to 12.
Page 13: Water Tank Menu
WATER TANK MENU To exit the menu, keep pressing the “Back” button until the home screen is seen. Water Tank Enable This shows how to enable or disable the water tanks. After enabling the required tank, allow for 15 seconds for the tank levels to update. Water Tank Method Water Tank Method Water Tank Method...
Page 14 Water Tank Type This shows how to change the water tank from a fresh water to waste water tank. Battery Capacity Menu Battery Capacity Menu This shows how to change the battery capacity in AH. The battery capacity can be This shows how to change the battery capacity in AH.
Page 15 LCD Back-light Menu LCD Back-light Menu LCD Back-light Menu This shows how to change the LCD back-light brightness. The back-light brightness can be This shows how to change the LCD back-light brightness. The back-light This shows how to change the LCD back-light brightness. The back-light incremented or decremented in steps of 10%.
Page 16: New Battery Installation
NEW BATTERY INSTALLATION Trek is a smart battery monitor that is able to learn the actual battery capacity and thus provide more accurate “Time Remaining” feedback to the user. When an existing battery is replaced by a new one, check the capacity of the new battery verify this in Battery Capacity Menu on page 4.
Page 17 Screw type: Counter sunk Diameter: 4.0mm Max Length: 25mm Min After fixing Trek to the wall attach the provided front fascia plate to Trek. This fascia clips on to the front of Trek. Screw requirement for mounting method 1: Screw type: Counter sunk Screw requirement for mounting method 1: Diameter: 4.0mm Max Screw type: Counter sunk...
Page 18 Screw requirement for mounting method 2: Screw type: Counter sunk Screw requirement for mounting method 2: Diameter: 3.5mm Max Screw type: Counter sunk Length: 20mm Min Diameter: 3.5mm max Length: 20mm min Screw requirement for mounting method 2: Screw type: Counter sunk Diameter: 3.5mm max Length: 20mm min Mounting Holes...
Page 19: Trek To Batteryplus35 Wiring
TREK TO BATTERYPLUS35 WIRING Trek to BatteryPlus35 Wiring Trek BP35 DATA Cable Water Tank Loom Tank4 Tank1 Tank2 Tank3 Water Tank Sensor Figure 7: Trek to BatteryPlus35 Wiring Figure 7: Trek to BatteryPlus35 Wiring WATER TANK LEVEL WIRING Digital Sensor 1.
Page 20: Servicing
WARNING Doing so may result in electric shocks or fire. REPAIRS AND AFTER-SALES SERVICE Consult your BM PRO by Setec dealer. TROUBLE-SHOOTING Trek not responding; If the Trek seems to have stopped responding while pressing buttons, wait for 30 seconds and the Trek will reset and resume operation.
Page 21: Warranty Terms And Conditions
WARRANTY TERMS AND CONDITIONS Registering your BM PRO by Setec product is an important step to ensure that you receive all of the benefits you are entitled to. Please visit www.teambmpro.com to complete the online registration form for your new product today.
Page 22 NOTES:...
Page 23 NOTES:...
Page 24 the bm batterycheck WARRANTY The BatteryCheck is an easy to install device that sets a new standard in battery management systems. This innovative product connects to your deep cycle battery and communicates wirelessly with smart phones. The BatteryCheck provides real time battery management data that allows you to effectively manage remaining battery energy via a simple to use app.
