User Manual

AKEEYO

Intelligent Mirror Dash Cam

AKY-V360ST

Thank you for purchasing our product.

Please check this user manual before using the product.

After reading the user manual, keep it in a safe place together with

the warranty card and read it when necessary.

Email ： help@akeeyo.com

Website: www.akeeyo.com

Table of Contents

Need help?

Do you have a question about the AKY-V360ST and is the answer not in the manual?

Questions and answers

Summary of Contents for Akeeyo AKY-V360ST

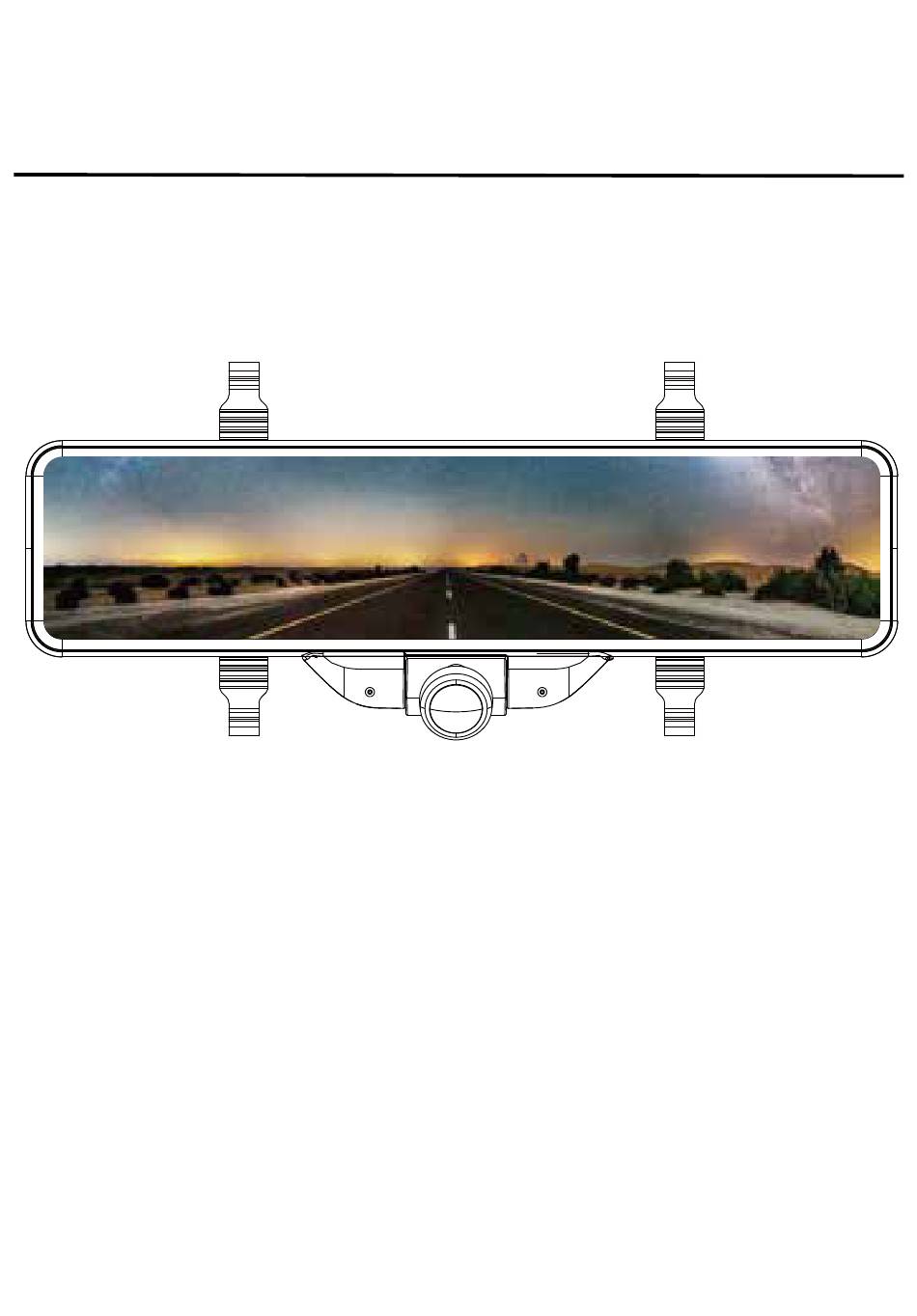

Page 1 User Manual AKEEYO Intelligent Mirror Dash Cam AKY-V360ST Thank you for purchasing our product. Please check this user manual before using the product. After reading the user manual, keep it in a safe place together with the warranty card and read it when necessary. Email ： help@akeeyo.com Website: www.akeeyo.com...
Page 2: Table Of Contents
Contents ■ Safety precautions................1˜4 ■ What s in the Box.................5˜6 ■ Product Overview................ 7˜9 ■ Installing the Host.................10 ■ Installing Rear Camera..............11˜14 ■ Installing Side Camera..............15˜17 ■ Installing Hardwiring Kits.............18˜19 ■ Installing MicroSD Card..............20 ■ Screen Mode...................21 ■ Video Mode....................22 ■ Recording Mode..................23 ■ Display Mode..................24 ■ Play Mode....................25 ■ Video Playback.................26˜27 ■ Menu Setting..................28˜29 ■ Speciﬁcations...................30˜31...
Page 3 Cautions before Installation This user manual is for AKY-V360ST. ● Rear Camera ： In the car （Without waterproof） ● Rear Camera ： In the car （Without waterproof） (Sold separately) ● Rear Camera: Outside the car (Waterproof IP67) ● Rear Camera: Outside the car (Waterproof IP67) (Sold separately) If you want to replace the rear camera after purchase, please contact the manufacturer.
Page 4 Cautions before Installation This user manual is for AKY-V360ST. ● Side Camera(Black): ● Side Camera(Silver): If you want to replace the rear camera after purchase, please contact the manufacturer.
Page 5: Safety Precautions
Safety precautions (Be sure to comply) To prevent traffic accidents and ensure your safety, please make sure to observe these precautions Please must sure to observe precautions to avoid Please must sure to observe precautions to avoid Warn Warn death or serious injury. death or serious injury.
Page 6 Safety precautions (Be sure to comply) Check the location of the car's pipes, Suitable for DC12/24V vehicles. water tanks and wires before installation. When drilling holes in the car to install This product is only suitable for the product, make sure the product DC12/24V vehicles.
Page 7 Safety precautions (Be sure to comply) Do not install this product or expose it to Do not install the product where it will be high temperatures. exposed to water, humidity, dust or oily smoke. If it is exposed to direct sunlight or If it gets wet with water due to rain or hot air, it can cause the internal car washing, or moisture, dust, oily...
Page 8 Precautions for use (Be sure to comply) ●We are not responsible for traffic accidents or violations that occur while using this ●We are not responsible for traffic accidents or violations that occur while using this machine. Please drive safely. machine. Please drive safely. ●This unit does not guarantee that images will be recorded under all conditions.
Page 9: What's In The Box
What’s in the Box Main Unit & Accessories Mirror Dash Camera Car Charger GPS Receiver Clean Cloth Rubber Mounting Strap MicroSD Memory Card User Manual & Warranty Optional Parts •Rear Camera(Without Waterproof) Rear camera connection cable Rear Camera Pull back bracket •Rear Camera(Waterproof) Rear camera &...
Page 10 What’s in the Box Optional Parts •Side Camera (Black) •Side Camera (Silver)
Page 11: Product Overview
Product Overview ① ② ③ ④ ⑤ ⑥ ⑦ ⑬ ⑨ ⑧ ⑩ Rear Camera ⑫ ⑪ ⑮ ⑮ ⑭ ⑭...
Page 12 Product Overview ① USB Charging Port 　 Connect the cigar adapter. ② MicroSD Card Slot Insert the microSD card. ※Be careful not to insert or remove it with excessive force. ※If it is difficult to insert the microSD card, remove it once, check the orientation of the microSD card, and then insert it again vertically or horizontally.
Page 13 Product Overview ⑨ Vent & Heat Sink Do not block the vents or heat sink of the equipment, or the heat may be trapped inside the equipment and cause a fire or malfunction. ⑩ Front Len Note: A protective film is attached at the time of shipment from the factory. Please remove it before use.
Page 14 Installation Instructions Host Mounting Use a fixed sliding arm and a fixed strap to install the machine on the original rearview mirror of the car. ※During installation, in order not to impose a strong load on the rear-view mirror in the car, please fix the machine and the rear-view mirror firmly together.Please support while installing.
Page 15 Installation Instructions Rear Camera Mouting (Without Waterproof) <Mounting Method> 1.Determine the installation position of the rear camera, and stick the rear camera bracket on the rear glass. ※Wipe off the oil and dirt on the sticking surface, and after it is fully dried, stick it firmly on the rear glass with double-sided tape.
Page 16 Installation Instructions Rear Camera Mounting （Without Waterproof） 3.Route the rear camera cable to the rear window. In the illustration on the left, the underside of the car is wired, but this depends on the type of car. At this time, the cable of the rear camera must pass through the upper part of the car (U-shaped roof, inner lining, etc.).
Page 17 Installation Instructions Rear Camera Mounting （Without Waterproof） 5.Please slowly open and close the back door and trunk to ensure that the wires are not pinched. ※If moisture or water enters the inside of the rear camera or the cable, it will cause damage to the rear camera or the cable.
Page 18 Installation Instructions Rear Camera Mounting （Waterproof） Since the rear camera is waterproof, it can be installed inside or outside the car. 〈Installation Position〉 : Nearby the license plate Rear windshield 〈When installing in the car：〉〈When installing outside the car：〉 1.
Page 19 Installation Instructions Side camera ① Installation method The side camera has the world standard P65 waterproof performance, not only waterproof, but also sand-proof And to prevent dust from entering the interior. 〈Installation Method〉 No rotation! ! 1.Please wipe the bottom of the car's rearview mirror with a cleaning cloth. 2.Before installing the camera on the door mirror, temporarily install it on the door mirror.
Page 20 Installation Instructions Side camera ② Installation method The side camera has the world standard P65 waterproof performance, not only waterproof, but also sand-proof. And to prevent dust from entering the interior. 〈Installation Method〉 1.Please wipe the body on the left side of the car with a cleaning cloth. 2.Before attaching the camera to the door mirror, we first install it on the car.
Page 21 Installation Instructions Installation diagram ❹ ❺ 本体 ❺ ❶ ❷ ❹ ❸ ❶ ❷ ❸ Installed on the left Installed on the right Side camera① 本体 ❹ ❸ ❹ ❷ ❸ ❶ ❷ ❶ Installed on the left Installed on the right Side camera②...
Page 22 Installation Instructions Hardwiring Kits Installation method NOTE: Make sure the engine is off and accessory power is off before proceeding. •Step 1: Locate your Fuse Box Fuse boxes and fuse types vary not only between car models, but also on year and variant.Check the Car Manual to find the fuse box location and confirm the fuse type.
Page 23 Installation Instructions Hardwiring Kits Installation method •Step 4: Connect the fuses ①Red (ACC) accessory power supply — Connect to a fuse that turns on / off with the engine. ②Yellow (Battery) constant power supply — Connect to a fuse that is always powered, the connection must be made after passing through the fuse.
Page 24: Installing Microsd Card
About MicroSD Memory Card 1. Pay attention to the insert direction of the MicroSD card and insert it into the slot. MicroSD Card Slot ＜Front View of the Main Unit＞＜Rear View of the Main Unit＞ 2.Make sure that the MicroSD card is securely inserted inside the slot. ※ Insert until you hear a click. 3.Gently apply force on the MicroSD card until it is ejected from the slot.
Page 25: Screen Mode
Function Overview Screen Mode ◎ Video Mode After powering on, the camera will enter video mode. Front and rear view will be shown and recorded. ◎ Mirror Mode You can use it as a rear-view mirror by turning off the LCD screen. ※...
Page 26: Video Mode
Video Mode Type of recording Driving (Engine On) Parking (Engine Off) Re-driving(Engine On) <Driving mode> <Parking monitoring mode> <Driving mode> Loop recording Loop recording P shock perception recording Emergency recording Emergency recording Emergency recording(manual) Emergency recording(manual) 1.Driving(Engine on) [Continuous Recording] Continuously recorded data [G-Sensor] Shock recording data Power On...
Page 27: Recording Mode
Recording Mode The 15-second video up to just before the accident + the 15-second video after the accident is detected will be saved as a 1-unit file (30 seconds in total). continue recording • • • Accident Parking Mode ※A dedicated katallobar can be used to activate parking monitoring (OP sold separately).
Page 28: Display Mode
Display Mode Side Camera & Without side camera ● By double-clicking the rear image part, the rear image is displayed in full screen. ※ The front image cannot be displayed on the full screen. ● You can rotate the angle of the front image by swiping your finger left/right, except wide mode.
Page 29: Play Mode
Play mode (file play/delete) The captured moving images or still image files can be played on this machine. File selection •Touch the monitor screen to display the menu bar, and display the file management menu. •Choose the type of camera to shoot (see the picture below). •Touch the displayed file.
Page 30: Video Playback
Video Playback Video Playback ① The recorded videos can be played back. ② Playback of videos can be done on a computer. By using the dedicated software, you can view the recorded videos. ※ The dedicated viewer is saved on the SD card, so you can read the SD card directly on the computer.
Page 31 View Video Playlist ４） Start the dedicated playback software. ③ ④ ⑤ ⑥ ① ② ⑦ About 2.5 m ⑧ ⑩ ⑪ ⑨ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑㉒㉓㉔㉕㉖㉗㉘㉙...
Page 32: Menu Setting
Menu Setting Setting ○ ○ ○ Loop recording １min 2min 5min ○ ○ ○ ○ G-sensor sensitivity MIDDLE HIGH ○ ○ Frequency 50Hz 60Hz ○ ○ Record audio ○ ○ Rear camera Mirror Normal ○ ○ ○ １min 2min Always Screen saver ● Loop recording You can choose 1min/2min/5min as the continuous recording time.
Page 33 Menu Setting Setting ○ ○ ○ Language Japanese English Chinese ○ ○ ○ Sound Middle High ○ ○ HUD mode ○ ○ Speed+ Speed Date Direction+Date ○ ○ HUD speed km/h Reset Format System ２０２０ − ０４ − ０２ AKY-V360S̲V1.0 20200402 Version ●...
Page 34: Specifications
Specifications Model number/ AKY-V360ST Product name Smart car rearview mirror (equipped with driving recorder function) MicroSD Card Micro SD 8~128GB(※ Class10 or Higher) 360mega 1920 * 1920P Front Camera SONY IMX335 F/2.0 200Mega 1080 * 1080P Rear Camera SONY IMX307 F/2.5 Video ﬁle conﬁguration 1min/2 min/5 min Screen size 11.88 inch IPS Wide-angle mode / Spherical mode /Left middle right / Image split display Multi-window mode G-Sensor Support Voice recording Front end of support Support(Requires dedicated always-powered cable) Parking monitoring Support Microphone Built-in high-sensitivity microphone 1W/8Ω ×1 Speed Record method Continuous Recording/impact Recording/parking detection Recording/ Still image shooting File format Video: .ts Picture: .jpeg...
Page 35 Specifications (Side Camera) Type Side cam(Black) Side cam(Silver) Picture 2 million pixels 2 million pixels Resolution 1920*1080P 25fps 1920*1080P 25fps Waterproof IP65 IP65 Left rearview mirror / Right rearview mirror / Installation Left rearview mirror / Windshield (facing inside the car)/ position Side of the left door Windshield (facing the front of...
