PCIe-9834
Getting Started
Check Package Contents
Plug PCIe-9834
into PCIe Slot
Install PCIe-9834
Perform Initial Capture
Package Contents
Your package should contain:

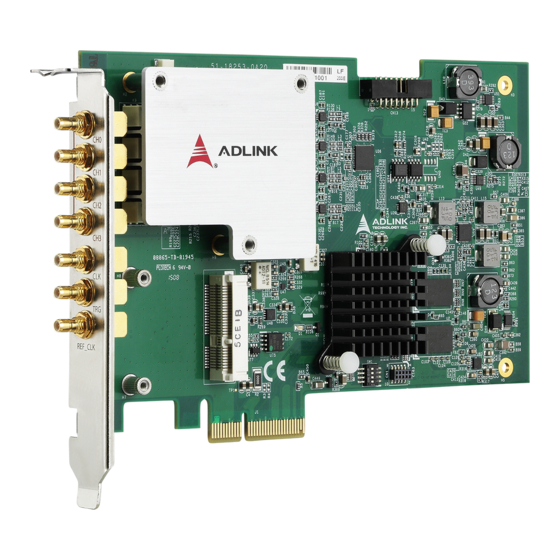

PCIe-9834 card
Quick Start Guide (this document)
All-In-One CD (drivers and User's Manual)
P/N 50-40321-5000
4CH 16-Bit 80MS/s Digitizer
PCIe-9834/PCIe-9834P
Driver
Quick Start Guide
PCIe-9834
Features
Supports 4-CH simultaneous
analog inputs up to 80 MS/s
High 16-bit resolution with low
front-end distortion
Data streaming up to 640 MB/s
1G onboard memory
10 or 20 MHz digital onboard
filter (FPGA)
PLL module for precise synch
(PCIe-9834P only)
PCI Express x4 compilant
Installing the Card
1.
Remove the computer cover according to the manual.
2.
Locate a vacant x4, x8, x16 or faster slot.
3.
Remove the slot cover (if any).
4.
Carefully position the PCIe-9834 in the selected PCI
express slot. If installing in a tower computer, align
the board with the board slots.
5.
Press the board firmly but carefully into the connector.
6.
Anchor the board with the screw.
7.
Connect the SMB to BNC coaxial cable to the analog signal
source and PCIe-9834
8.
Power up the computer.
Rev. 2.00
Power consumption:
3.3V: 20mA
12V: 470mA (PCIe-9834)
12V: 697mA (PCIe-9834P)
One external digital trigger
input
One external clock input
One external reference
10MHz clock input
(PCIe-9834P only)
Auto-calibration
Dimensions: 167.64 x
106.68 mm (W x L)
Aug. 31, 2016
