Summary of Contents for Esta Extraction Table

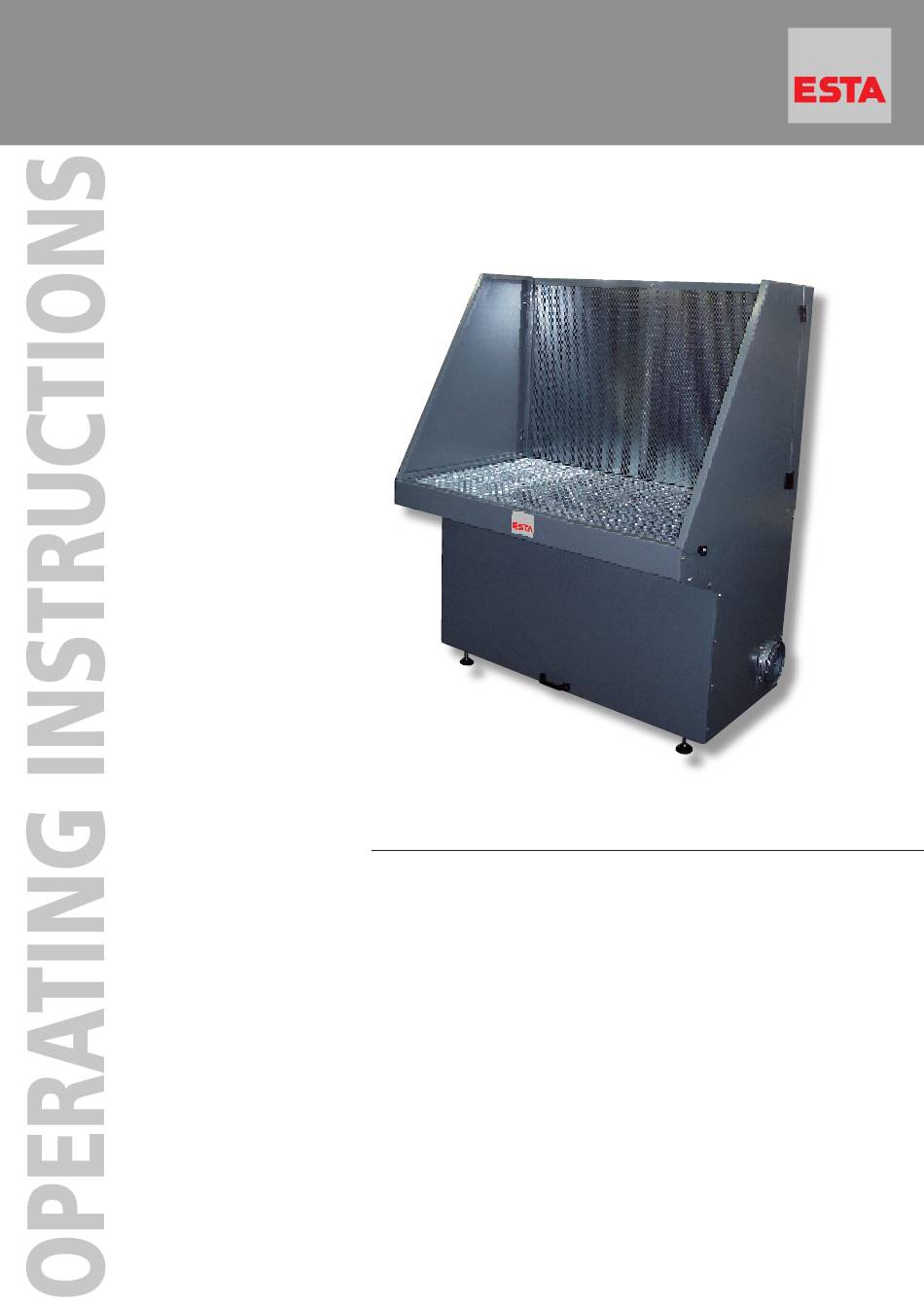

- Page 1 The World of Extraction Extraction Table...
- Page 2 The World of Extraction Welcome to the sphere of suction technology Your purchase of an ESTA machine has been a good decision. The design of our quality products complies with the latest state of the art. ESTA products have been devised to provide for clean air at the workplaces at which they are applied.
- Page 3 Operating manual Welding and grinding table Item No. 44.010 (A 880) Item No. 44.020 (A 1280) Item No. 44.030 (A 1680) Item No. 44.040 (A 2080) Item No. 44.011 (A 880) side panel) Item No. 44.021 (A 1280 side panel) Item No.
- Page 4 44.010 // 44.020 // 44.030 // 44.040 // 44.011 // 44.021 // 44.031 // 44.041 // 44.012 // 44.022 // 44.032 // 44.042 and variations Publisher ESTA Apparatebau GmbH & Co. KG Tel.: +49 (0) 73 07 80 4 -0 Gotenstraße 2-6...
-
Page 5: Table Of Contents
Contents Contents ............................. 3 General instructions ......................4 Product identification ......................5 Technical data ......................... 5 Intended use ........................6 Product description ......................8 Device diagram ....................... 8 ... -
Page 6: General Instructions
1. General instructions Before operation, all persons who are to use the device or perform maintenance on it must be provided with information, instructions and training in using the device and on the substances for which it is to be used, including the procedure for safe disposal of the collected material. -
Page 7: Product Identification
2. Product identification Technical data 2.2.1 “Standard” welding and grinding table We reserve the right to make technical changes. Item No. 44.010 44.020 44.030 44.040 Model A 880 A 1280 A 1680 A 2080 Work surface (L x W) [mm] 800 x 700 1,200 x 700 1,600 x 700 2,000 x 700 Connection diameter... -
Page 8: Intended Use
only for dry cleaning. for connection to a filter or suction device (such as a suction fan, etc.) Other applications are considered unintended use. ESTA is not liable for damages due to unintended use! The manufacturer sets up the device according to the operator’s information. - Page 9 2.2.3 Unintended use The device has been manufactured according to the state of the art and recognized safety regulations. Unintended use may cause hazards. Therefore: Do not use the device for extracting fumes from welding oil-moistened parts. Do not use it for extracting combustible welding fumes. ...
-
Page 10: Product Description
3. Product description Device diagram 3.1.1 Welding and grinding table with side panel and rear panel extraction Side panel and lid (hinged) Rear wall extraction Exhaust port (can also be on the other side) A drawer for coarse dirt Welding and grinding table 44010-52-01... -
Page 11: Functional Description
Functional description The welding and grinding table is a surface for welding and grinding work, but it can also be used for other materials processing. When it is connected to a filtration device, the extracted air is filtered and can be routed back into the room. -
Page 12: Safety Instructions
CAUTION Instruction about a hazard. Failure to comply can lead to mild injury and to damage to the device. Explanation of symbols Further information Reference to ESTA customer service Reference to legal regulations Welding and grinding table 44010-52-01... -
Page 13: General Safety Instructions
General safety instructions During exhaust, the volume flow returned from the device into the room should be no more than 50% of incoming air. With free room ventilation, the incoming airflow must equal the room volume every hour. This means that the rate of air replacement must be once per hour. -
Page 14: Preventing Dust Hazards
Preventing dust hazards CAUTION Damage due to dust release Maintenance, cleaning, repair and emptying must be done only by expert personnel. Wear personal protective gear. Respirator mask (particle filter class P3) Protective clothing Safety gloves Set up locally filtered forced-air ventilation when the device is being maintained, inspected or cleaned. -
Page 15: Delivery And Start-Up
Upon delivery, please inspect the device for transportation damage. Damage determined must be reported and documented immediately. ESTA customer service: +49 (0) 7307 804 - 0 44010-52-01... -
Page 16: Connection
Connection During set-up, make sure that the device is level. If the floor is uneven, a SW 19 open-end wrench can be used to even the adjustable feet. No other assembly work is needed for the welding and grinding table. If a filter or suction device is used for the table, a conductive pipe joint must be connected air tight to the intake port provided for the purpose. -
Page 17: Maintenance & Troubleshooting
7. Maintenance & troubleshooting Maintenance instructions CAUTION Damage due to dust release Maintenance, cleaning, repair and emptying must be done only by expert personnel and according to applicable occupational safety regulations. Wear personal protective gear. Respirator mask (particle filter class P3) Protective clothing Safety gloves ... -
Page 18: Inspection And Maintenance Intervals
We’ll make you a great offer — just call us up: Get the most from ESTA’s maintenance service! ESTA maintenance service: +49 (0) 7307 804 - 0 ESTA replacement part service: +49 (0) 7307 804 - 0 Welding and grinding table 44010-52-01... -
Page 19: Cleaning The Device
Cleaning the device CAUTION Fire hazard from deposited residue and caking inside the device Regularly remove combustible adhered residue. Prevent sparks from entering. During transport, close the intake port dust-free with sealing plugs. During welding and grinding work, dust caking and deposits cannot be prevented. It is therefore necessary to clean the welding and grinding table regularly with a suitable cleaner to ensure the table’s functionality. -
Page 20: Disposal
Package the device and the removed parts according to local regulations. Dispose of everything according to local regulations. Due to contamination of the device with toxic dust, ESTA cannot take the device or its parts back. Welding and grinding table... -
Page 21: Optional Equipment
Work on the electrical grid and on voltage conducting parts must be done only by an electrical specialist. Optionally, the extraction table can be equipped with lighting in the lid. Connect the extraction table to a suitable power source. 44010-52-01... -
Page 22: Electrical Sockets
Compressed air connection Optionally, the extraction table can be equipped with a compressed air connection. For this, a maintenance unit is attached to the extraction table. This is used to connect the extraction table to the local compressed air network. -
Page 23: Work Surface With Ball Casters
Work surface with ball casters CAUTION Heavy parts may damage the ball casters. Observe the ball casters’ maximum weight capacity. CAUTION Poor maintenance may damage ball casters. Make sure that the ball casters are maintained regularly. It is recommended that ball casters be lubricated regularly with oil or grease, depending on temperature or dirt exposure, in keeping with general regulations on roller bearings. -
Page 24: Electrically Conductive Throughout
9.10 Electrically conductive throughout The device can optionally be built electrically conductive throughout. This creates potential equalization between the processing machine and the workstation. Welding and grinding table 44010-52-01... -
Page 25: Declaration Of Incorporation
Gotenstraße 2 - 6 89250 Senden We hereby declare that the design of the incomplete machine Machine: Extraction table for capturing and separating dry, free-flowing dusts of dust class M and welding fumes. Series: Extraction table A Model: A 800... - Page 26 Safety and health protection requirements according to 2006/42/EC Appendix I that are applied and observed: 1.1.1; 1.1.2; 1.1.3; 1.1.5; 1.1.6 ;1.3; 1.3.1; 1.3.2; 1.3.3; 1.3.4; 1.3.6; 1.3.7; 1.3.8; 1.3.9; 1.4; 1.4.1; 1.4.2; 1.4.2.1; 1.4.2.2; 1.5; 1.5.2; 1.5.4; 1.5.5; 1.5.6; 1.5.7; 1.5.9; 1.5.10; 1.5.13; 1.6; 1.6.1; 1.6.2; 1.6.4;...
-
Page 27: Notes
Notes ESTA Apparatebau GmbH & Co. KG Gotenstraße 2 - 6 89250 Senden Tel.: +49 (0) 7307 804 - 0 Fax: +49 (0) 7307 804 - 500 E-mail: info@esta.com www.esta.com 44010-52-01 Welding and grinding table... -
Page 28: Notes
Notes ESTA Apparatebau GmbH & Co. KG Gotenstraße 2 - 6 89250 Senden Tel.: +49 (0) 7307 804 - 0 Fax: +49 (0) 7307 804 - 500 E-mail: info@esta.com www.esta.com Welding and grinding table 44010-08-01... -
Page 29: Notes
Notes ESTA Apparatebau GmbH & Co. KG Gotenstraße 2 - 6 89250 Senden Tel.: +49 (0) 7307 804 - 0 Fax: +49 (0) 7307 804 - 500 E-mail: info@esta.com www.esta.com 44010-52-01 Welding and grinding table... -
Page 30: Notes
Notes ESTA Apparatebau GmbH & Co. KG Gotenstraße 2 - 6 89250 Senden Tel.: +49 (0) 7307 804 - 0 Fax: +49 (0) 7307 804 - 500 E-mail: info@esta.com www.esta.com Welding and grinding table 44010-08-01... - Page 31 ESTA-FAX: + 49 (0) 73 07 - 80 45 00 I want to order the following items: Amount Order-No. Item description My address: Customer-No.: Company: Address: Contact person: Phone: Fax: E-mail: Signature: www.esta.com...
- Page 32 • Oil Mist Separators • Extraction Fans • Extraction Arms • Central Extraction Systems • Pipe Systems ESTA Apparatebau GmbH & Co. KG Gotenstrasse 2 – 6 D-89250 Senden, Germany Phone: +49 (0) 73 07 - 8 04 - 0 Fax: +49 (0) 73 07 - 8 04 - 500 www.esta.com...
