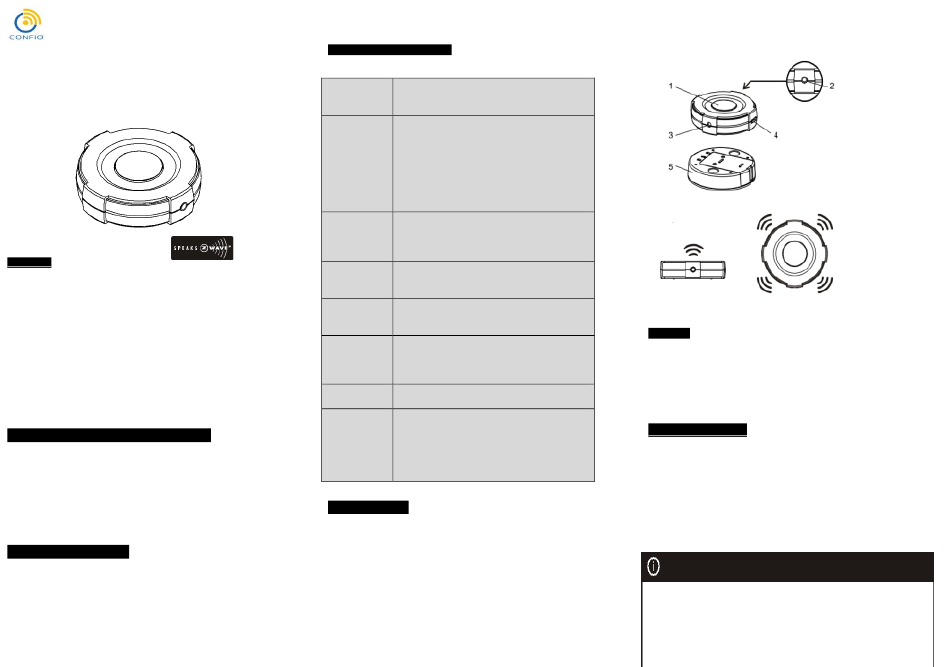

Confio Z-Wave-to-AC IR Extender User Manual

Z-Wave-to-AC IR Extender
USER MANUAL

Introduction

The Z-Wave to IR extender for air-conditioner (AC) works with any Z-Wave compliant gateway or
controller by translating Z-Wave Thermostat Commands to AC IR control code. User can select the
IR code from the built-in code library of Z-Wave-to-AC IR Extender, or use learning function, by
using Z-Wave Configuration Commands according to the parameter table. AC IR Extender is also
with built-in temperature sensor which allows gateway or controller to get the current room
temperature.
Z-Wave-to-AC IR Extender can be configured as either "Frequently Listening Routing Slaves"
FLiRS (if you are using battery) or "Always Listening" (if you are using 5Vdc adaptor) before
inclusion process. Refer to Glossary for definition of "FLiRS" and "Always Listening" mode.
Z-Wave-to-AC IR Extender supports Network Wide Inclusion (NWI) and Explore Frames. It also
supports Z-Wave networks with multiple gateways and controllers. Once the configuration and setup
is complete, the gateway or controller can use Z-Wave "Thermostat commands class" to control their
IR-controlled air-conditioner through the Z-Wave-to-AC IR Extender.

Controller and Gateway Requirements

The Z-Wave-to-AC IR Extender can work with any Z-Wave compliant controller or gateway
supporting the following Z-Wave commands.
- Configuration Command Class
- Multilevel Sensor Command Class
- Thermostat Command Class
> Thermostat Mode Command Class
> Thermostat Fan Mode Command Class
> Thermostat Set-point Command Class

Built-in IR code library

The Built-in IR code library supports most of the popular air conditioner brands in the market. Z-
Wave gateway and controller does not need to have any IR control code knowledge. User can use
Z-Wave controller or gateway to select the IR code according to the Z-Wave-to-AC IR Extender
code list separately provided through Z-Wave configuration command.

TECHNICAL SPECIFICATIONS

RF operating up to 80ft outdoor line of sight,in unobstructed
distance environment
Temperature Measurable range : 0°C ~ 40°C / 32°F ~ 104°F
Measurement
Report resolution : 1 Degree C
Operating 0°C~40°C
Ambient
Temperature
Storage 20°C~60°C
Temperature
Radio 865.2 MHz
Frequency
Dimension Dia=70mm, T=18mm(Main Unit)
Dia=70mm, T=18.5mm(Battery Chassis)
Battery Life 1 year
Weight 35g(Battery chassis excluded)
60g(Battery chassis included)
90g(Main+Battery chassis+AAA x3pcs)

Product Overview

1. "PROG" Button, Learning and LED Indication
2. Temperature sensor
3. External IR Port
4. USB Power 5V DC
5. Battery chassis
Surround IR Output for top and 4-direction

Items List

- Z-Wave-to-AC IR Extender
- Screws (bottom cover) x 2pcs
- AC Code List
- USB cable
- User Manual
- Warranty sheet

Setup and Operations

Before using the Z-Wave-to-AC IR Extender, please read the INSTALLATION if you need to mount
the Z-Wave-to-AC IR Extender to a wall. Power up the Z-Wave-to-AC IR Extender by the USB
Power 5Vdc or Dry battery AAA x 3pcs.
- Plug-in 5Vdc power into the USB socket if operated at Always Listening mode. Or
- Install 3xAAA batteries if operated at FLiRS mode.
- Please refer to the section of [MOUNTING PROCEDURE].
- Remove the battery cover on the back of your Z-Wave-to-AC IR Extender battery chassis.
- Mount the battery cover into the main unit with 2 screws.
- Check the polarity of the batteries and the "+/-" marks inside the battery compartment.
- Insert the batteries.
- Push the battery cover and main unit back in place.
CAUTION (battery and power adaptor safety)
- Use new batteries of the recommended type and size only.
- Never mix used and new batteries together.
- To avoid chemical leaks, remove batteries from the Z-Wave-to-AC IR Extender if you do not
intend to use the remote for an extended period of time.
- Dispose of used batteries properly; do not burn or bury them.
(Please carefully read through the following then store the manual for future reference.)
