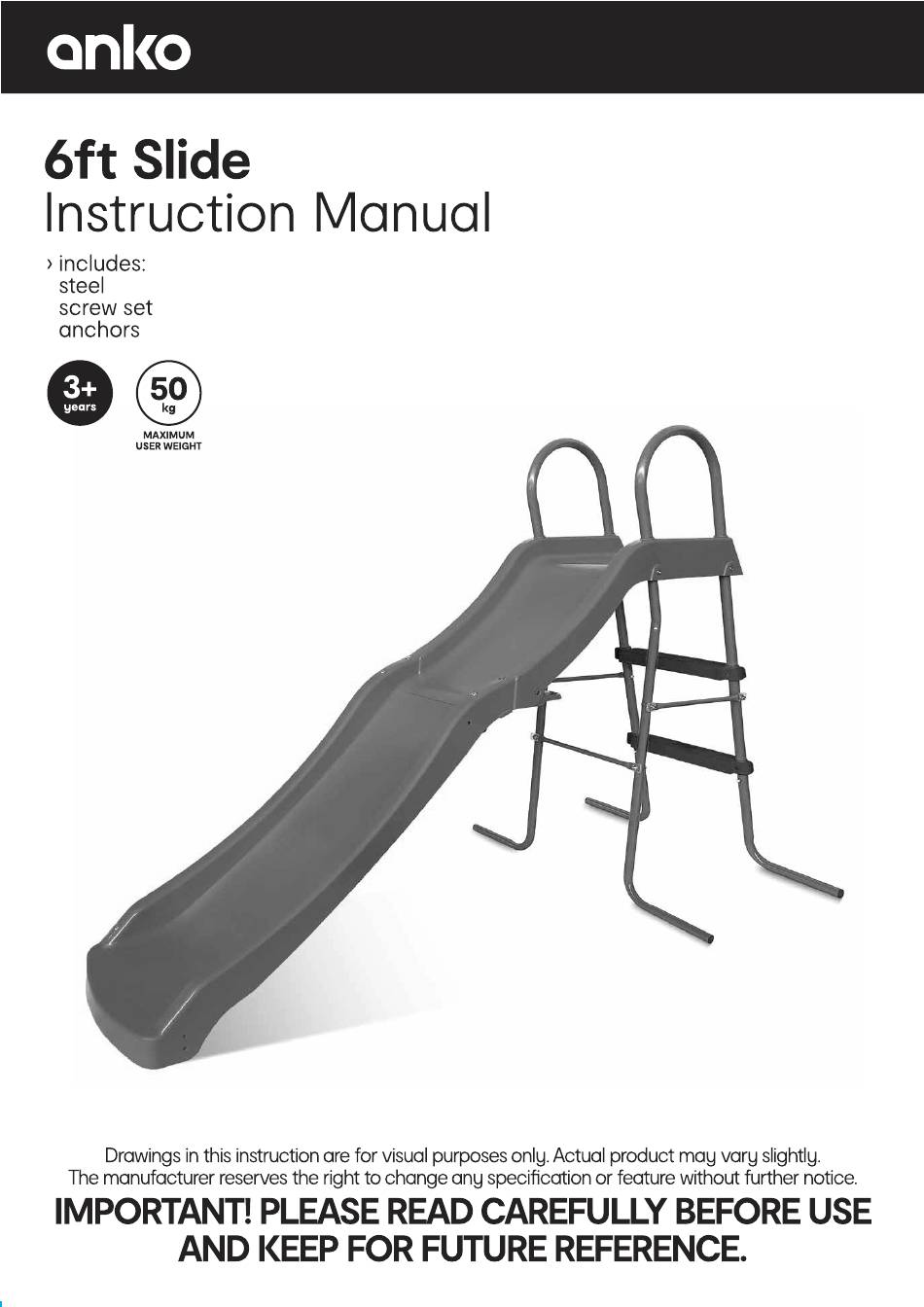

Summary of Contents for anko 43113422
- Page 2 6FT SLIDE SAFETY INSTRUCTIONS Observing the following statements and warning reduces the likelihood of serious or fatal injury. Provide on-site adult supervision for children 3+ years at all times. Be certain that all anchoring devices (including concrete) are placed below the level of the playing surface or below ground level to prevent tripping.
- Page 3 Adult assembly required Adult supervision required at all times Maximum user weight of 50kg Only for domestic use Outdoor use only Not suitable for children under 36 months - fall hazard Retain instruction manual for future use Children must understand how to use the product safely DO NOT allow children to play around product when in use DO NOT allow more than 1 child to use this product at a time Limit the time of continuous usage (make regular stops).
-
Page 4: Maintenance Instructions
MAINTENANCE INSTRUCTIONS: Checking fixings regularly. Injury may result if you fail to do so. Checking the nuts and bolts on a regular basis for tightness,sharp edges or deterioration. Tighten or replace when required. Check paintwork regularly and if needed touch up with enamel. Check all nuts and bolts for tightness and tighten when required. - Page 5 Bottom slide body Top slide body Slide body support Handrail Slide support leg E Slide support leg F Slide leg G Slide step Cross bar I Cross bar J Support bar...
- Page 6 Spanner Hexagonal Key Socket spanner Anchor Screw set 24mm M8x24mm WasherA M6x12mm Screw set 42mm M6x42mm Screw set 58mm M6x58mm WasherB Screw set 15mm M6x15mm WasherC Screw set 32mm M6x32mm Plastic cover...
- Page 7 Assemble the Top slide body to the Bottom slide body by following the step on the next page.
- Page 8 ② Step 1 Gently insert the three protruding points of the Top slide body (B) into the three holes of the Bottom slide body (A). Do not fully insert at this step. ① Step 2 Insert the two protruding points of the Top slide body (B) into the two holes of the Bottom slide body (A).
- Page 9 Step 4 Secure the three protruding points on the Top Slide body (B) with the corresponding ones on the Bottom slide body (A) by using the M6x15mm screw set (h). Step 5 Secure the Slide body support bar (C) to the slide by using the M6x15mm screw set (h), Socket spanner (c) and Hexagon key (b).
- Page 10 Step 6 Finally, secure the two slide parts together by using the M6x15mm screw set (h) on each side of the slide as pictured below.
- Page 11 Step 7 Insert the handrail (D) down through the holes at the top back of the slide. Align the holes in the handrail with the holes on top of the slide. Step 8 Insert the slide support leg (E and F) into the holes under the silde and up through the slide and into the handrail (D).
- Page 12 Step 10 Insert the handrail (D) through the slide steps (H) by fixing M6*42mm screw sets (f), and insert the slide leg (G) by fixing M6*32mm screw sets (i). Important: The slide steps must be positioned so they are flat and parallel to the ground. Slide the step through the handrail at the same angle as the holes in the steps.
- Page 13 Step 11 Cover the ends of the cross bar ( I and J) with plastic cover (j), connect the cross bar (I) and slide support leg (E and F) by fixing with M8*24mm screw sets (e), align the hole of the handrail with the support leg. Connect the crossbar (J) to the slide support leg (E and F) and the handrail (D) with M8*24mm screw sets (e).
- Page 14 Information on Playground Surfacing Materials Select Protective Surfacing One of the most important things you can do to reduce the likelihood of serious head injuries is to install shock-absorng protective surfacing under and around your play equipment. The protective surfacing should be applied to a depth that is suitable for the equipment height in accordance with ASTM Specification F1292.
- Page 15 12 Month Warranty Thank you for your purchase from Kmart. Kmart Australia Ltd warrants your new product to be free from defects in materials and workmanship for the period stated above, from the date of purchase, provided that the product is used in accordance with accompanying recommendactions or instructions where provided.
