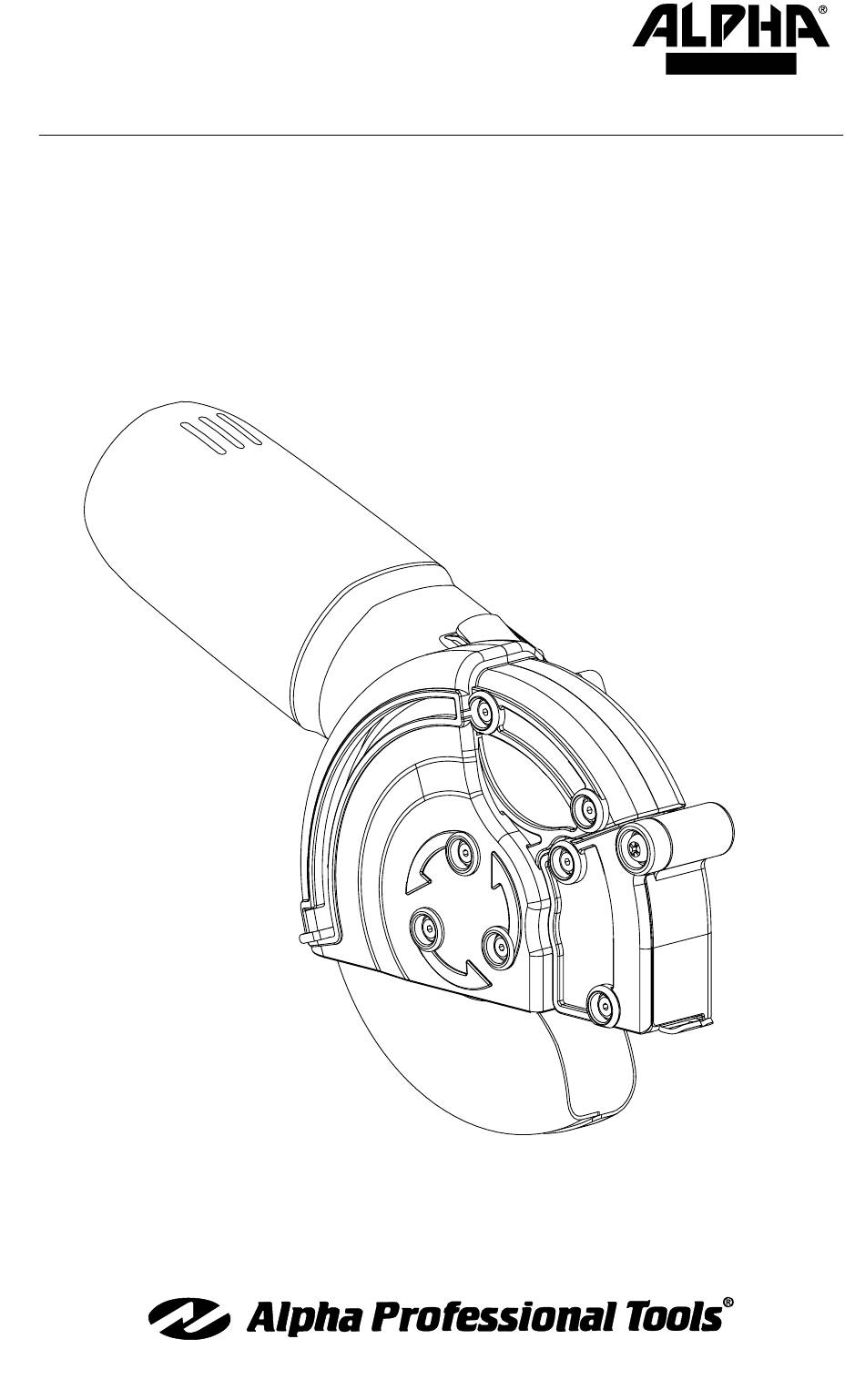

- Page 1 MANUAL Alpha Ecoguard Type M ® Spark Protection Cover Instruction Manual (*Shown with angle grinder / sold separately) Part No: ECOGRDSB Version 1 103 Bauer Drive, Oakland, NJ 07436 • 800-648-7229 • Fax: 800-286-0114 www.alpha-tools.com...
-
Page 2: Table Of Contents
TaBlE Of CONTENTS Introduction ....................3 about The Symbols ................. 3 Precautions for Using Spark Protection Cover ........3 Ecoguard Type M Overview ................4 Specifications .................... 4 accessories ....................5 Components ....................5 attachable Grinders ..................6 Ecoguard Type M Spacers and Connectors ..........7 Installation Of The Spark Protection Cover .......... -
Page 3: Introduction
INTRODUCTION Thank you for purchasing the alpha Ecoguard Type M aka Spark Buster. To ® ensure correct use, read this Instruction Manual and the Instruction Manual for the power tool and follow the operating instructions. Keep this manual in a place where operators can access it easily whenever necessary! aBOUT ThE SyMBOlS According to the hazard level, all safety notes in this manual are classified into “DaNGER”, “WaRNING”, and “CaUTION”. -
Page 4: Ecoguard Type M Overview
ECOGUaRD TyPE M OVERVIEW Protector assembly figure-1 Safety Guard assembly SPECIfICaTIONS Model Code ....................ECOGRDSB attachable Blade ..................7/8” (22.23mm) Tipped Saw Blade, abrasive Cutting Wheel, Diamond Blades Cutting Depth ......................1-5/16” (Do Not Cut the thick material exceeding the capacity of the Grinder) Weight ..................1.7lbs / 780g (Main Unit) attachable Grinders ........... -
Page 5: Accessories
aCCESSORIES figure-2 COMPONENTS additional Connector assembly for Most 5” Grinders .....3pcs Collar ....................2 pcs flange & lock Nut Set ................ 1 Set Spacers ....................2 pcs Side Plates & Washer Set ..............1 Set Pin Wrench ....................1 pc hex. Wrench ..................1 pc... -
Page 6: Attachable Grinders
aTTaChaBlE GRINDERS GRINDER SIZE MODEl GRINDER SIZE MODEl GRINDER SIZE MODEl 1800 D28110 alPha 5” hSG-125 ® 4-1/2” 1810PS 4-1/2” D28112 Ga4530 1810PSD D28402 Ga4534 1801 D28065 9564CV 4-1/2” 1803EVS D28114 DEWalT 9564PC 4-1/2” BOSCh / 5” 5” 1811PS D28115 9557NB 1821 D28131... -
Page 7: Ecoguard Type M Spacers And Connectors
ECOGUaRD TyPE M SPaCERS aND CONNECTORS figure-3... -
Page 8: Installation Of The Spark Protection Cover
INSTallaTION Of ThE SPaRK PROTECTION COVER WaRNING! 1. Be sure to turn off the variable-speed angle grinder and remove the plug from the electrical outlet before attaching and installing the Spark Protection Cover. 2. Make sure the Spark Protection Cover is securely attached; otherwise it may come loose which could cause injury. -
Page 9: Replacement Of The Side Protectors A And B
REPlaCEMENT Of ThE SIDE PROTECTOR a & B WaRNING! Be sure to remove plastic covers and replace with Side Plates a and B (Part before use. 500063 & 500064) Step 1 Remove Plastic Covers 500020 500060 figure-5 Side Protectors 500059 Step 2 Install [i] [k] Side Plates by [m] M4 Screws... -
Page 10: Installing The Connector
INSTallING ThE CONNECTOR & ThE COMBINaTION flaNGE, lOCKNUT & SPaCER 1. Choose the proper Connector for the Grinder. (See below) figure-7 ALPHA ® HITACHI BOSCH METABO DEWALT MAKITA ® MILWAUKEE MILWAUKEE Connector & Collar FACTORY PRESET 500068 Flange 500067 Lock Nut 500012/T5.0 500047/T4.0 Spacer... -
Page 11: Installation Of Blade
figure-9 3. adjust the angle of the Grinder so that it sits flat on the workpiece. 4. Tightly secure the Spark Collection Cover flush against the grinder. figure-10 INSTallaTION Of BlaDE 1. loosen the Knob Bolt to open the cover. 2. - Page 12 ® ® figure-12 4. Set the blade with ring and base flange, then tighten the wheel nut. Securely Close figure-14 figure-13 5. Close Main Unit and tighten Knob Bolt. WaRNING! Confirm the Guard is moving smoothly...
-
Page 13: Cutting Application
CUTTING aPPlICaTION figure-15 1. Turn on the switch of the grinder 2. Set the base on workpiece 3. Slowly push the grinder forward and start cutting WaRNING! • DO NOT contact the rotating Blade to the orkpiece directly. (Securely set the Base on workpiece first) •... -
Page 14: Alpha Ecoguard Type M Parts List
alPha ECOGUaRD TyPE M PaRTS lIST ® DRaWING NO. PaRT NO. DESCRIPTION QUaNTITy 500054 Main Guard-a 500055 Main Guard-B 3 & 4 500056 Protector assembly 500057 Spring 500058 holder Plate 500059 Side Protector-a 500061 Safety Guard assembly 500062 Sleeve 500060 Side Protector-B 500020 flat head Screw M4x5... -
Page 15: Alpha ® Ecoguard Type M Schematic
alPha ECOGUaRD TyPE M SChEMaTIC ®... - Page 16 103 Bauer Drive, Oakland, NJ 07436 • 800-648-7229 • Fax: 800-286-0114 www.alpha-tools.com Copyright © 2012 Alpha Professional Tools. All rights reserved. 04/2012...
