Stortford Coopers 9080 Instructions

Folding Wheelbarrow
Please read carefully before use and retain for future reference.

PARTS

Barrow x1
Nose x1
Axle x1
Wheel x1

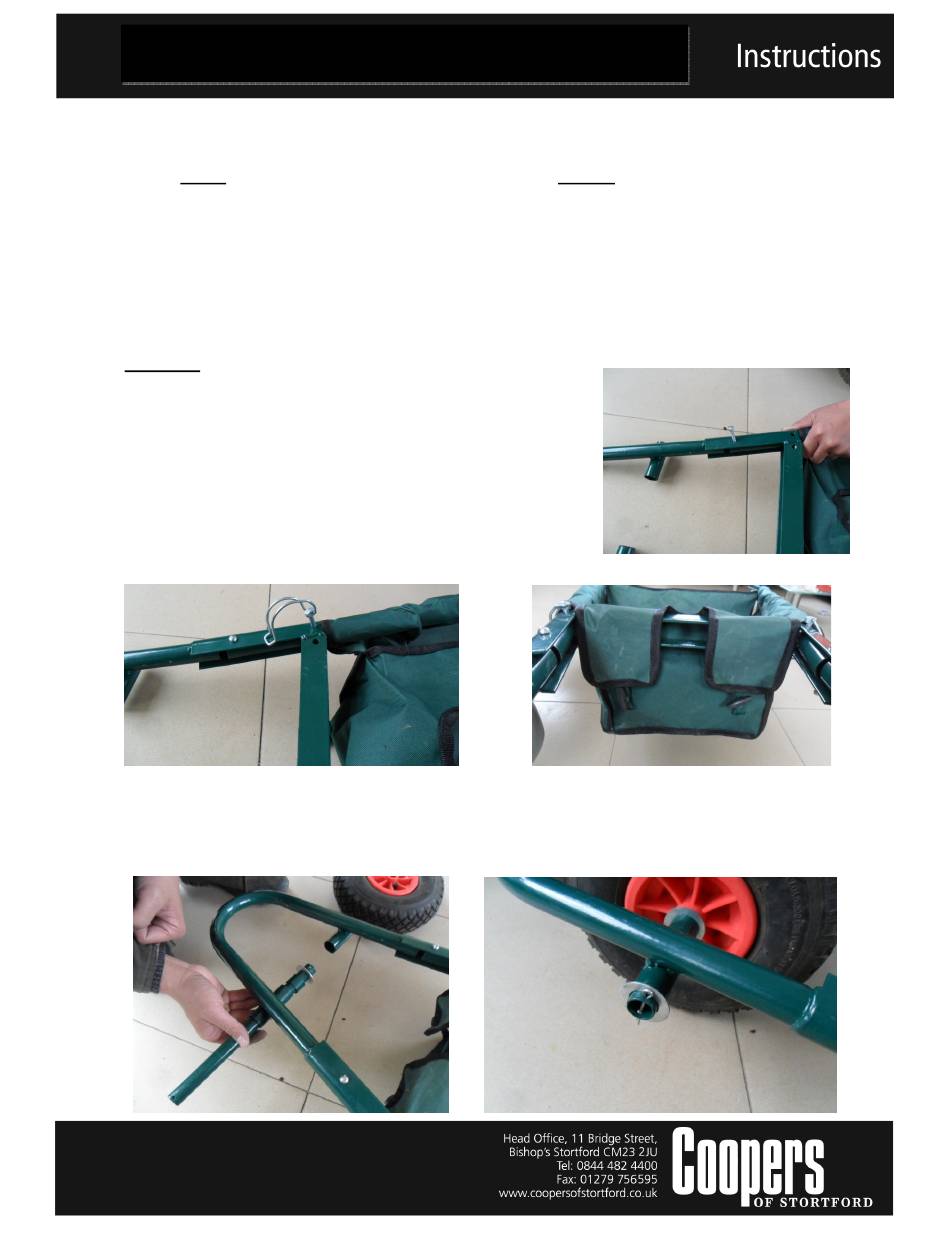

ASSEMBLY

Line up the hole on the nose with the holes on the barrow
•
frame. Fit bolts through both sets of lower holes to attach
nose to barrow, secure using small washers and locking
nuts – see right.
Secure flaps on barrow and fit the clips into both sets of
•
upper holes, ensuring the clip clamps down over the outer
side of the barrow frame – see below.
Attach the wheel to the axle ensuring that 2x large washers are positioned either side of the
•
wheel and the wheel spacers are positioned on the inside of the barrow frame. Secure using
the other 2x large washers and split pins.
9080

FIXINGS

Large washers x4
Bolts x2
Split pins x2
Small washers x2
Locking nuts x2
Clips x2
Wheel spacers x2
