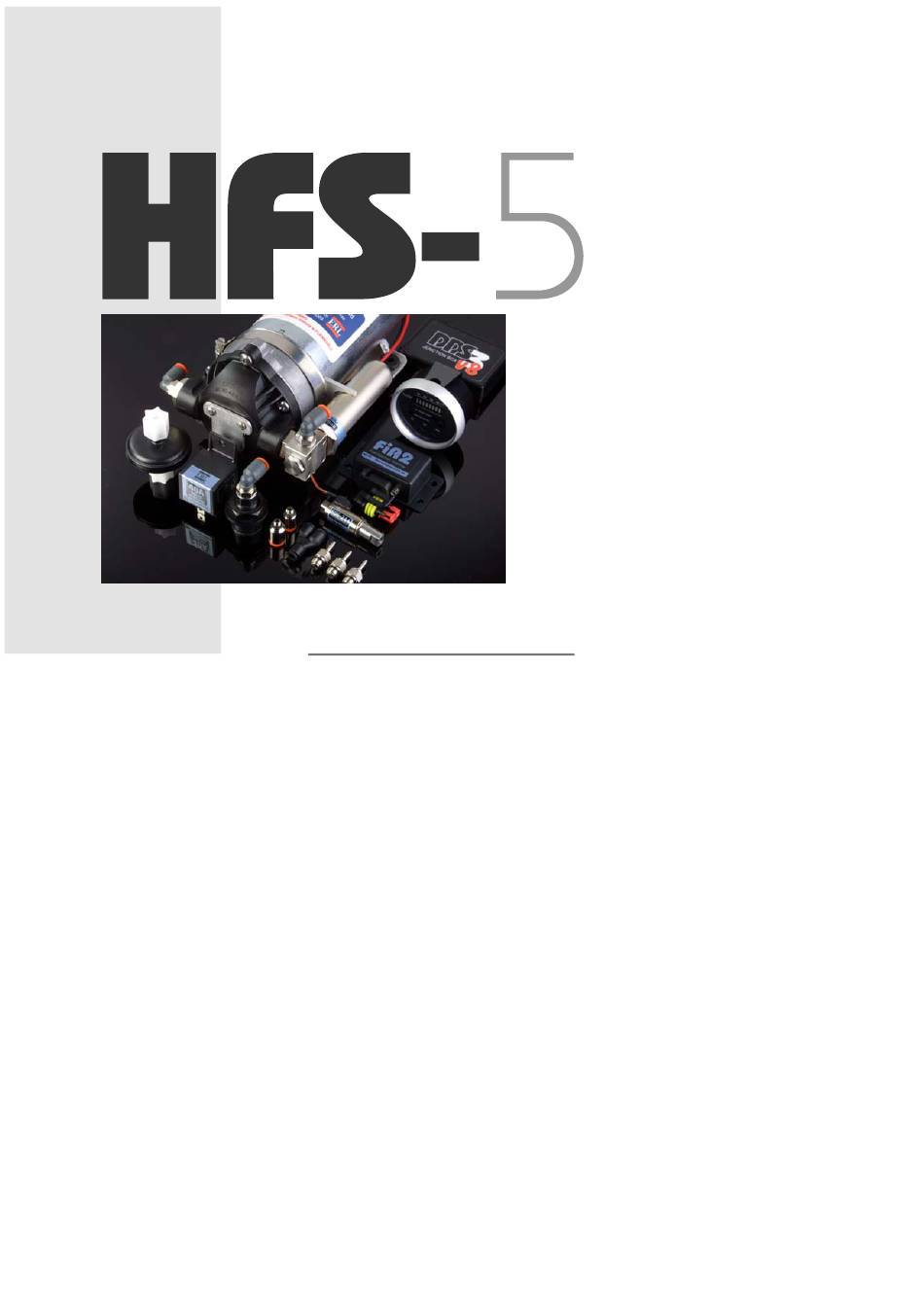

FIDC tracking water injection system
Instruction manual v3w1
GETTING TO KNOW THE AQUAMIST HFS-5
Over the last few years, demand for great engine power output is increasing. Cubic inches option is
no longer the norm. Squeezing out 200-300hp per litre is within the reach of the ordinary folks on the
street. The tuning industry has grown to embrace new tuning technique as well as readily affordable
components to produce powerful and reliable engines.
We, at Aquamist has also coming to terms with the inevitable, meeting the demands of the market
and offering new systems capable of supporting engine power output up to 1000+ BHP.
The HFS-5 reads the duty cycle of a fuel injector and delivers water proportional to fuel flow. Water
quantity is metered by a High speed inline valve and flow is monitored by a turbine flow sensor.
For clogged jet and severed hose. A number of options are available for the user to limit engine
power in the absence of water flow.
We believe the HFS-5 meets all the requirement of a high-end water injection system for achieving
fast engine transient and responses with absolute precision. Tracking the fuel delivery is the most
reliable method to deliver your fluid flow under the whole engine operating cycle. Anything short of
this means having to tailor your fuel map to compensate the irregular fluid quantity ingested by the
engine.

Advertisement

loading
Need help?

Need help?

Do you have a question about the AQUAMIST HFS-5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ERL AQUAMIST HFS-5

  • Page 1 FIDC tracking water injection system Instruction manual v3w1 GETTING TO KNOW THE AQUAMIST HFS-5 Over the last few years, demand for great engine power output is increasing. Cubic inches option is no longer the norm. Squeezing out 200-300hp per litre is within the reach of the ordinary folks on the street.
  • Page 2 Page 2 Contents: System overview Page Checking the contents of the box Getting started on installation Junction Box Junction box pin-out description Flow Sensor HFS/DDS3 HFS-5/DDS3 Dash Gauge Functions Powering the system up for the first time Failsfe with a number of options Failsafe: Boost control / MAP switch Wiring:...
  • Page 3 Page 4 Getting started on installation Before installations guidelines Water tank components ♦ The pump and water tank is designed to be fitted ♦ Ensure the outlet is facing the rear or the side of in the trunk. Install the water pump and inline the tank.
  • Page 4 Page 6 Flow Sensor sensor via a 4-core cable. Length can be extended up to 20 feet without any loss of accuracy. Diagram below show the pin-out and functions of the DDS3 terminals. Sensor V refers to the actual flow signal from the sensor.
  • Page 5 Page 8 Installation 8. Water injection enable button Due to extra power level achieved under WI, user want may want to reduce the power to the wheels The gauge will fit into any 52mm gauge pod and a in less than ideal driving conditions. Disabling the WI two-prong bracket is provided.
  • Page 6 Page 10 Failsfe with a number of options Assuming the system is running reliably and effective power enhancement modification. Wiring schematics for such a usage. (See page 16) worked properly without any issues. Implementing the failsafe option is the next step. The DDS can Standard factory car with light modifications: offer a number of options to be integrated into an Boost pressure is raised, Ignition and fuel map is...
  • Page 7 Page 12 Jet sizes and Advanced delivery management The HFS-5 is supplied with a set of high-flow Applications involving methanol mix beyond 50%: water jets, sized at 0.8, 0.9 and 1mm jet (see Great care and attention must be taken to ensure the fluid chart for flow rate).
  • Page 8 Page 14 AQUAMIST HFS-5 SYSTEM GENERIC WIRING DIAGRAM TRIGGER MODE: PWM :: FAILSAFE: BOOST CUT 806-431 FLOW SENSOR DDS3v8 JUNCTION BOARD 806-244 Part No. 806-428 Aquamist Flow range: 100-450ml/min Output range: 0.5-4.5VDC AQUAMIST +12V WFS ml/m Serial No: 22100 Made by ERL Ltd. Sussex England...
  • Page 9 Page 16 AQUAMIST HFS-5 SYSTEM GENERIC WIRING DIAGRAM G1-PWM-BC TRIGGER MODE: PWM :: FAILSAFE: BOOST CUT 806-431 FLOW SENSOR 806-244 DDS3v8 JUNCTION BOARD Part No. 806-428 Aquamist Flow range: 100-450ml/min Output range: 0.5-4.5VDC AQUAMIST +12V WFS ml/m Serial No: 22100 Made by ERL Ltd.
  • Page 10 +12VDC@3A 22awg +12V to High Speed Valve +12V 1A max Note: ERL reserves the right to make changes to our prod- Green 22awg FIDC signal pickup input (-ve switched) -PWM @10mA ucts without notice in order to improve design performance...
