Summary of Contents for AmpleNess S52200

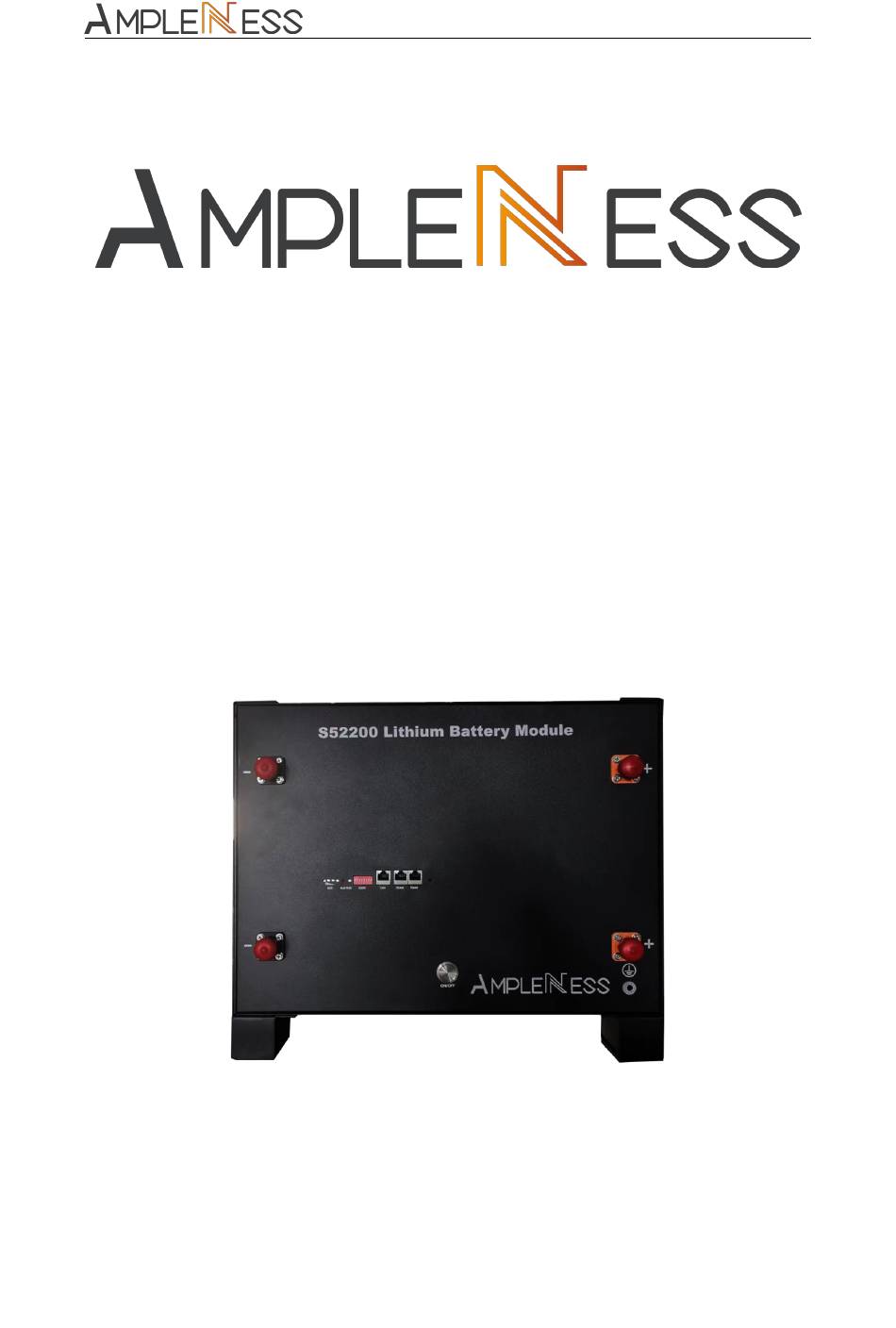

- Page 1 User Manual of Home Energy Storage System (Split Type) S52200 User Manual of Home Energy Storage System(Split Type)
-
Page 2: Safe Use
User Manual of Home Energy Storage System (Split Type) Security Disclaimer When installing, using, and maintaining the product, read this chapter carefully and follow the safety precautions in this chapter. The Company has nothing to do with any injury or loss caused by any illegal operation. - Page 3 User Manual of Home Energy Storage System (Split Type) 1. Before operation, please ensure that the product is used within the permitted working range to avoid damage to the product; 2. When the product is not used for a long time, the battery must be fully charged and the power switch must be turned off to avoid the battery stand for a long time leading to empty power;...
-
Page 4: Table Of Contents
User Manual of Home Energy Storage System (Split Type) Catalogue Safe use ............................2 1. Product introduction ....................... 5 2. Specification parameters ......................5 3. Product Function Description ....................7 4. Runtime environment ......................9 5. Packaging, transportation and storage requirements ............10 6. -
Page 5: Product Introduction
User Manual of Home Energy Storage System (Split Type) 1. Product introduction Split power supply is an energy storage product based on lithium iron phosphate battery 51.2V. It is equipped with a customized battery management system (BMS), designed for the energy storage needs of home photovoltaic power generation users. - Page 6 User Manual of Home Energy Storage System (Split Type) Type Parameter Rated input 54.4V voltage Input voltage Inverter input 36V≤U≤60V range （AC/DC） Input current ≤100A Interior input ＜6000W power Nominal 51.2V output voltage Output 44.8V＜U＜58.4V voltage range Output ≤100A System output (DC) Output power ＜6000W When the current is higher than 110A,...
-
Page 7: Product Function Description
User Manual of Home Energy Storage System (Split Type) Parallel power cable 50 mm², when used in parallel Output communication cable CAT5e, the length of 3.5m (Network cable) Products and connected to the CAT5e, the length of 0.35m Internet 2.3 List of attachment boxes Part name Specifications Remark... - Page 8 User Manual of Home Energy Storage System (Split Type) 3.2 Schematic diagram of the battery front panel 3.3 Description of each product component Name Function declaration Remarks Positive terminal Connect the positive terminal of ① the external device Negative terminal Connect the negative terminal of ②...
-
Page 9: Runtime Environment
User Manual of Home Energy Storage System (Split Type) Discharging low-voltage protection Charging over-voltage protection In discharging, the over-discharge protection In charging, the system will stop charging will start and battery stops to supply if the voltage of battery module or any electricity if the voltage of any single cell is single cell reaches to the protection value. -
Page 10: Packaging, Transportation And Storage Requirements
User Manual of Home Energy Storage System (Split Type) Altitude 2000m Away from heat source, avoid direct sunlight, no corrosive gas, no explosive gas,non-destructive insulation gas, non-destructive On-site environment insulation conductive dust 5. Requirements of Package, Transportation, Storage Items Methods Requirements Please avoid violent vibration, impact or Transport... - Page 11 User Manual of Home Energy Storage System (Split Type) Please ensure that the power distribution cables are routed properly and have protection, avoiding touching these cables when people operate the device. 6.1.2 Running environment examination The running environment should meet the above referred requirements. If it is not as request, please rectify it and re-examine running environment.
- Page 12 User Manual of Home Energy Storage System (Split Type) Limit point 6.2 Unpacking Please unload the product as requirements and prevent it from sun and rain when the device arrives at installing site. Before unpacking, please check the total number of materials in 【Shipping List】attached on package, and check whether is package is well packed or not.
- Page 13 User Manual of Home Energy Storage System (Split Type) Please take reference of the way recommended by manual to place the product. All devices must be firm during installation. Please arrange the stacked number of devices flexibly as actual needs. Don’t install batteries on sloping and unstable ground. 6.4.2 Ground wire connection Please unscrew the screw at the ground hole on front panel, install the ground terminal on the screw and tighten it with a screwdriver.
- Page 14 User Manual of Home Energy Storage System (Split Type) Wiring harness the inverter wiring harness Wiring harness in parallel Communication harness in parallel 6.4.5 Communication wire connection A single battery: just select the corresponding interface according to the communication protocol of inverter. Multiple batteries: the host and the slave batteries communicate in cascade mode, thereinto, one of them is the host, and the rest are slave batteries.
-
Page 15: Communication Settings
User Manual of Home Energy Storage System (Split Type) System Running Instruction State State ● ● ● ● ● ● Shutdown All OFF Dormancy Standby Standby state Normal Flash 1 LED flash 2 Follow battery capacity Normal maximum indication LED flash 2 Over-current Follow battery capacity Flash 2... -
Page 16: Abnormal Situation And Fault Handling
User Manual of Home Energy Storage System (Split Type) Ground 1 、8 2 、7 RS485-B RS485-A 3 、6 NV (hanging) 4 、5 The product has RS485 communication between battery packs, and baud rate is 19200bps. Please take reference for the above figure of communication interface definition. 7.2 CAN interface The product has the CAN communication function between battery packs and inverter, and baud rate is 500K. -
Page 17: Daily Maintenance And Recycling
User Manual of Home Energy Storage System (Split Type) whether load is short circuit Please turn off the load and restart Abnormal Over temperature it after temperature drops, check temperature inside box whether ambient temperature inside system exceeds the standards Low battery SOC too low Please charge the battery... - Page 18 User Manual of Home Energy Storage System (Split Type) About the information on proper disposal of old battery, please contact with your local recycling center or hazardous waste disposal center. Please don’t discard battery into fire as it may lead to the danger of explosion. Please take reference for your local regulations about battery disposal requirements and dispose the wasted battery properly.
