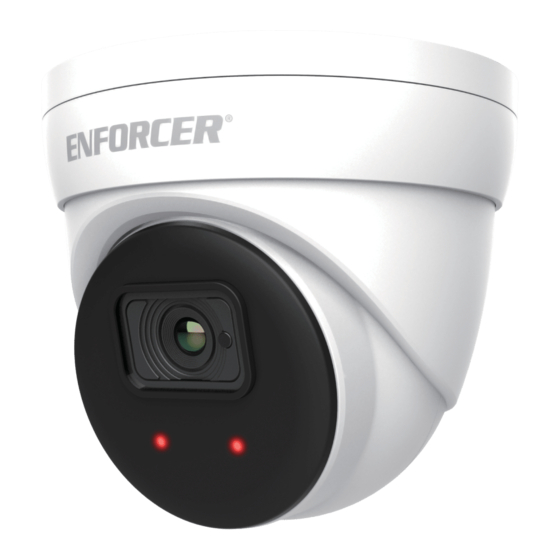

IP 5MP 2.8mm
Turret Camera
with WDR
EV-N2506-2W4WQ
Installation Manual
Features
1
/
" 5MP SmartSens CMOS sensor
•
2.7
• 30FPS@ 5MP (2880x1620)
• 2.8mm Lens
• Tri-stream encoding:
H.265, H.264, and MJPEG
• True Wide Dynamic Range (WDR)
• Digital Noise Reduction (3DNR)
• True Day & Night function with ICR module
• ICR sensitivity adjustment
• Corridor mode
• IP66 Weatherproof
• IR Range 98' (30m)
• Smart IRs adjust IR strength to conditions
• MicroSD Slot (512GB max)
• PoE (IEEE802.3af), 12VDC
• ONVIF
®
Profile G, S, and T conformant
• Operating temperature: -40°~131°F
(-40°~55°C)
ONVIF
®
is a trademark of ONVIF, Inc
AI Functions
• Human and Vehicle Detection
• Perimeter Intrusion Detection
• Line Crossing Detection
• Stationary Object Detection
• Cross Counting
• Heat Map
• Crowd Density Detection
• Queue Length Detection
• Face Detection
For the full Web Administration manual,
download from the camera's product
page on www.seco-larm.com.
Advertisement
Related Manuals for SECO-LARM ENFORCER EV-N2506-2W4WQ
Summary of Contents for SECO-LARM ENFORCER EV-N2506-2W4WQ
- Page 1 For the full Web Administration manual, • PoE (IEEE802.3af), 12VDC download from the camera’s product • ONVIF ® Profile G, S, and T conformant page on www.seco-larm.com. • Operating temperature: -40°~131°F (-40°~55°C) ONVIF ® is a trademark of ONVIF, Inc...
- Page 2 80mA max. IP Rating IP66 Operating temperature -40°~131° F (-40°~55° C) Dimensions ø3 "x3 " (ø100x90 mm) Weight 13.05-oz (370g) On-board storage Built-in memory card slot, supports MicroSD/SDHC/SDXC up to 512GB Overview ø3 " (ø100mm) " (90mm) SECO-LARM U.S.A., Inc.
- Page 3 8. Once installed, the user will be able to view live static IP setting is as follows: camera video and modify necessary IP Address: 192.168.0.10 (you can change the configurations. last column) NOTE: For the full Web Admin manual, download from the camera’s product page on www.seco-larm.com. SECO-LARM U.S.A., Inc.
- Page 4 IMPORTANT: Users and installers of this product are responsible for ensuring this product complies with all national, state, and local laws and statutes related to monitoring and recording audio and video signals. SECO-LARM will not be held responsible for the use of this product in violation of any current laws or statutes.
