The MXNet 10G SDVoE
Ecosystem
®
QUICK START GUIDE
Overview
The MXNet 10G SDVoE
®
Ecosystem is an AV-over-IP platform of products developed and designed by
AVPro Edge. This system is an ultra-low latency HDMI 2.0, 4K 60Hz 4:4:4 video, multichannel audio, and
®
control signal distribution system over 10G Ethernet infrastructure, based on SDVoE
standards and
Semtech
®
ASIC technologies. Crystal-clear 4K video is provided along with versatile AV and control signal
distribution applications.

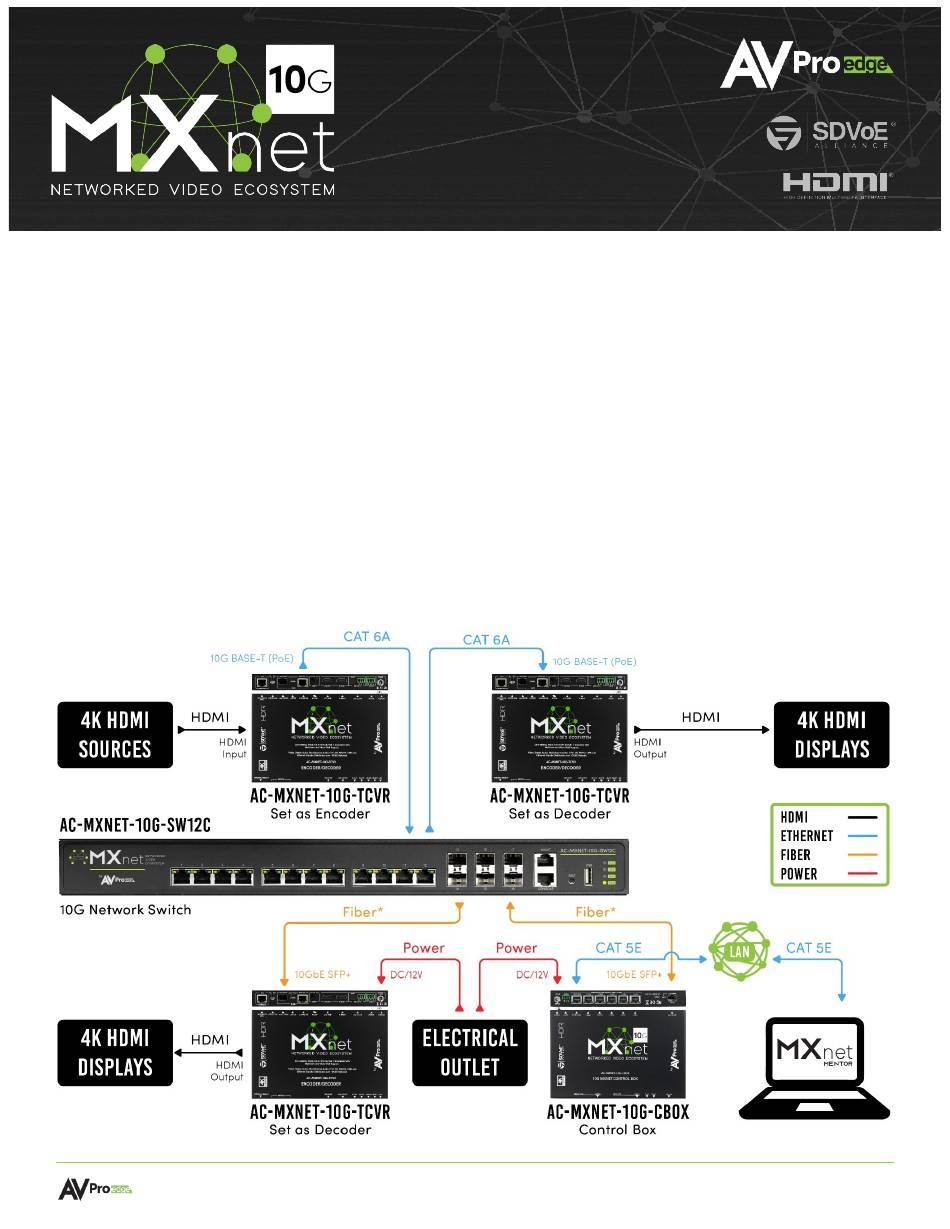

The diagram below shows the basic application with the AC-MXNET-10G-SW12C managed switch, AC-
MXNET-10G-TCVR transceivers, and AC-MXNET-10G-CBOX control box. The cable connections can be
Category cable, optical fiber, or a combination of both, as shown below.
Page 1 of 8
MXNET 10G SDVoE
®
Quick Start Guide
Advertisement
Table of Contents
Related Manuals for AVPro Edge AC-MXNET-10G-CBOX
Summary of Contents for AVPro Edge AC-MXNET-10G-CBOX
- Page 1 ® Ecosystem is an AV-over-IP platform of products developed and designed by AVPro Edge. This system is an ultra-low latency HDMI 2.0, 4K 60Hz 4:4:4 video, multichannel audio, and ® control signal distribution system over 10G Ethernet infrastructure, based on SDVoE...
- Page 2 1. Select the Transceiver Mode The encoder and decoder (transmitter/receiver) are combined into one chassis with a simple toggle switch to select application functionality. By default, the transceiver is set to decoder mode. Flip the ENC/DEC SELECT toggle switch to set the transceiver to encoder or decoder mode. (Front Panel) AC-MXNET-10G-TCVR To the right of the toggle switch is a blue LED that indicates the selected mode:...
- Page 3 For Optical Fiber Connections Flip the SDVoE SELECT toggle switch to the 10GbE SFP+ setting, then flip the POE SELECT toggle switch to the 1G setting. (Rear Panel) AC-MXNET-10G-TCVR Connect the SDVoE 10GbE SFP+ port on the transceiver to a 10G SFP+ port on the network switch (or an SFP28 port on the AC-MXNET-10G-SW12C).
- Page 4 3: Connect the Transceivers to the Network Switch Once the transceiver modes have been selected and the port types have been configured for Category or fiber cabling, connect the transceivers to the network switch. 4: Connect the Transceivers to their HDMI devices Connect the HDMI source devices to the HDMI IN port on the encoders, and the HDMI output devices to the HDMI OUT port on the decoders.
- Page 5 Press the SCROLL PAGE button located on the right side of the CBOX STATUS screen to view the IP address (by default, the CBOX is set to DHCP mode). (Front Panel) AC-MXNET-10G-CBOX Open a new tab in any web browser and type in the CBOX’s IP address. This will open the Mentor web interface welcome page.
- Page 6 7: Setup and Control using Mentor Home - SYSTEM UTILITIES After successfully logging in, users will be taken to the Mentor home screen with SYSTEM UTILITIES as the default page. This page shows the IP address for MXNet and the current firmware version on the CBOX.
- Page 7 Auto-Matrix - SWITCHING From here, users can switch between sources and displays, just like with an HDMI matrix switcher. The sources are located on the left, and the displays are on the right. Simply click on a source, then click the display it is to be viewed on. Matrix presets can also be saved and recalled on this page for faster switching.
- Page 8 MXNet switch) should be a link-local address of 169.254.x.x. If it is not a link-local address and the MXNet switch/CBOX is running on default factory configurations (no IP settings have changed), reach out to AVPro Edge Technical Support for further assistance. •...
