Summary of Contents for Daisy Under Bench Roller

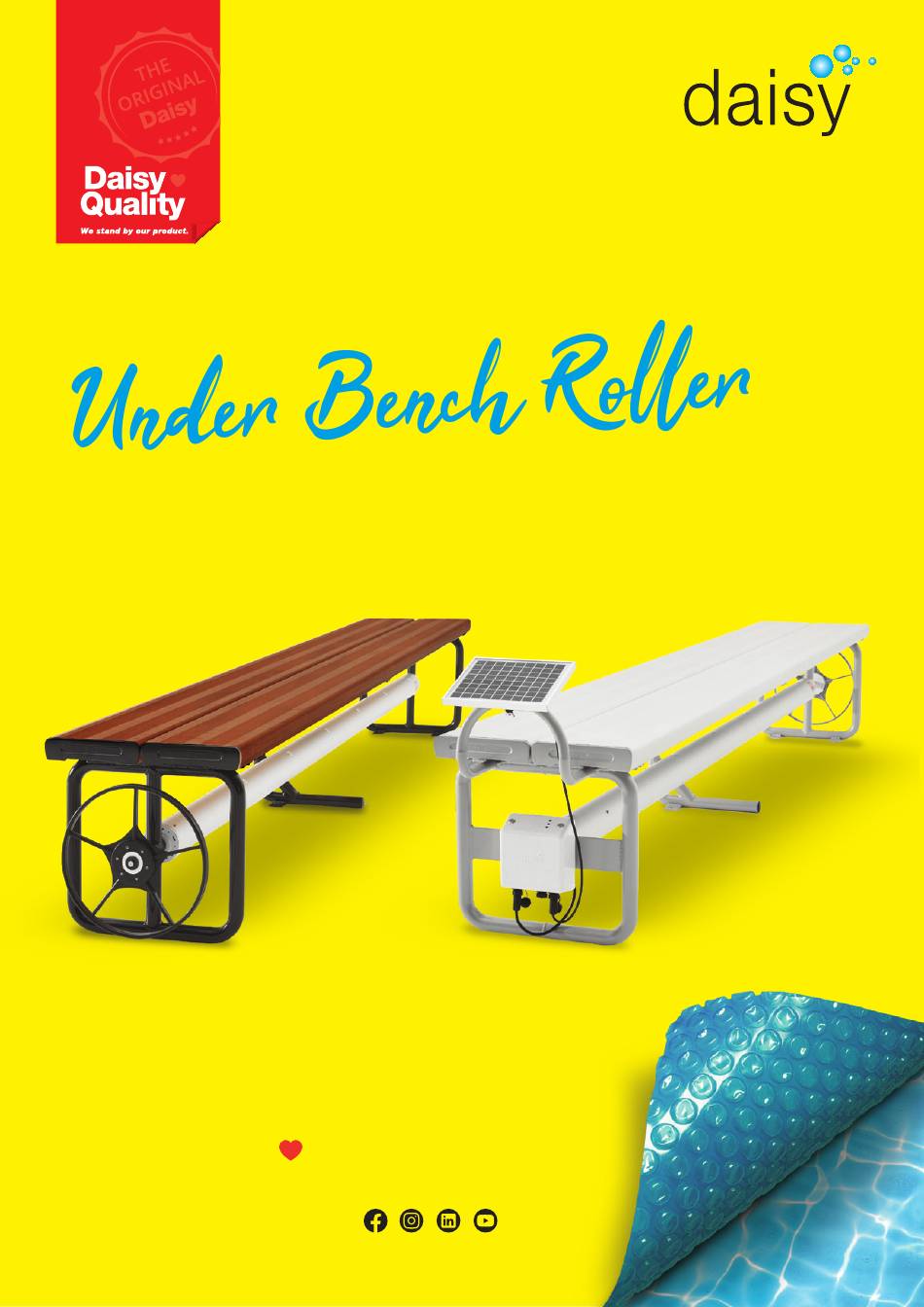

- Page 1 pool covers & rollers Installation Instructions AUSTRALIA’S FAV URITE. 1300 55 18 11 • daisypoolcovers.com.au Quality Technology Service...
-
Page 2: You Will Need
• Hammer Daisy wants you to be as happy as possible with your purchase. With a little care we can make sure the frames and planks are not damaged or scratched during installation. Don’t put parts directly on the ground. instead, use some pool cover off-cuts and carefully place the parts on this to protect them. -
Page 3: Installation
INSTALLATION (POWER VERSION SEE PAGE 6) Unpack and lay out all parts. Lay the 2x planks upside down with the arrows facing each other for correct orientation. Note the different coloured dots on each frame correspond to the same coloured dots on each end of the planks, so ensure you place the frames at the correct end. - Page 4 INSTALLATION CONTINUED Install tube assembly, then end frame onto the 2 planks while lining up the bolt holes. You may need to clip in Note: Bolt down tabs to face towards centre of the UBR. the frames. Install loosely the 8x M6 mounting bolts – do not tighten. Once you confirm the tube turns freely, tighten all frame mounting bolts.
- Page 5 Locate the UBR centralised to the pool in the position desired to anchor it down. Do Not anchor down at this point a. Install pool cover. b. Connect pool cover to roller using the cords and eyelets. Align the centre Feather Plug on the tube and mark the pool cover about 100mm in from the edge of the pool cover.
- Page 6 1. Decide what end you want the Daisy Power control housing and tube motor. To mount the tube motor together when the template is around the tube. This will ensure...
- Page 7 Ensure drive motor wire is running through the recess in the housing on the drive motor end, be careful not pinch wire when mounting. Install the tube motor onto the end frame, secure firmly 4x mounting bolts. Important: Make sure recess is facing DOWN when mounting to frame to avoid water filling up inside.
-
Page 8: Operation
Best indication of the battery condition is just after an operation (pressing a button) Battery condition light only illuminates when: Adjust the solar panel position by placing the shado 1. PV (solar panel) available or indicator in the centre of the solar panel, at midday adjust 2. - Page 9 Daisy Power Auto-Roll Function You can set the Auto-Roll timer function in either 2. After releasing the direction button, count to 3. direction. As the Auto-Roll is a timer, the roller position 3. Then press and hold BOTH tube motor direction...
- Page 10 AC charger is normally warm when working Red Light = Charging the battery, voltage <10.5V If Daisy Power unit is non-responsive: Is the unit responsive at all...any partial movement, humming, clicks or any response? Yellow light = Charging the battery, voltage (10.5V~11V)
-
Page 11: Test Procedure
(note keep all 240V cords and charger protected from weather and further than 4m away from pool water). AC charger is normally warm when working. If Daisy Power unit is non-responsive, do the following checks: Is the unit responsive? ie. Is there any partial movement, humming, clicks –... - Page 12 Register online now at daisypoolcovers.com.au We rarely get a warranty claim but just in case anything goes wrong we’re here to help you. All Daisy products come with a pro-rata warranty which covers the purchaser for defective materials or workmanship on a pro-rata basis.
