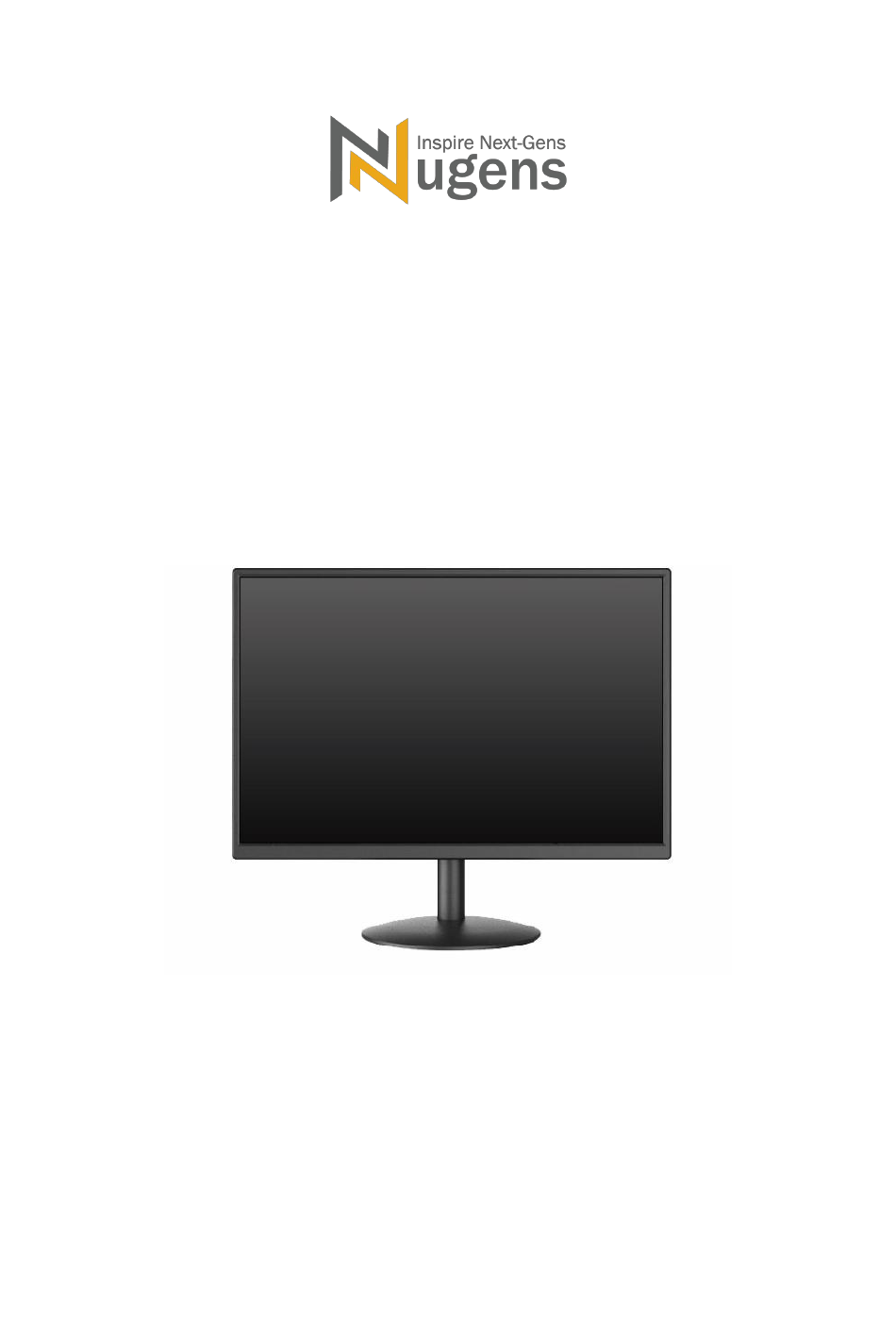

- Page 1 Quick Installation Guide ND-24E 23.8” 1080P LED Monitor...
- Page 2 1. Introduction Package Contents 1. LED Monitor x1 2. Power Cable x 1 3. Power Transformers x 1 4. HDMI Cable x 1 5. Monitor Stand x 1 6. Quick Installation Guide x 1 1-2 Overview Bottom Side HDMI Insert HDMI cable to this port (*Note 1) Insert VGA cable to this port (*Note 1) AUDIO 3.5mm Audio Port...
-
Page 3: Parameter Setting
1-3 Parameter Setting 1-3-1 Menu Menu Function Setting Brightness: 0-100 Contrast: 0-100 Mode: Standard, Movie, Game, Internet DCR: On/Off Overdrive: On/Off HDR: On/Off H. Position: 0-100 V.Position: 0-100 Clock: 0-100 Phase: 0-100 Image Ration: wide, 4:3 Color Temp: Normal, Warm, User, sRGB, Cool, Red: 0-100 Green: 0-100... - Page 4 Language: Multi-Country H.Position: 0-100 V.Position: 0-100 Timeout: 5-100 Transparent: 0-100 Auto Configure (Press to enter auto configure) Auto Color (Press to enter auto color) Reset Black Level: 0-100 Input Select: HDMI, VGA Mute: On/Off Volume: 0-100...
-
Page 5: Specification
1-3-2 Resolution Recommend user to choose one kind of the following schemes: Horizontal scan Frame frequency Resolution frequency (KHz) (Hz) 640*350 31.467 (+) 70.082 (-) 720*400 31.467 (-) 70.082 (+) 640*480 31.467 (-) 59.487 (-) 640*480 31.467 (-) 72.809 (-) 640*480 31.467 (-) 75.000 (-) -
Page 6: Safety Instructions
Power consumption (Standby) 0.5W 2. Instructions Thank you for purchasing the ND-24E 23.8” 1080P LED Monitor. This product equips with three cables earth-type plug, this plug only can adapt to earth-type outlet, this is a function of taking security into account, if... -
Page 7: Troubleshooting
Do not exert pressure on the LCD screen, because the LCD screen is very exquisite and fragile. Must use the Power Supply provided by the original factory, to avoid causing the products to be damaged. Please pull out the Power adapter cable of this product in the ... - Page 8 Official website: https://www.nugenstech.com Email: sales@nugenstech.com...
