KE2 WiFi Service Tool
Quick Start Guide
The KE2 WiFi Service Tool should only be connected to individual or groups of KE2 Evaporator Efficiency Controller(s) with their
factory programmed IP address(es). They must also only be connected to the Refrigeration Network and should not be con-
nected to a controller or group of controllers integrated into the customer's existing network. The existence of multiple DHCP
Servers can result in temporary network disruption.

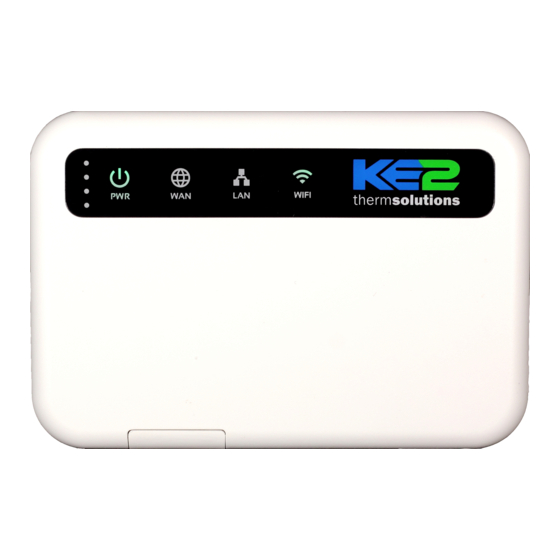

The KE2 WiFi Service Tool is the simplest,
most cost effective, way to access the
KE2 Evaporator Efficiency's Graphical
User Interface (GUI) or webpages of the
KE2 Evaporator Efficiency (KE2 Evap)
controller. When connected to the KE2
Evap, the service tool creates nearly in-
stant wireless access to the webpages
on the controller.
Users may connect their cellphones,
tablets, or laptop computers to the un-
secured wireless network.
Using the RJ-45 cable (included with the
KE2 WiFi Service Tool), connect the KE2
WiFi Service Tool to the KE2 Evaporator
Efficiency controller.
1
Using the power switch, turn ON the
device.
2
Pressing the battery indicator shows
the current charge held by the device.
3
The device must be set to AP mode
to operate. The Router and 3G mode
have been disabled.
© Copyright 2013 KE2 Therm Solutions, Inc., Washington, Missouri 63090
(pn 20906)
TM
thermsolutions
KE2 EvaporatorEfficiency
ENTER
BACK
1
Q.5.26 August 2013
