QUICK START GUIDE
MODEL: AP6-Pro

Advertisement

loading
Need help?

Need help?

Do you have a question about the AP6-Pro and is the answer not in the manual?

Questions and answers

Summary of Contents for ALTA LABS AP6-Pro

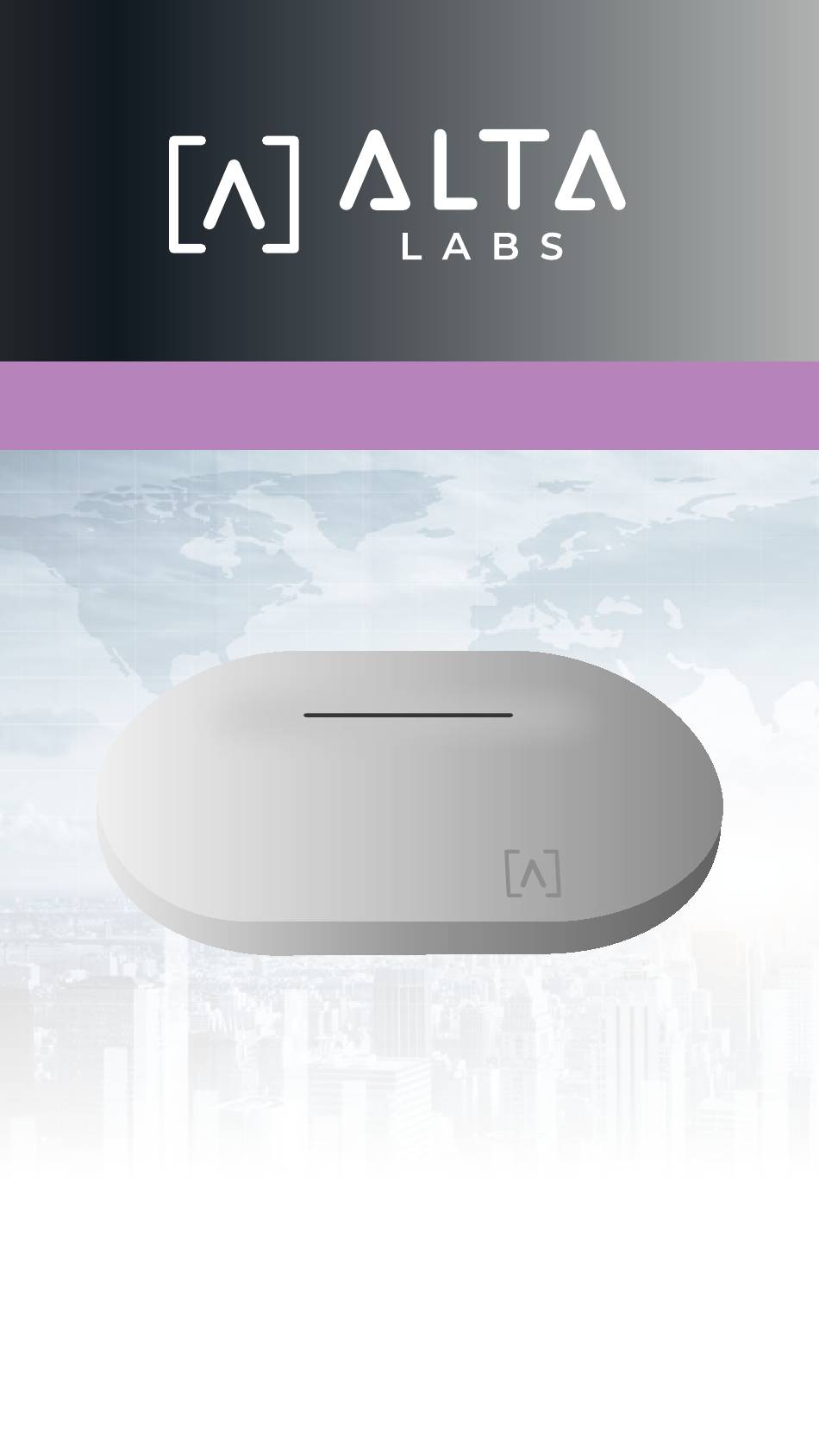

  • Page 1 QUICK START GUIDE MODEL: AP6-Pro...
  • Page 2 Before You Begin If you have not already created an account, visit manage.alta.inc to create your free Alta Control™ account. manage.alta.inc Be sure to also download the Alta Control app on your mobile device.
  • Page 3: Package Contents

    Package Contents AP6-Pro Mounting Plate Ceiling Mount Anchors Wall-Mount Ceiling Tile (Qty. 2) Screws (Qty. 2) Screws (Qty. 2) T-Bar Screws Nuts Rubber Feet Installation Requirements • CAT 5/6 Ethernet Cabling • 24V PoE+ Switch or PoE Injector • Phillips Screwdriver...
  • Page 4: Hardware Overview

    Hardware Overview Front Logo Indicator Logo Indicator If you need to remove the AP from the mount, use a flat blade screwdriver to disengage the Mounting Plate here. LED Illuminates white by default when AP is online and functional. Can be changed to blue or off in the Alta Control software.
  • Page 5 Back Reset Button Ethernet Port Reset Button Press down for 10 seconds until the LED begins flashing to reset the AP6-Pro to factory defaults. Ethernet Port Connects to an Ethernet cable from your PoE+ Switch. An optional 48V, 0.5A adapter can be purchased and used to power...
  • Page 6: Hardware Installation

    Hardware Installation Ceiling Tile Mount 1. Remove the appropriate ceiling tile. 2. Align the Mounting Plate in the desired location flat on the tile (typically centered). Mark the areas indicated below for the screws and the Ethernet cable.
  • Page 7 3. Secure the Mounting Plate to the Ceiling Mount with the ceiling tile between using the two Ceiling Tile Screws and the two Nuts. Assembled Top View Assembled Bottom View Proceed to “Connecting The AP6-Pro” on page 13...
  • Page 8 Wall Mount 1. Position the Mounting Plate in the desired location and use a pencil to mark the holes. 2. If running cabling along the wall, remove the notch on the AP6-Pro.
  • Page 9 Wall-Mount Screws and a Phillips screwdriver. If mounting on drywall, use the anchors to ensure secure mounting. Use a 6 mm drill bit to drill the holes for the anchors and insert them in the wall. Proceed to “Connecting The AP6-Pro” on page 13...
  • Page 10 T-Bar Ceiling TIle Mount 1. Use a small Phillips head screwdriver to loosen the two pre-installed screws on the Ceiling Mount to allow enough clearance for the T-Bar.
  • Page 11 2. Rotate the Ceiling Mount around the T-Bar.
  • Page 12 3. Tighten both screws using a Phillips screwdriver.
  • Page 13 4. Connect the Mounting Plate to the Ceiling Mount with the T-Bar Screws. Proceed to “Connecting The AP6-Pro” on page 13...
  • Page 14 Connecting The AP6-Pro The AP6-Pro is powered over Ethernet, it can be powered by a PoE+ Switch or using an optional 48V, 0.5A PoE Injector. 1. Connect an Ethernet cable from your PoE+ Switch (or optional PoE Injector). 2. Connect the other end to the Ethernet Port on the AP6-Pro.
  • Page 15 3. Align the AP6-Pro with the Mounting Plate and slide the AP6-Pro until it locks into place.
  • Page 16 Adding Device in Alta Control 1. Follow the instructions in the Alta Control web interface or mobile app to set up your access point. Home Base New AP bcb923123426 Set Up Disconnecting the AP6 If you need to remove the AP from the mount, use a flat blade screwdriver to disengage the Mounting Plate at the logo indicator.
  • Page 17: Specifications

    Specifications Model: AP6-Pro 190mm (7.5") x 125mm (4.9") Dimensions 32mm (1.25") Weight 0.4 kg (0.9 lbs) Ceiling/Wall: Polycarbonate Mount Material Drop Ceiling: Steel Weatherproofing IP54 Network Interface Ethernet, WiFi, Bluetooth Management Interface (1) GbE RJ45 Port Button(s) Reset/Factory Reset Blue, White...
  • Page 18 Compliance Federal Communication Commission Interference Statement This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 19 FCC Radiation Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. CAN ICES-003(B) / NMB-003(B) This device contains licence-exempt transmitter(s)/ receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s).
  • Page 20 The Country Code Selection feature is disabled for products marketed in the US/Canada. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. Pour les produits disponibles aux États-Unis / Canada du marché, seul le canal 1 à...
  • Page 21 Support support@alta.inc https://help.alta.inc All specifications are subject to change without notice. Alta Labs products are sold with a limited warranty: soundvisiontech.com/warranty © 2023 Soundvision Technologies. All rights reserved. Alta Labs and Alta Control are trademarks of Soundvision Technologies.
