Weelko Gentle 4128 Manual

Foot spa chair
Hide thumbs

Advertisement

Quick Links

Download this manual
Gentle 4128
Wellness & Spa
Foot SPA chair
Weelko has a new SPA pedicure armchair: Gentle. A comfortable and elegant Wellness & Spa armchair
which will stand out in your centre for its charming personality. Its white colour, comfort, shape and
movements will provide a unique experience to your customers. They will be taken to the next level!
This elegant and modern chair is furnished with high-quality white PU upholstery. It is equipped with 2
motors that control the inclination of the backrest and the back and forth stroke of the seat by means of a
button panel built in the armrest. The backrest is also equipped with a very comfortable cushion that can
be raised or lowered. Its pivoting armrests allow easy access to the chair. Whirlpool foot-SPA basin with
shower and LED lights. Manually height-adjustable footrest.
Its pivoting armrests ensure ease of access for the client. This pedicure armchair also provides a basin
made of high-quality acrylic with spa function for extra comfort. When connected to the water supply, it
gives the option of working with hot and cold water and to empty the basin after each treatment. Adjust the
position of the chair if necessary to welcome every new client... and relax!

Advertisement

loading
Need help?

Need help?

Do you have a question about the Gentle 4128 and is the answer not in the manual?

Questions and answers

Summary of Contents for Weelko Gentle 4128

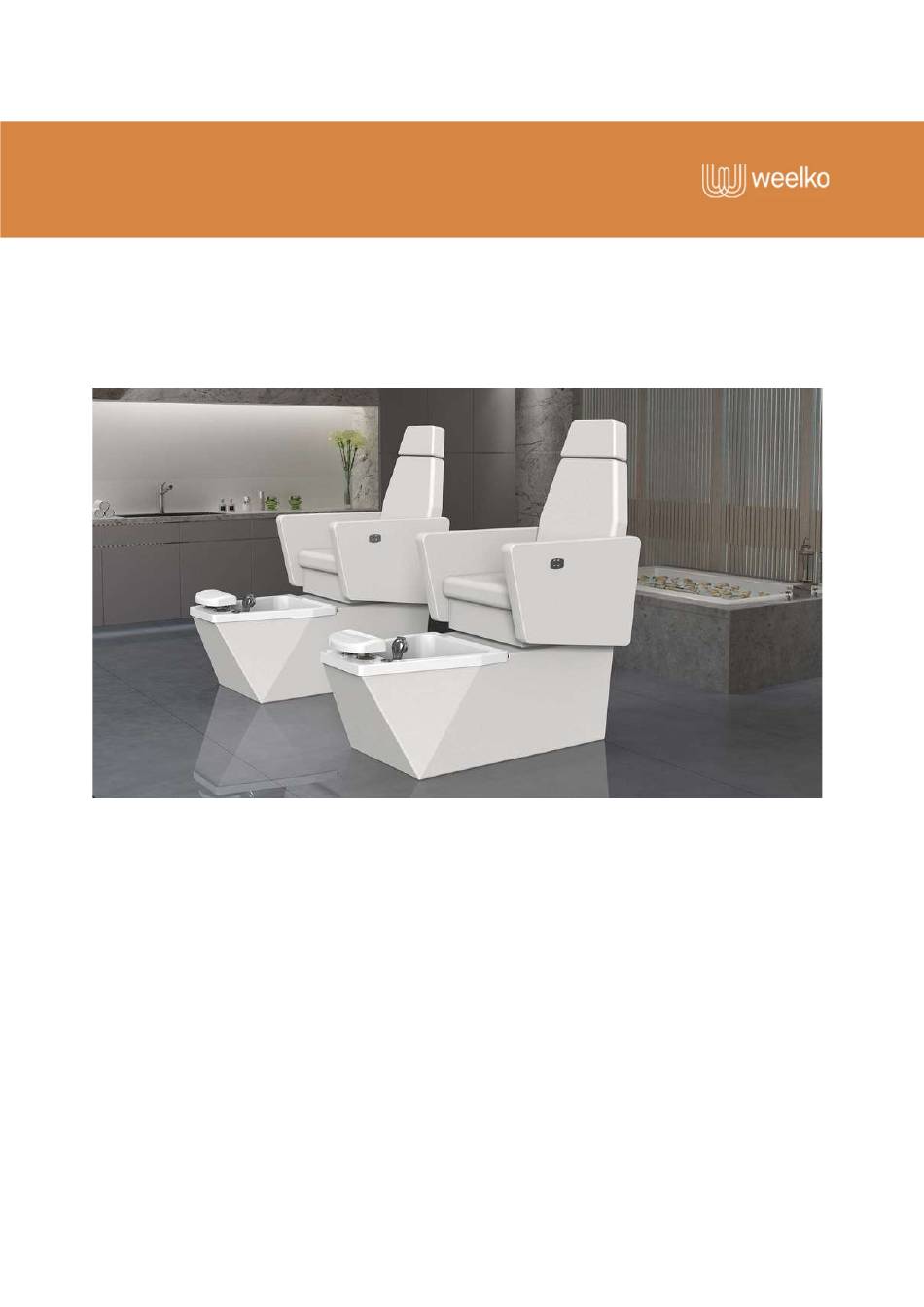

  • Page 1 Wellness & Spa Foot SPA chair Weelko has a new SPA pedicure armchair: Gentle. A comfortable and elegant Wellness & Spa armchair which will stand out in your centre for its charming personality. Its white colour, comfort, shape and movements will provide a unique experience to your customers. They will be taken to the next level! This elegant and modern chair is furnished with high-quality white PU upholstery.

  • Page 2: Installation

    Gentle 4128 Foot SPA chair Installation This product is packed in a box with the following weight and dimensions: 130 x 79 x 97 cm / G.W. kg 77,5 kg / N.W. kg 66,5 kg. Installation and assembly instructions can be found below: •...
  • Page 3 Gentle 4128 Foot SPA chair Installation • Install the motor shaft and fix the screw Hot and cold water inlet Water outlet Power cord plug Water inlet diameter: External 21 mm Internal 15 mm Water outlet diameter: External 47 mm...

  • Page 4: General Indications

    Gentle 4128 Foot SPA chair General indications: Seat slide backward Backrest up Seat slide forward Backrest down Shower SPA function on/off button Hot and cold water on/off Drainage...

  • Page 5: Technical Sheet

    Gentle 4128 Foot SPA chair Technical sheet: Voltage and frequency Working power Max. loading weight Max. water inlet pressure (Pa) Packing size...
  • Page 6 Gentle 4128 Foot SPA chair Technical parameters: Adjusting the footrest: • The footrest height is adjustable in 6 fixed positions. Each position is separated by 10 mm. Max. 60 mm can be adjusted. • Adjusting procedure: First, pull the footrest to the maximum height. Then...

  • Page 7: Technical Parameters

    Gentle 4128 Foot SPA chair Technical parameters: Maintenance: • After each treatment, use only a neutral solution to clean the seat, the metal parts or other parts. Disinfectant solutions such as alcohol, alkaline or acid solutions must not be used to avoid shortening the life span of the chair.
  • Page 8 Cautions: • Do not stand up on the chair. • Do not allow children to play with the chair and keep it out of their reach. • Adjust the backrest at its highest position when you finish using it. • Do not place or use this product in places where works, repairs or painting are being carried out.
  • Page 9 Cautions: • Read this manual carefully before installing, using and adjusting this product. Save it on a convenient location. • This equipment must be used by an experienced person who is familiar with the structure of the product and its functioning. •...
  • Page 10 Cautions: • When adjusting each section, please keep your hands, feet and head away from the points shown below. Troubleshooting: Abnormal sound: Insufficient lubrication of the rotating parts, axis or joints. Apply some lubricating oil to fix the problem. Basin waste leak: Wear and tear on the drain sealing ring. Replace it with a new one.
  • Page 11 Details:...
  • Page 12 Details: Yubitzay Avila Customer Training T. +34 93 824 9020 y.avila@weelko.com S. Yubitzay Avila Weelko Barcelona S. L. Pol. Ind. La Valldan Camí de Garreta, 92 08600 Berga Barcelona – Spain T. +34 93 824 9020 info@weelko.com www.weelko.com...
