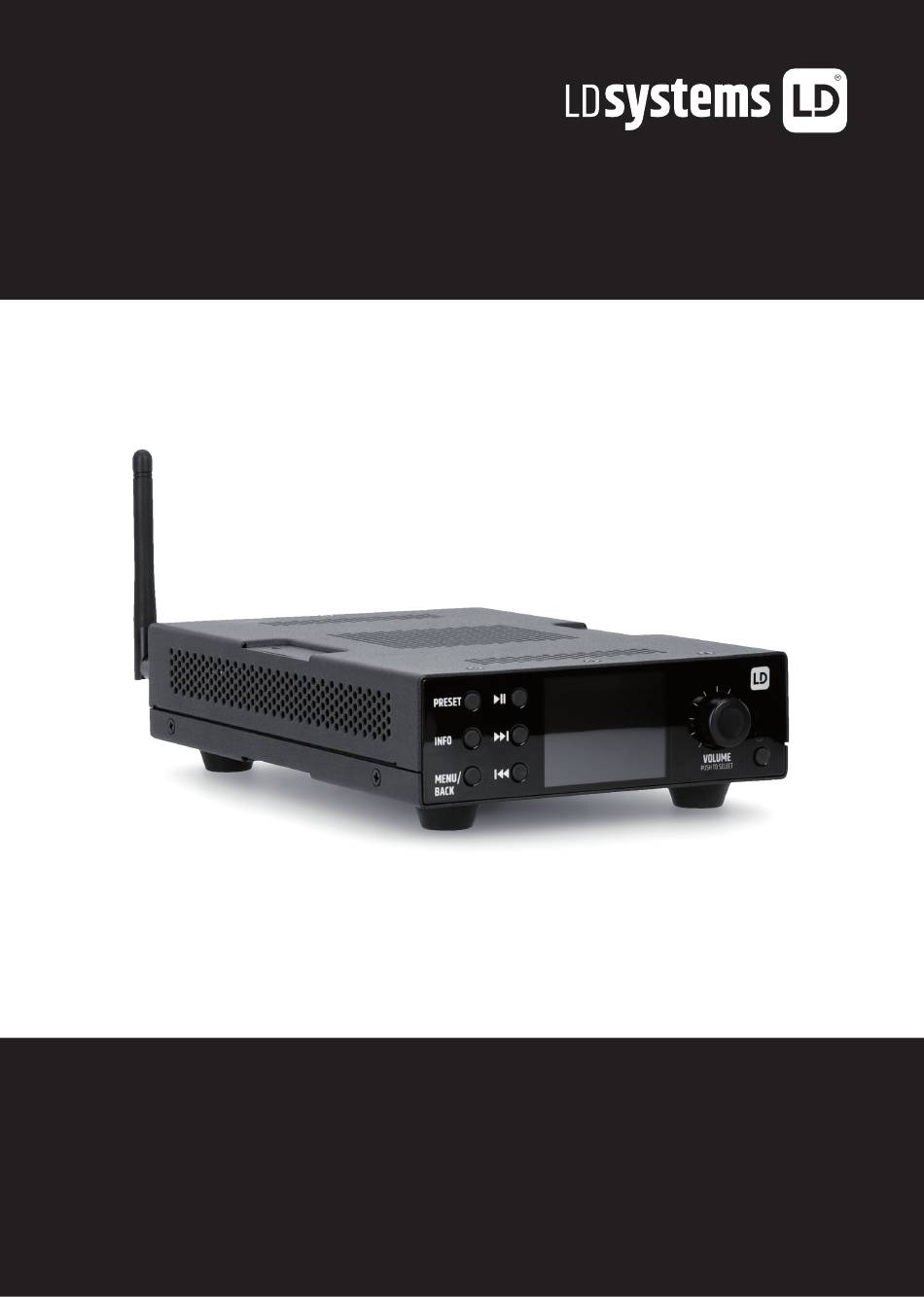

- Page 1 USER'S MANUAL ENGLISH RSMP RADIO STREAMER MEDIA PLAYER LDRSMP...
-
Page 2: Table Of Contents
CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ / CONTENUTO 1. INTRODUCTION 5.3.2 AUTO-UPDATE 1.1 FEATURES (FROM DAB, FM OR NETWORK)(WIZARD) 5.3.3 SET FORMAT (WIZARD) 1.2 PACKAGING CONTENT 1.3 EXTERNAL RESOURCES 5.3.4 SET TIMEZONE 5.3.5 DAYLIGHT SAVINGS 2. CONNECTIONS, CONTROLS AND INDICATORS 5.4 INACTIVE STANDBY 2.1 SCREENS 5.5 LANGUAGE... - Page 3 8. SPOTIFY 14. BLUETOOTH 8.1 CONTROL FROM RSMP 14.1 TO PAIR A BLUETOOTH DEVICE WITH THE RSMP AUDIO SYSTEM 8.2 INFO 8.3 INFO MESSAGES 14.2 TO SWITCH TO ANOTHER PAIRED BLUETOOTH DEVICE 9 AMAZON MUSIC 14.3 CONTROL FROM RSMP 9.1 LOG IN FROM RSMP 14.4 BLUETOOTH CONNECTION DETAILS 9.2 CONTROL FROM RSMP 15.
- Page 4 YOU‘VE MADE THE RIGHT CHOICE! We have designed this product to operate reliably over many years. LD Systems stands for this with its name and many years of experience as a manufacturer of high-quality audio products. Please read this User‘s Manual carefully, so that you can begin making optimum use of your LD Systems product quickly.
- Page 5 SAFETY INSTRUCTIONS DANGER: 1. Do not open or modify the device. 2. If your device no longer functions properly, if liquids or objects have entered the inside of the device, or if the device has been damaged in any other way, switch it off immediately and disconnect it from the power supply. This device may only be repaired by authorized specialists.
- Page 6 CAUTION: 1. Do not install or operate the unit near any radiators, heat registers, stoves, or other sources of heat. Always ensure that the device is installed in such a way that it is sufficiently cooled and cannot overheat. 2. Do not place ignition sources such as lighted candles near the unit. 3.
-
Page 7: Introduction
ATTENTION: 1. When inserting batteries and rechargeable batteries, ensure that the polarity is correct (see illustrations in the battery compartment or on the housing). 2. Do not use different cell types and battery brands in the same unit at the same time. 3. -
Page 8: External Resources
1.3 EXTERNAL RESOURCES To operate RSMP, the following external resources are needed: y A power source (100-240 V mains supply) y A wired (Ethernet) or wireless (Wi-Fi) network (provided through a router) with appropriate permissions and passphrase if necessary. Note: When using a wired (Ethernet) connection a shielded twisted pair (S/FTP) cable must be used. Dependent on the operating mode the following resources may also be required: y Broadband Internet access (for Internet radio and Spotify mode and Internet Software Update) y An iOS or Android device (for using control apps) - Page 9 BUTTON STANDBY / ON With this button, RSMP is put into standby mode or turned on. The illuminated power symbol indicates the unit status. Symbol flashes white: Start-up process Symbol lights up permanently white: Ready for operation Symbol flashes red: System is turning into standby mode Symbol lights up permanently red: Standby mode INFRARED SENSOR Infrared sensor for control via IR remote control.
-
Page 10: Screens
2.1 SCREENS The screen shows various menus, dialogues and displays, as described below. There are basically six types of screen: y Standby screen y Splash screen y Now playing y Dialogue y Error/Information y Menu Where there is more text than can be fitted onto a screen, the text automatically scrolls right to left after a brief pause. Europ The Standby screen remains normally in black, but it shows information about any active alarm times. -
Page 11: Getting Started/Setup
7 8 9 . f g h i m n o p Menu Screens – for details of menu screens see under Section 4.3 Menu navigation Network Main menu Internet radio Podcasts Europe Spotify Finland Amazon Music France Deezer Germany Music player Gibraltar Internet radio... -
Page 12: On Your Computer
Note: While configuring the RSMP unit it is recommended that your computer is disconnected from all other networks (both wired and wireless). In Device Setup mode RSMP is set to act as a micro Access Point (μAP) and broadcasts its own network name (SSID): RSMP_xx:xx:xx:xx:xx:xx Where xx:xx:xx:xx:xx:xx matches the third of four available RSMP module MAC addresses –... -
Page 13: Embedded Web
3.3 EMBEDDED WEB PAGES Once RSMP is connected to your network a web page is available to view status information, log incident reports, manage presets and make limited changes via a web browser, run on a Smart device or PC, connected to your network. To connect to the web page enter the RSMP unit’s IP address into your web browser. -
Page 14: Report Tab
3.3.3 REPORT TAB This tab allows users to store and view incident reports. The reports are generated by using the Create button on the Report tab. Reports contain the following information: y System information (SW version, platform details, etc.) y System log y System Graphs (Audio, CPU, Memory, Network) y Task Information. - Page 15 Key: Network s Main menu Internet radio 09:30 Search Connected Internet radio Classic Rock 1 2 3 Podcasts 7 8 9 . 1 2 3 Spotify Not speci ed To exit the menu system, press MENU/BACK. 7 8 9 . Amazon Music To move from the Mode menu back to the „Now playing screen“, press MENU/BACK f g h i...
-
Page 16: Text Entry
Internet radio Last listened > Search Station list > Location System settings > Popular Main menu > Discover Podcasts Last listened > Podcast list > Search System settings > Location Main menu > Discover Spotify System settings > Main menu > Amazon Music System settings >... -
Page 17: Presets
4.5 PRESETS There are up to 40 presets each for, Internet radio/Podcasts (combined), DAB and FM modes Up to 10 presets are available for Spotify, and 8 presets for Amazon Music. Presets are stored in the radio and cannot be accessed from other radios. To store the current audio source as a preset, press and hold PRESET until the display shows the Save preset screen. -
Page 18: Network Wizard
> France Asia > Germany Europe > Gibraltar North Am > Greece Oceania 09:30 16:00 To connect RSMP to your network, you need one of the following: y A wired router and an Ethernet (RJ45 network) cable. Croatia Europe Locatio Station >... -
Page 19: Wps Setup (Wi-Fi Protected Setup)
Internet radio Rock Rad Podcasts Rock ‘n‘ R Podcasts Rock ‘n‘ R Please wait Spotify Classic Ro Please wait Spotify Classic Ro Connecting.. Amazon Music Prog Roc Connecting.. Amazon Music Prog Roc Deezer Deezer Music player 5.2.2 WPS SETUP (WI-FI PROTECTED SETUP) Music player WPS encrypted networks are identified by ‘[WPS]’... -
Page 20: Network Profile
Europe Location Europe Location > > Finland Africa > > Finland Africa > > France Asia > > France Asia > > Germany Europe > > Germany Europe > > Gibraltar North America > > 5.2.6 NETWORK PROFILE Gibraltar North America >... -
Page 21: Inactive Standby
5.4 INACTIVE STANDBY Standby is automatically activated after the preset time if no input is made within this period. Set Timeout to „Off“, „2 hours“, „4 hours“, „5 hours“ or „6 hours“. 5.5 LANGUAGE The default language is English. To change, select MENU/BACK > System settings > Language > then select your language. 5.6 FACTORY RESET A factory reset resets all user settings to default values, so time/date, network configuration and presets are lost. -
Page 22: Internet Radio Mode
6. INTERNET RADIO MODE RSMP can play thousands of radio stations and podcasts from around the world through a broadband Internet connection. When you select Internet radio mode, RSMP contacts the Frontier Smart Technologies Internet radio portal to get a list of stations, organised into different categories like Country, and Popular. -
Page 23: Location
Update from Network 7 8 9 . _ - @ No update a b c d e C A N C E L f g h i j k l m n o p q r s Network settings Main menu Search Bluetooth Select a broadcast from the list. -
Page 24: Podcasts Menu
Note: If the Podcast portal server is unavailable, RSMP defaults to the last listened Playable URL for Podcasts, or the URL stored in a preset if playing from a preset The Common local controls for sound volume, Mute (Volume 0), Play/Pause and Presets are available. 7.1 PODCASTS MENU y Last listened y Podcast list... -
Page 25: Spotify
8. SPOTIFY RSMP is compatible with Spotify allowing a RSMP unit to act as a wireless receiver controlled by the Spotify App. Use your phone, tablet or computer as a remote control for Spotify. Go to spotify.com/connect to learn how. Note: Ensure RSMP has the Keep Network Connected option turned On, see section 5.2.8 Keep network connected. -
Page 26: Access The Relevant Streaming Service Menu
Start now? [WPS] WLAN 5GHz 08 - 03 - 2022 [WPS] Hotspot 11: 30 [WPS] WLAN 1 radio [Rescan] Europe Location [Wired] 9.3.1 ACCESS THE RELEVANT STREAMING SERVICE MENU > > Finland Africa If no track is currently playing the service menu is displayed automatically. To access the service menu from the ‘Now Playing screen press the Key: Auto update >... -
Page 27: Repeat/Shuffle
11.3 REPEAT/SHUFFLE You can repeat tracks or play them in random order by selecting Repeat play „On“ / „Off“ and Shuffle play „On“ / „Off“. 11.4 NOW PLAYING INFORMATION Europe Location While a track is playing, the screen shows its file name. There is also a progress bar with figures for elapsed and total track time. At the bottom >... -
Page 28: Now Playing Information
Europe Location > > Finland Africa > > France Asia > > Germany Europe > > Gibraltar North America 12.3 NOW PLAYING INFORMATION > > Greece Oceania While the stream is playing, the screen shows its name and DLS (Dynamic Label Segment) information broadcast by the station giving real-time 09:30 16:00 information such as programme name, track title and contact details. -
Page 29: Settings
Classic Rock [WPS] WLAN-Box Start now? [WPS] WLAN 5GHz 08 - 03 - 2022 Not speci ed 11: 30 [WPS] Hotspot [WPS] WLAN 1 radio [Rescan] 13.4 SETTINGS [Wired] Scan settings Key: Auto update 09:30 By default, FM scans stop at any available station. This may result in a poor signal-to-noise ratio(hiss) from weak stations. To change the scan settings to stop only at stations with good signal strength, select Scan setting >... -
Page 30: Sleep
15.1 SLEEP To set the sleep timer, select MENU/BACK > Main menu > Sleep and select from the sleep time options (Sleep OFF, 15 MINS, 30 MINS, 45 MINS or 60 MINS). Once you select a sleep period, the system returns to the main menu. -
Page 31: Cabling Example
Preset list Press for Preset recall menu. Press and hold for Preset save menu on the current audio mode. Select a preset with , confirm with . Back with MENU Press to enter the menu of the current audio mode. Press again to show Now Playing screen. -
Page 32: Under / On-Table Mounting
18. UNDER / ON-TABLE MOUNTING There are two recesses on the top and bottom of the enclosure, each with two M3 threaded holes, for mounting underneath or on top of the table. Screw the two enclosed mounting plates to the top or bottom side using the enclosed M3 countersunk screws. Now the amplifier can be fixed in the desired position (see illustration, fixing screws not included). -
Page 33: Troubleshooting And Error Messages
20. TROUBLESHOOTING AND ERROR MESSAGES 20.1 ERROR MESSAGES Message Description Example Failed to connect Correct key entered, but router rejects request MAC filtering enabled on router Format error Cannot recognize file format − independent of network Received .MP3, but found that the stream wasn’t MP3 when trying to decode Network error Problem past router − incorrect data being received from... -
Page 34: Technical Data
22. TECHNICAL DATA Item number LDRSMP Product type Installation Media Player source Audio modes USB Player (.mp3), Audio Streaming services, Internet Radio, DAB/DAB+, FM Radio, Bluetooth Audio Receiver Line outputs 1 Balanced stereo Cooling system Convection cooling USB Player Media Formats .mp3 Audio Streaming Media Formats... -
Page 35: Disposal
Item number LDRSMP Rack Unit /mounting 1 RU – 1/3 19“ Weight 0,9 kg Operating Temperature 0°C – 40°C Operating Humidity (non condensing) < 85% Included Accesories External power supply with interchangeable plugs, Mounting plates for surface mount applications, IR Remote control, FM/DAB antenna, Wifi antenna 23. -
Page 36: Manufacturer´s Declarations
24. MANUFACTURER´S DECLARATIONS MANUFACTURER‘S WARRANTY & LIMITATIONS OF LIABILITY Adam Hall GmbH, Adam-Hall-Str. 1, D-61267 Neu Anspach / E-mail Info@adamhall.com / +49 (0)6081 / 9419-0. Our current warranty conditions and limitation of liability can be found at: https://cdn-shop.adamhall.com/media/pdf/MANUFACTURERS-DECLARATIONS_LD_SYSTEMS.pdf Contact your sales partner for service. UKCA- CONFORMITY Hereby, Adam Hall Ltd. - Page 38 LD-SYSTEMS.COM Adam Hall GmbH | Adam-Hall-Str. 1 | 61267 Neu-Anspach | Germany Phone: +49 6081 9419-0 | adamhall.com Adam Hall Ltd. | The Seedbed Business Centre | SS3 9QY Essex | UK REV: 04...
