OPERATOR'S MANUAL

To load for transportation

1. Load the fuel caddy onto a trailer or truck bed and place in horizontal position ONLY (valve and cap up). DO NOT place inside a
vehicle trunk or inside the passenger compartment.
2. Secure the container with proper restraining devices to prevent movement in all directions. Proper restraining devices include
tie-down straps, cables or chains that are in good condition and strong enough to withstand the forces that may be
encountered during transportation. There should not be any sharp edges in contact with the plastic tank. The restraining devices
may be wrapped around the tank body in the grooved ribs, around the molded handle, or around the axle. DO NOT attach
restraining devices to the ball valve, hose fittings, or fill cap.
3. It is the vehicle operator's responsibility to comply with all federal, state, and local regulations for the transportation of fuel,
and including the use of placards where required.

Storage

Once the container has been first used, all statements below apply, whether the container is empty, full or partially full.
1. It is the user's responsibility to review and comply with all local and state building and fire codes regarding allowed quantity of
fuel that may be stored and the approved storage locations.
2. Keep out of reach of children.
3. Store in well-ventilated area.
4. Keep away from flame, pilot lights, stoves, heaters, electric motors and other sources of ignition.
5. DO NOT store inside a residence, living space or basement.
6. DO NOT store in an attached garage that is connected to residence or dwelling.
7. DO NOT store in vehicle passenger compartment or vehicle trunk.
8. DO NOT store in direct sunlight.
Item Description Qty Part No.
1 Tank - 25 Gallon 1 N/A
2 Adapter O-Ring Groove 1 14GC-05
3 O-Ring 1 9464K39
4 1/2" NPT Swivel 90° Elbow 1 1501-8-8
5 1/2" NPT M x F Ball Valve 1 BV-1/2NPTMF
6 Dispensing Hose 1 80-593-14
7 Dispensing Nozzle 1 JL-5116-1
Wheels 10.0 x 3.0 Pneumatic with 5/8"
8 2 P1030-20S-R
Bearing
9 Flat Washer 5/8" ID Zinc Plated 4 FRWSAW062
10 Axle Caps 5/8" ID Zinc Plated 1 14174
11 Fill Cap 1 201594
6
7
4.
40549/42859 FUEL CADDY
11 1
3
2
4
5
10

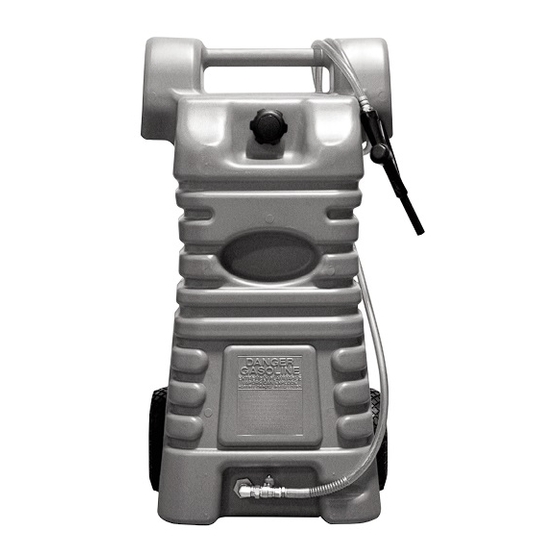

25-GALLON FUEL CADDY
For replacement parts
and technical questions,
please call
1-800-222-5381.
WARRANTY
1-year limited warranty
9
8
9
Distributed by
Northern Tool + Equipment Co., Inc.
Burnsville, Minnesota 55306
NorthernTool.com
Made in U.S.A.
(UN/DOT Approved)
Operator's Manual
REV10/13
