DL4500-EDH+/EDH-485 RSLINX Quick Start
This document assumes that the DL4500-EDH+/EDH-485 (now referred to as DL4500)
hardware has been installed and configured as referred to in the DL4500-EDH+/EDH-
485 Hardware Quick Start document.
This quick start is to help you get started with your DL4500 using RSLINX.

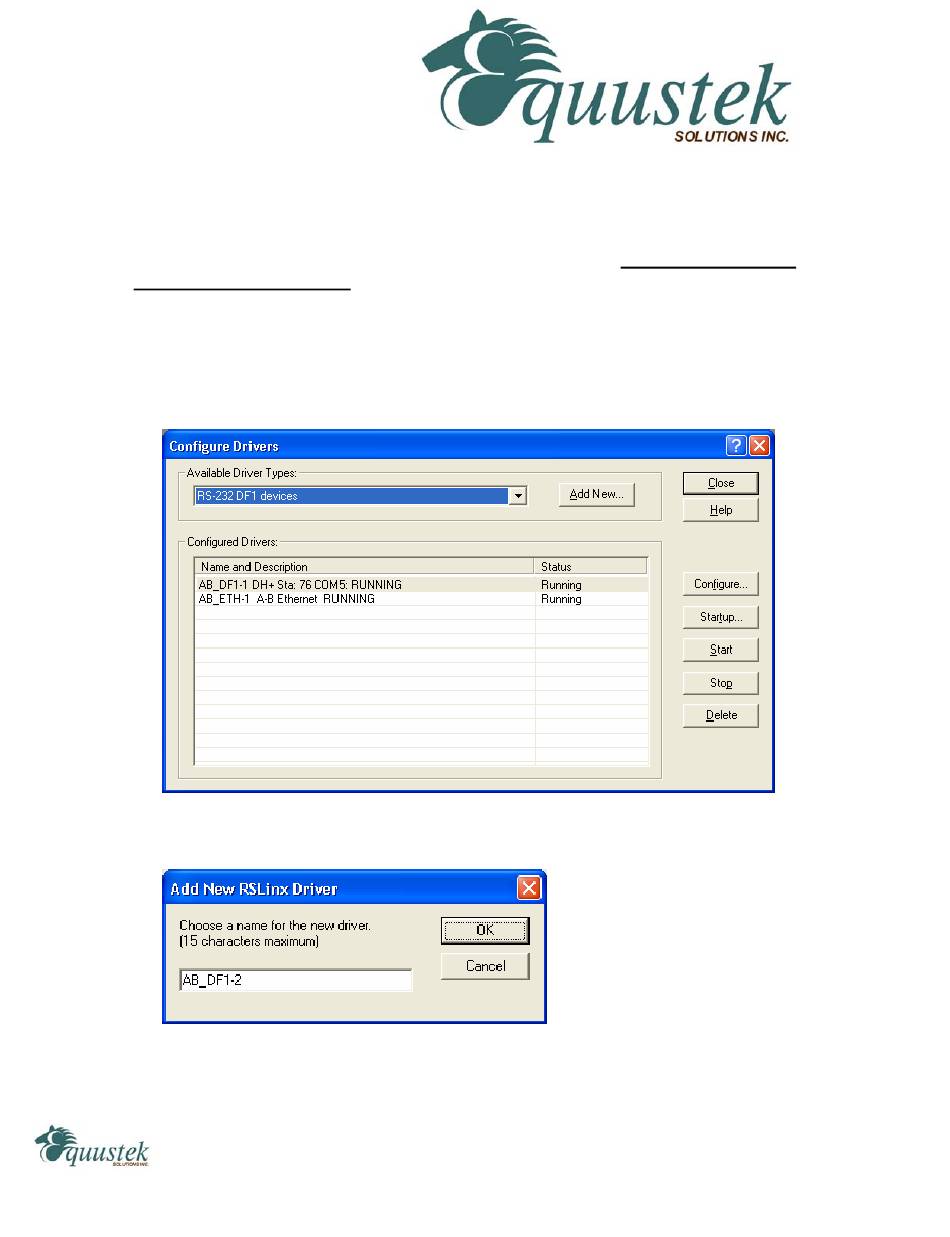

1. Start RSLINX
2. Select Configure Drivers
3. Choose RS-232 DF1 Devices from the Available Driver Types
4. Click on Add New
5. Type in a name for the driver or use the default
6. Click OK
#815-1200 W73rd Ave, Vancouver, BC, V6P6G5, Canada
Phone: 888-387-3787 or 604-266-8547
www.equustek.com
Advertisement
Table of Contents
Summary of Contents for Equustek DL4500-EDH+
- Page 1 3. Choose RS-232 DF1 Devices from the Available Driver Types 4. Click on Add New 5. Type in a name for the driver or use the default 6. Click OK #815-1200 W73rd Ave, Vancouver, BC, V6P6G5, Canada Phone: 888-387-3787 or 604-266-8547 www.equustek.com...
- Page 2 7. Select the Comm Port that has been configured in your Redirector software as the Virtual Com Port for the IP address of the DL4500. 8. Select 1770-KF2 device for the DL4500-EDH+ or 1770-KF3 for the DL4500-EDH-485 #815-1200 W73rd Ave, Vancouver, BC, V6P6G5, Canada Phone: 888-387-3787 or 604-266-8547 www.equustek.com...
- Page 3 11. Ensure Parity None, 1 Stop Bit, BCC Error Checking, and Full Duplex Protocol 12. Click OK. The RSLINX Driver is now configured. RSWHO should show all the nodes on your DH+ or DH-485 network. #815-1200 W73rd Ave, Vancouver, BC, V6P6G5, Canada Phone: 888-387-3787 or 604-266-8547 www.equustek.com...
