Wood Porch Swing
Identify all parts packed in the carton against the parts list. Remove all protective
materials. Place parts on a non-abrasive surface. If you are missing any parts or
Are unsure how to proceed with assembly, please call customer service center
Immediately at 844-836-4055 (Monday-Friday, 9: 00 am-5:00pm CST) or e-mail:
support@donglinusa.net
Do not attempt to assemble the product if any parts are missing or damaged .
A
Swing Back
B
Swing Seat
C
Left Armrest
D
Right Armrest
E
Support Pannel
F
Chains
PART LIST
1
AA
M8x55mm Bolt
1
BB
Washer
1
CC
Nut
1
DD
M4x45mm Screw
2
EE
Hex Wrench
2

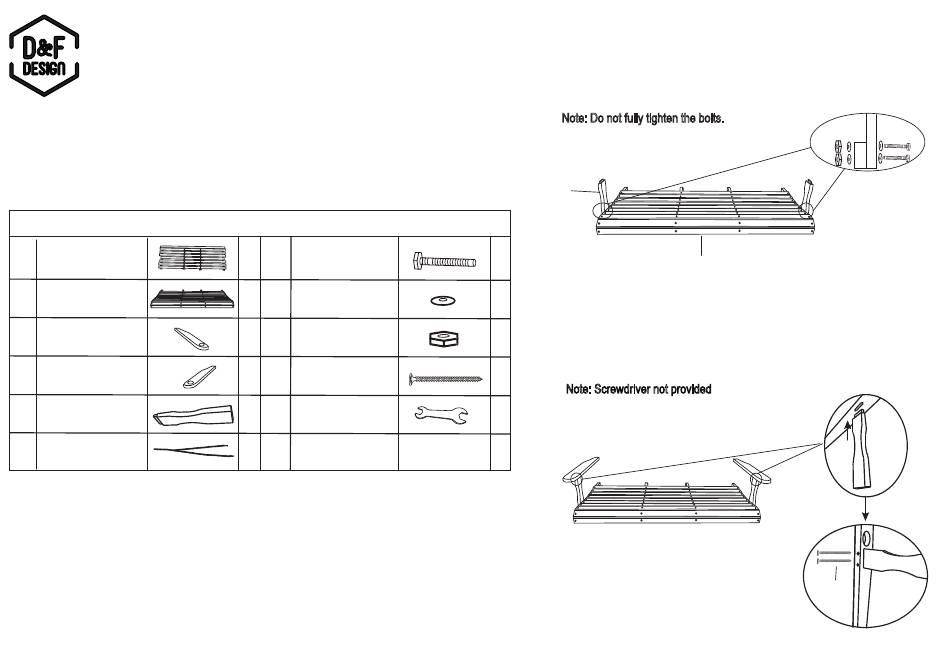

Step 1
Place the chair seat (B) on a flat, soft surface.Attach support pannels (E) to the
chair seat (B) by using M8 bolts (AA), washer (BB) and nut (CC) through each
hole of the support pannels (E) into the chair seat (B).
Note: Do not fully tighten the bolts.
E
8
16
Step 2
Insert support pannel into(E) the groove on the left armrest(C). Attach the left
8
armrest(C) to support pannel (E) by using screws (EE) through each hole of the
left armrest into support panel (E).
Repeat the instructions for the right armrest (D).
4
Note: Screwdriver not provided
1
- 1 -
CC
BB
B
C
E
DD
AA
BB
