Helpful Tips:
1. Everything should be built using no tools.
2. You will have extra parts, those are spares.

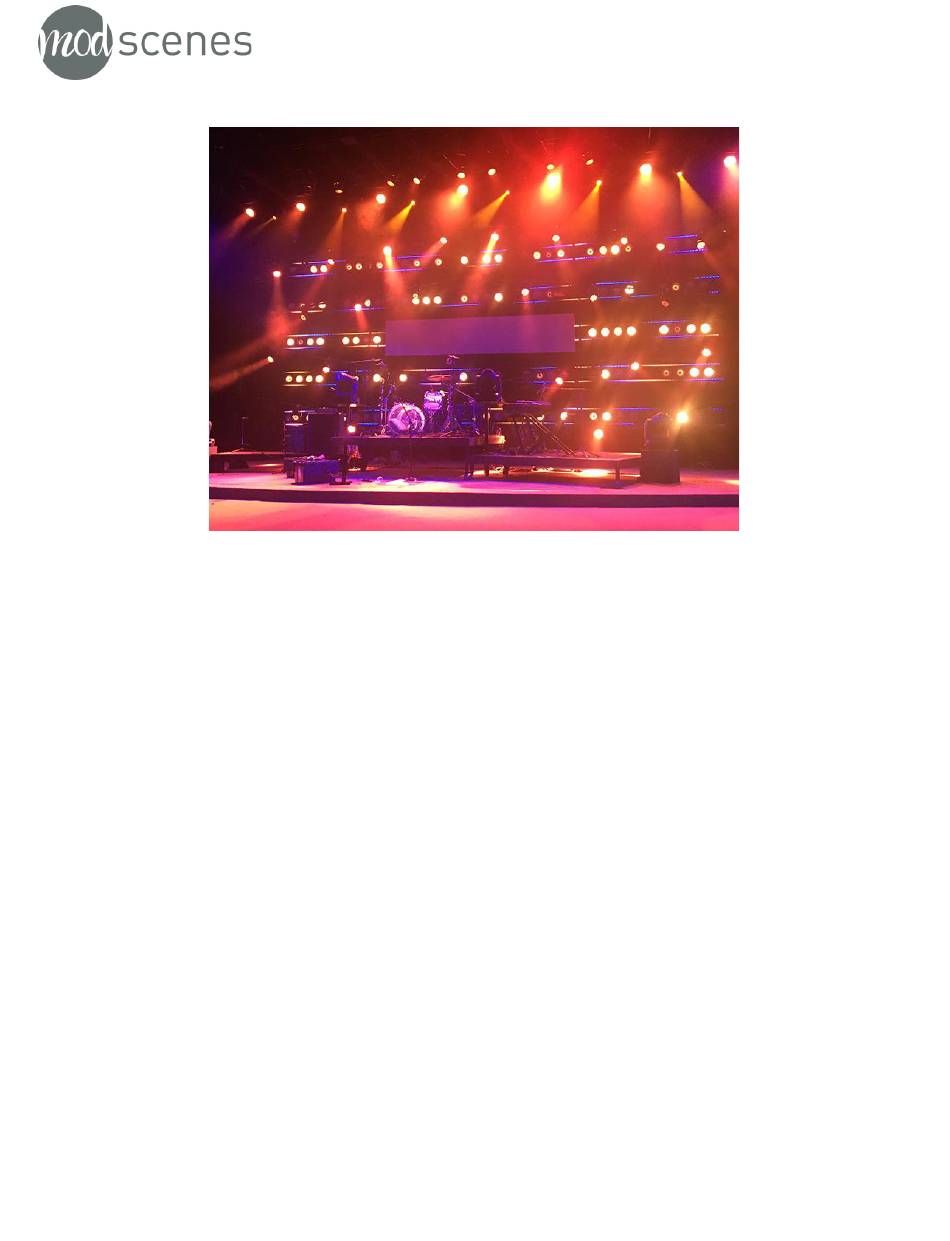

3. Looking for ideas on how to build a unique stage set with your Mod Scenes? Check out
Modscenes.com/creations.
Contents:
Each 4-bar blinder contains the following;
1 – Blinder Frame
4 – Blinder Reflectors
4 – Lamp Sockets
1 – Bolt Package (with 9 bolts and 9 wingnuts)
10 – Zip Ties
5 – Mirror Lamps (optional add on)
1 – 15' Extension Looms (optional add on)
4-Bar Blinder Build Instructions
Page 1 of 4
Advertisement
Summary of Contents for Mod Scenes 4-Bar Blinder
- Page 1 Helpful Tips: 1. Everything should be built using no tools. 2. You will have extra parts, those are spares. 3. Looking for ideas on how to build a unique stage set with your Mod Scenes? Check out Modscenes.com/creations. Contents: Each 4-bar blinder contains the following;...
- Page 2 4-Bar Blinder Build Instructions Step 1: Unpack the blinder frame and hardware. Step 2: Attach your 4 reflectors to your blinder using the provided bolts and wingnuts. (Continued) Page 2 of 4...
- Page 3 4-Bar Blinder Build Instructions Step 3: Attach your blinder sockets to your blinder reflectors by screwing the socket into the reflector. Step 4: Zip tie cables to each other on the back of the blinders to create a clean look.
- Page 4 4-Bar Blinder Build Instructions Step 5: Insert the lamps into your blinders Step 6: Use the blinder extensions to reach your dimmers. Step 9: Enjoy your finished product. If you have any questions or issues, let Steven know, (530) 723-6421 or email steven@modscenes.com...
