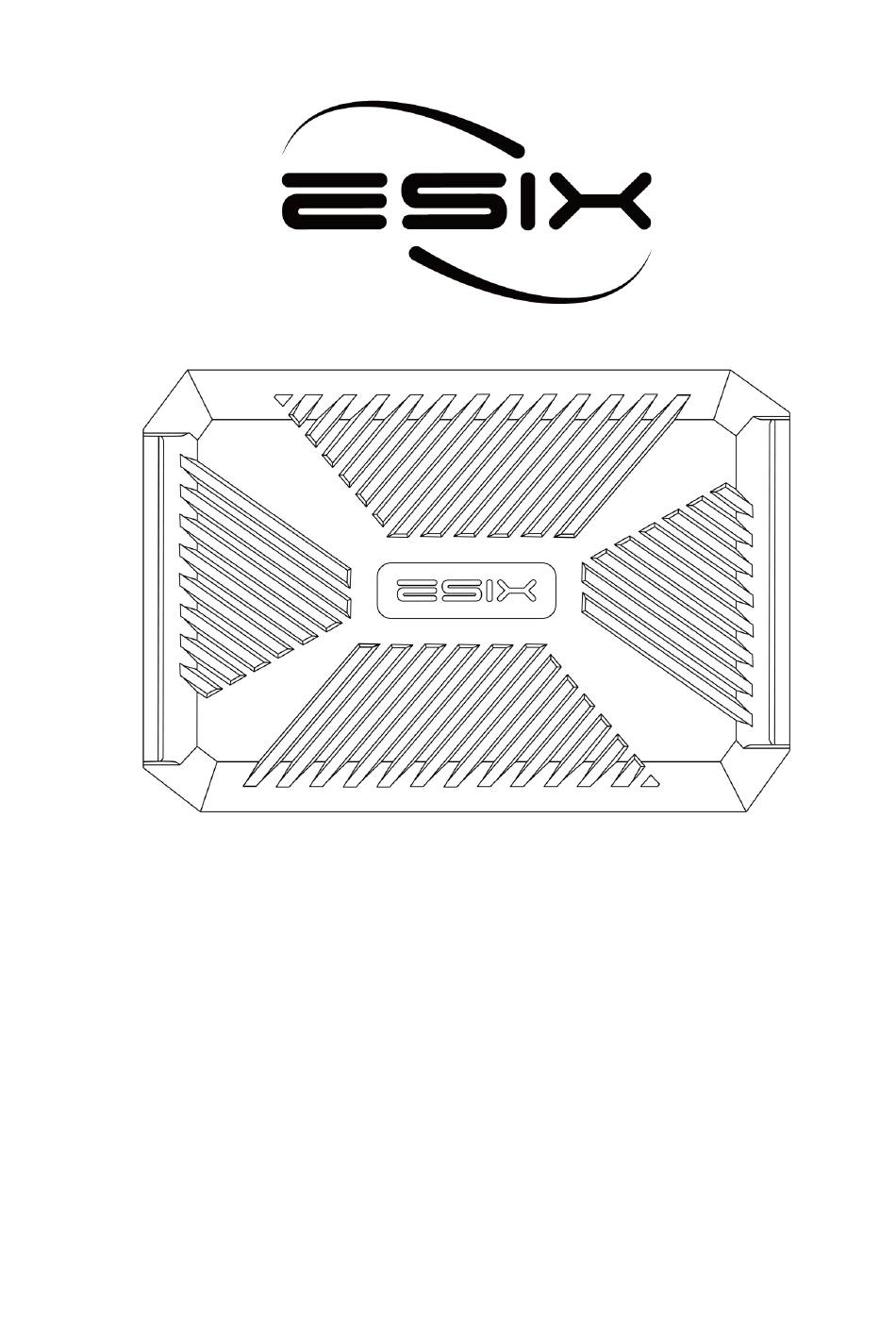

  • Page 1 Xatellite IoT Wireless 4G/5G Router User Manual V1.04...
  • Page 2: Table Of Contents

    Table of Content CHAPTER 1 INTRODUCTION 1.1 Specification 1.2 Packaging Items 1.3 Product description of Xatellite IoT (Front) 1.4 Product description of Xatellite IoT (Back) 1.5 Product description of Xatellite IoT (Sided) 1.6 Product features CHAPTER 2 NETWORK CONFIGURATION 2.1 Default AP 2.2 Default IP...
  • Page 3: Chapter 1 Introduction

    CHAPTER 1 INTRODUCTION 1.1 Specification Xatellite IoT 12 ~ 24VDC, 2A Operation Voltage 2.0 A (maximum) Operation Current Operation Temperature -10 ~70°C Max. 98% Humidity 192x133x33mm Dimension (LxWxH) Weight 0.98 Kg AC/DC Adaptor Input Voltage AC 100~240V, 50/60Hz Input Current 0.7 A (typical)
  • Page 4: Product Description Of Xatellite Iot (Front)

    1.3 Product description of Xatellite IoT (Front) Factory Restore Button - Press this button more than 5 seconds will restore factory default configuration and FTY RST whole system reboot according - Press this button will reboot whole system SIM1 Micro SIM slot 1 (not included) (4G SIM card only)
  • Page 5: Product Description Of Xatellite Iot (Back)

    1.4 Product description of Xatellite IoT (Back) 4 LAN 10/100/1000Mbps ports The factory default setting is WAN 10/100/1000Mbps. It can be configurable to WAN/LAN LAN port if necessary This is a spared 4G antenna BNC jack for the 4G modem if an additional 5G Spared Antenna BNC modem is installed (dual-modems) will run out of sided antenna jacks.
  • Page 6: Product Features

    1.6 Product features MOBILE Number of Modules 2, support for “Two 4G(LTE)” or “One 5G with One 4G(LTE) “ Number of SIM 2, Full Size SIM slots Configuration Support for Modem Manager (default), USB net, QMI or PPP WIRELESS WiFi Radio Specification Wi-Fi 5 dual radio, 5 GHz 2x2 MIMO and 2.4 GHz 2x2 MIMO WiFi security Support for WPA2, WPA3, WPA2/WPA3 Enterprise...
  • Page 7: Chapter 2 Network Configuration

    CHAPTER 2 NETWORK CONFIGURATION 2.1 Default AP SSID: XLite_XXXX_2.4G & XLite_XXXX_5G 2.2 Default IP Default: 192.168.1.1 WiFi/LAN: via DHCP sever WAN: acquired IP address by DHCP client 2.3 Default User User: root Password: admin 2.4 Typical Network Topology...
  • Page 8: Chapter 3 Speed Test

    CHAPTER 3 SPEED TEST 3.1 WiFi 5G Parameters Station mode(STA) AP mode unit Channel Width Link speed Mbps Security WPA2 Test Speed (peak) Mbits/sec 3.2 WiFi 2.4G Parameters Station mode(STA) AP mode unit Channel Width Link speed Mbps Security WPA2 Test Speed (peak) Mbits/sec 3.3 WireGuard...
  • Page 9: Modem Speed Test

    3.4 4G Modem Speed Test ISP: China Telecom Modem: 4G, EC20 3.5 5G Modem Speed Test ISP: China Unicom Modem: 5G, RM500U...
  • Page 10: Chapter 4 Advanced Setting

    CHAPTER 4 ADVANCED SETTING 4.1 Login to web user interface 1. Get access to Web User Interface either via WiFi or LAN. For the first time access, you will see the security warning if you are using Google Chrome Browser: Please click “Advanced”...
  • Page 11 and just click “Proceed to 192.168.1.1 (unsafe)” or type “thisisunsafe”, then you will see Please type the default password “admin” and then click “Login” button to login...
  • Page 12 Once login, you will see the device status of “Overview” For security concern, please go to “System → Administration” and change the password immediately...
  • Page 13: Web-Console

    4.2 WEB-CONSOLE The web-console can be accessed to offer you full control of this device if you are confidence to do so. You will experience the above display or no display or warning and cannot access the web console under the web administration page. It is normal for serving a SSL enabled website. Please open a new tab and type “https://192.168.1.1:7681”.
  • Page 14 You will see this warning showed up Please click “Advanced” button Then confirmation message is appeared...
  • Page 15 and just click “Proceed to 192.168.1.1 (unsafe)” or type “thisisunsafe”,. Web console screen turns up. You will see the following message if you login successfully: Now, you can go back to the Web Console and refresh the page:...
  • Page 16: Upgrade Firmware

    4.3 Upgrade firmware 1. Login to Web User Interface, go to “System” → “Backup/Flash Firmware” click on the “Flash Image” button...
  • Page 17 2. Select firmware file to upload: Click “Browse” to select the downloaded firmware binary file to upload to the router After firmware verify, It should show something like this: Then click “Upload” button to upload the file...
  • Page 18 3. Once the firmware binary file has uploaded, NOTE: You could retain the current configurations by checking “Keep settings and retain the current configuration” Click “Continue” button to proceed upgrade You will see this warning: !!! DO NOT TURN OFF THE POWER DURING FIRMWARE UPGRADE!!! OTHERWISE, IT COULD DAMAGE THE KERNEL IMAGE! YOU HAVE TO PROCEED REPAIR UPGRADE VIA U-BOOT TFTP PROCEDURES!!! IT’S COMPLICATED BE PATIENT! It takes several minutes to upgrade!
  • Page 19 4. Minutes later, your browser should restore and show this login screen...
  • Page 20: Rs485/Modbus

    Xatellite IoT offers bi-directional way to transmit I/O data between Modbus RTU and Modbus TCP. The below is a typical deployment for Xatellite IoT as the Modbus Gateway. That is a TCP-client (or server) which acts as a RTU-master to get data from Modbus RTU-slave devices.
  • Page 21 Before setting up the gateway, Xatellite IoT provides you an open-source Modbus tool, called “mbpoll”. You could login to Web console (or ssh), under the command line: mbpoll -a 1 -b 19200 -P none -l 2000 -t 4 -r 4112 -c 2 /dev/ttyS1...
  • Page 22 1. Please go to “Service → RS485/Modbus”, You could enable the gateway accordingly. For example, connecting to an Electromagnetic flow meter: Serial Device: /dev/ttyS1 Baud rate: 9600 Parity: NONE Stop bits: CAUTION: You might switch ON or OFF the integrated termination resistor (120Ω)
  • Page 23: Chapter 5 Wireguard Remote Management Configuration

    PublicKey = <Xatellite-IoT-publicley> AllowedIPs= 10.0.0.2/32 WireGuard VPN can be used in Remote Management of Xatellite IoT. The Xatellite IoT will establish a WireGuard VPN connection to the WireGuard server spontaneously when it starts. User can manipulate the configuration of Xatellite IoT remotely once the tunnel is established.
  • Page 24: Xatellite Iot Wireguard Vpn Terminal Configuration

    5.2 Xatellite IoT WireGuard VPN Terminal Configuration 1. Go to “Network → Interface”, click “Add new interface” 2. Then type the new interface: Name: wg0 Protocol: WireGuard VPN and click “Create interface”...
  • Page 25 Set user metric...
  • Page 26 Add new interface to Firewall setting,Go to “Network →Firewall”, click “Add”...
  • Page 27 Set the new firewall interface as following Assign the WireGuard interface to the firewall interface, go to “Network →Interfaces”, click “Edit” in WireGuard interface, click “Firewall Settings”...
