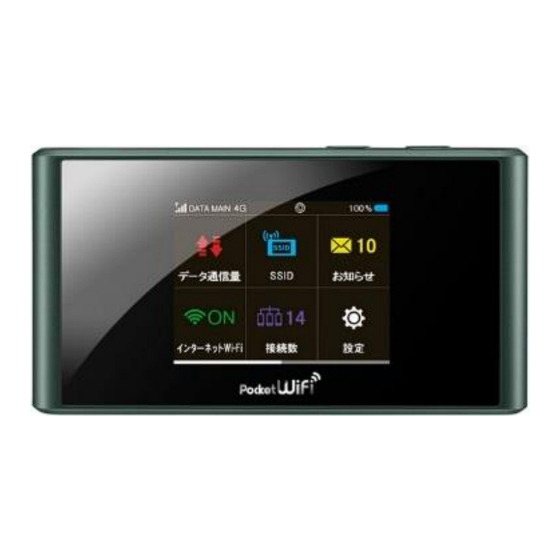

303ZT（WiFi Router）
External Battery
(Optional accessory)
The micro-UBS cable may or may not be removable from the AC adaptor.
In the case of multiple orders, multiple accessories can be provided.
The shapes and colors of the accessories may differ from those seen in the photos.
Thank you for choosing Our Service.
This is the user manual for your device. Please read this manual carefully as it contains information on how to
operate your device. If you run into any problems during your rental period, please feel free to contact us with
the information below.
Please Note:
[Air Travel] Luggage regulations
Some airports may regulate the number of lithium batteries carried by passengers (often no more than 2).
Also, please place any batteries within your carry-on baggage.
[Settings] User settings
Please make sure you turn off any data roaming functions.
iPhone (iOS7 and later)
Android(Android 4.0 and later)
[Use] When using the device
1. Please do not turn on the device outside of the applied country(s).
Additional fees may be charged if the user connects from a country not listed within the agreement.
2. Please refrain from over-using the mobile router. Under general fair use policy (fair use of telecommunication devices), users
may be subject to slow-downs or disconnects if internet abuse has been detected.
Some cases may also result in additional fines.
3. Turn off the auto communication functions on your device(s)
The following functions may utilize large amount of data through auto communication.
Please set these functions to Off before traveling.
iPhone (iOS) --- iCloud Photo Steaming, Android --- Auto Update, Windows --- Windows Update
User Manual（303ZT）
Micro-USB cable
Thank You!
1. Settings -> 2. Cellular Data -> 3. Off
1. Settings -> 2. Other Settings (Other Networks) ->
3. Mobile network settings ->4. Data roaming -> 5. Off
WiFi Rental Customer Support Center
TEL : ＋81-50-5533-8264 E-mail : info@ninjawifi.com
[Business Hours 10:00am-7:00pm(JST)]
AC adaptor
Triple Adaptor
(Complimentary accessory)
*Comes free when ordering
other optional services.
Advertisement
Summary of Contents for GLOBAL WIFI NINJA WIFI 303ZT
- Page 1 User Manual（303ZT） 303ZT（WiFi Router） AC adaptor Micro-USB cable Triple Adaptor External Battery (Complimentary accessory) (Optional accessory) *Comes free when ordering other optional services. The micro-UBS cable may or may not be removable from the AC adaptor. In the case of multiple orders, multiple accessories can be provided. The shapes and colors of the accessories may differ from those seen in the photos.
-
Page 2: Troubleshooting
Troubleshooting Carrier GlobalWiFi User ① Unable to connect to the Internet. Please check whether or not the icons (globe icon/arrow/4G LTE/3G H, etc.) are being displayed. Missing icons may be caused by being in an area with weak signal. <Areas with weak signal> ・... -
Page 3: Router Overview
Router Overview ①Display ②Power button ③Lock button Bottom ⑤SIM card slot ④Charging port Name Description ① Display Status display. Controllable by touchscreen. ② Power button Slide to power on/off. ③ Lock button Turn on/turn off the display screen. ④ Charging port Please plug the supplied cable in to this port for charging. - Page 4 Internet Wi-Fi (mobile network) Signal strength (mobile) Initiating connection Connecting Connected carrier name Connected Connection type (4G/3G) Not connected Signal out of range Softbank Wi-Fi hotspot Signal strength (hotspot) Battery Amount of charge left (in 10% units) Charging...
- Page 5 How to Connect to Wi-Fi on Android Turn on the WiFi router. Step ② onward will be explaining how to connect from your device. Turn on the device you wish to connect. Select "settings" from the menu. Switch the Wi-Fi button to "ON". ←OFF ←ON After turning on Wi-Fi, your device will search for the list of available networks.
- Page 6 A password is required to connect. Enter the password on the router's label, and select "connect". Once connected, a notice will appear below the SSID. At this point, you should be able to access the Internet.
- Page 7 How to Connect to Wi-Fi on iPhone/iPad (iOS) Turn on the WiFi router. Step ② onward will be explaining how to connect from your device. Turn on the device you wish to connect. Select "settings" from the home menu. Select "Wi-Fi" from the settings menu. ←...
- Page 8 A password is required to connect. Enter the password on the router's label, and select "connect". Once connected, the SSID code will be shown next to "Wi-Fi", followed by a checkmark. At this point, you should be able to access the Internet.
- Page 9 How to Connect to Wi-Fi on Windows PC These instructions are written with the assumption that your device(s) is able to access wireless Internet. In the instance where your device(s) cannot connect to any Wi-Fi hotspots, please contact the maker(s) of your device(s). Turn on the WiFi router.
- Page 10 Please check the SSID code labeled on your Wi-Fi router. On your device, select the network named after the same code. A password is required to connect. Enter the password on the router's label. Select "OK". Select "Next". Select "No" when asked about network sharing.
- Page 11 How to Connect to Wi-Fi on Mac These instructions are written with the assumption that your device(s) is able to access wireless Internet. In the instance where your device(s) cannot connect to any Wi-Fi hotspots, please contact the maker(s) of your device(s). Turn on the WiFi router.
- Page 12 A password is required to connect. Enter the password on the router's label, and select "connect". Once connected, a checkmark will appear to the left of the SSID code. At this point, you should be able to access the Internet.
- Page 13 How to use the external battery We provide two types of external battery: enep and Panasonic QE. The shapes and colors of the batteries may differ from those seen in the photos. The layout on the side of the battery is universal among brands. Please be aware of the adaptor's direction when connecting the UBS-to-micro-USB cable.
- Page 14 LED Signals The LED light will display different colors depends on the situation, the signals are as follow: enep Blue receiving Charging - (※) Charging charges complete delivering Delivering Device off charges charges ※ Certain models of the battery will turn on blue instead of red when charging. ※...
